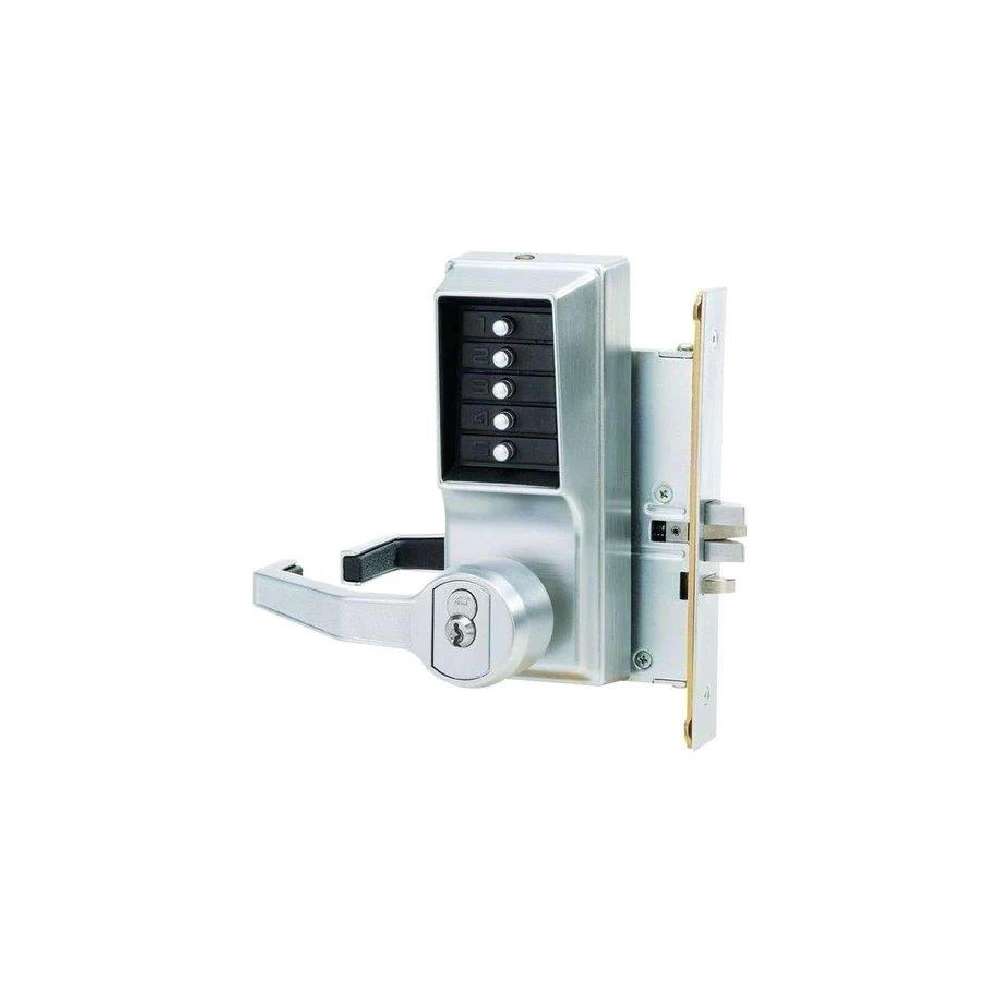

Kaba Simplex Combo Mortise Lock w. Bolt, Corbin IC Prep LHR

SKU # SI/LR8148C-26D

Kaba Simplex Combo Mortise Lock w. Bolt, Corbin IC Prep LHR

Construction: Cast front housing; unified trim plate; fixed ADA—compliant levers
Numeric Keypad: Vandal resistant, solid metal pushbuttons
Backset: 2¾" (70 mm)
Latch: ¾" (19 mm) two-piece anti-friction latch; 1" (25 mm) optional deadbolt
Minimum Stile Recommended: 5" (127 mm)
Strike: 4⅞" (124 mm) L x 1¼" (32 mm) W x ¼" (6 mm) D Deadbolt/Latch mortise strike plate

Key Override

  • Interchangeable Cores: Small format—Best and equivalents (6 or 7-pin length); core not included
  • Removable Cores: Large format—Medeco/ASSA/Yale/Abloy (5 or 6-pin length), Corbin Russwin, Schlage, and Sargent; core not included

Door Preparation: Easily installs on wood or metal doors. Standard (86) mortise preparation
Door Thickness: 1¾" (44 mm) to 2¼" (57 mm)
Accessibility Standard: Americans with Disabilities Act (ADA); fixed ADA-compliant levers
Durability: Weather resistant
Fire Rating: 3-hour UL/ULC fire rating for "A" labeled doors
Warranty: 3-year warranty


Delivery: The Kaba Simplex Combo Mortise Lock w. Bolt, Corbin IC Prep LHR is in stock, please allow 1-2 business weeks' lead time.

US$570.90

Description:

Description:

Kaba Simplex Combo Mortise Lock w. Bolt, Corbin IC Prep LHR

The Simplex LR8148C-26D-41 series of Simplex Pushbutton Lock eliminate problems and costs associated with issuing, controlling and collecting keys and cards. It also provides exterior access by combination, while allowing free egress. Unican Kaba Ilco Simplex is the leader in top of the line security solutions that presents industrial strength combination lock with high quality security products for over 100 years now. For a security lock, the highly weather resistant Simplex 8100 Series earns an impressive Grade 1 rating from ANSI (American National Standards Institute) - this rating is the highest one they give out for quality. The Simplex 8100 grants entry upon successful validation of a 1 to 5 digit code that you pre-program into the lock. Being vandal protected hardware, the Simplex series of PIN based locks find widespread acceptance in high-traffic commercial, institutional, and government buildings throughout the world.
