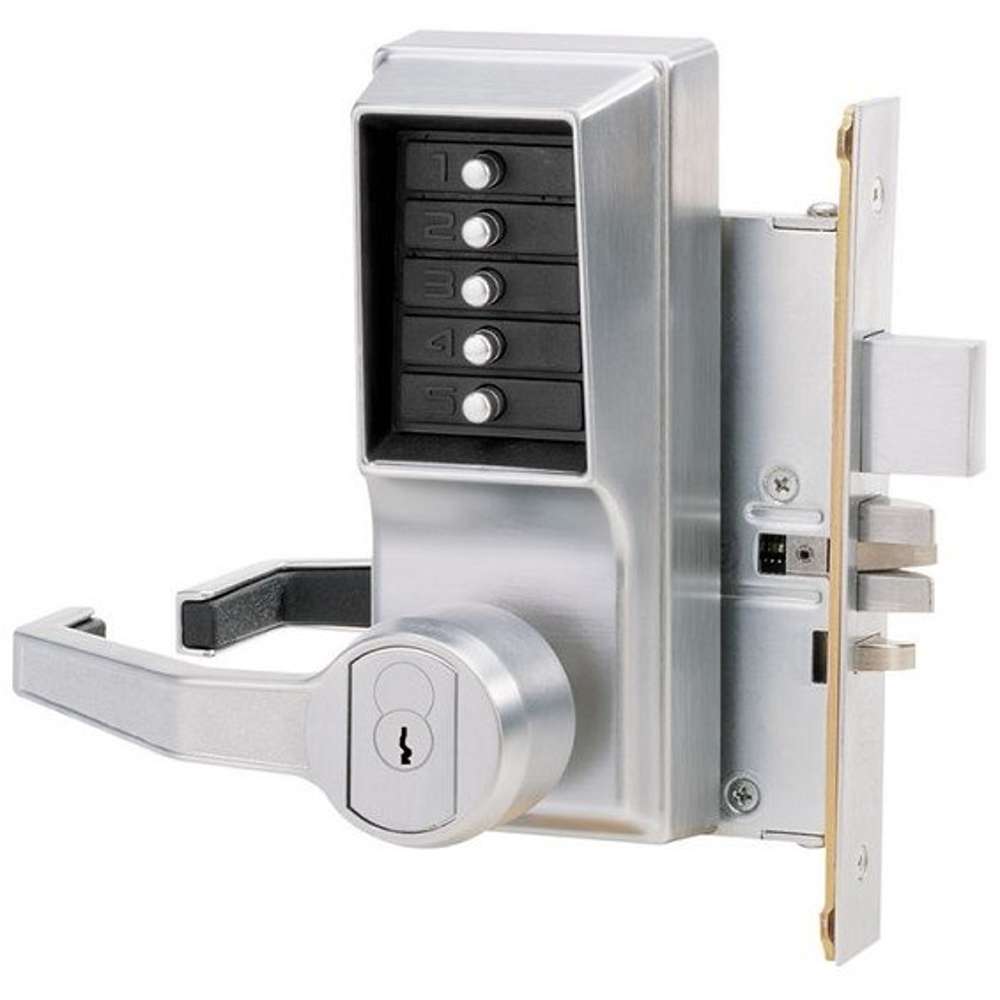

Kaba Access LR8148S-26D-41 Mortise Combination Lever Lock
Construction: Cast front housing; unified trim plate; fixed ADA—compliant levers
Numeric Keypad: Vandal resistant, solid metal pushbuttons
Backset: 2¾" (70 mm)
Latch: ¾" (19 mm) two-piece anti-friction latch; 1" (25 mm) optional deadbolt
- Minimum Stile Recommended: 5" (127 mm)
Strike: 4⅞" (124 mm) L x 1¼" (32 mm) W x ¼" (6 mm) D Deadbolt/Latch mortise strike plate
Key Override
- Interchangeable Cores: Small format—Best and equivalents (6 or 7-pin length); core not included
- Removable Cores: Large format—Medeco/ASSA/Yale/Abloy (5 or 6-pin length), Corbin Russwin, Schlage, and Sargent; core not included
Door Preparation: Easily installs on wood or metal doors. Standard (86) mortise preparation
Door Thickness: 1¾" (44 mm) to 2¼" (57 mm)
Accessibility Standard: Americans with Disabilities Act (ADA); fixed ADA-compliant levers
Durability: Weather resistant
Fire Rating: 3-hour UL/ULC fire rating for "A" labeled doors
Warranty: 3-year warranty
