Securitron Power Supply - 12VDC, 1A

SKU # SO/BPS-12-1

Read Review(s) | Log in to Review

Product Features:

  • Dual output, field selectable 12 or 24VDC via clearly marked toggle switch
  • Supplies 1 full AMP continuous current output, even while charging back-up batteries
  • SPDT AC monitoring output allows for remote monitoring of the power supply's 110VAC input
  • Separate voltage inputs for load and battery allow the batteries to charge at a higher output while the load remains at exactly 12 or 24VDC
  • LED indication (AC and DC) showing power supply status
  • UL Listed low current fire alarm disconnect requires only a minimum size fire alarm relay and wire gauge
  • Polyswitch 2A breaker allows for large short duration inrush current if batteries are installed (approximately 20A for 1 second)
  • Line voltage and DC fuses
  • Sealed lead acid-gel battery charging capability (battery not included)
  • UL Class 2, linear regulated power supply provides the cleanest power available sensitive, active safety and security devices
  • UL Listed
US$221.16

Description:

Description:

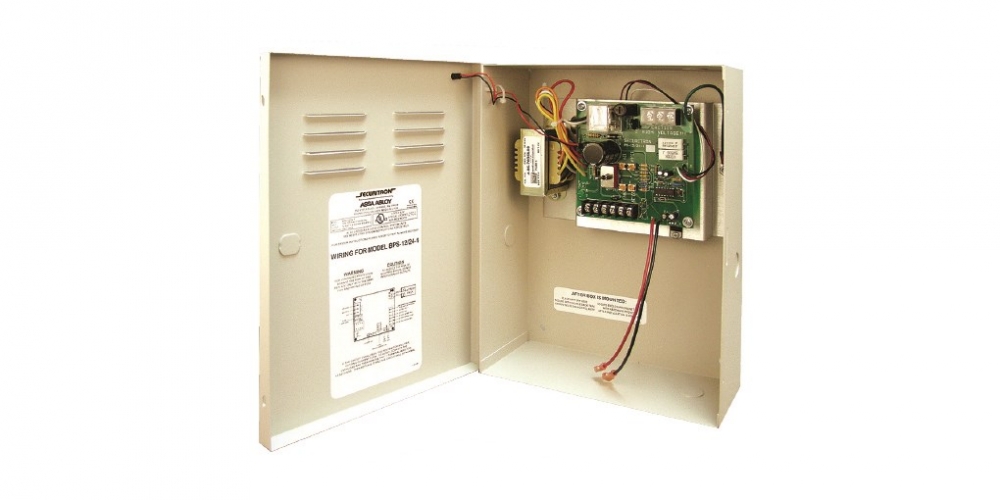

Securitron Power Supply - 12VDC, 1A

The Securitron BPS-12-1 Power Supply is a highly reliable 12VDC power supply that delivers 1 Amp of current. This unit is ideal for powering sensitive electronic components in access control systems, such as electric strikes, maglocks, and card readers. Here are some key features:

  • Linear Technology: Provides clean and stable power output, which is crucial for the proper functioning of sensitive security devices.
  • Battery Backup Capability: The unit includes a built-in battery charging function, allowing for continuous operation during power outages (batteries sold separately).
  • Fire Alarm Interface: Equipped with a fire alarm relay connection, this feature allows for the automatic release of connected devices when the fire alarm is triggered, enhancing safety protocols.
  • Durable Enclosure: Housed in a rugged steel enclosure, the power supply is designed for secure and long-lasting installation.
  • UL Class 2 Listed: Ensures that the power supply meets stringent safety standards, allowing for safe installation without the need for additional conduit.

This power supply is an excellent choice for environments requiring dependable and continuous power for security systems, particularly in commercial settings.
