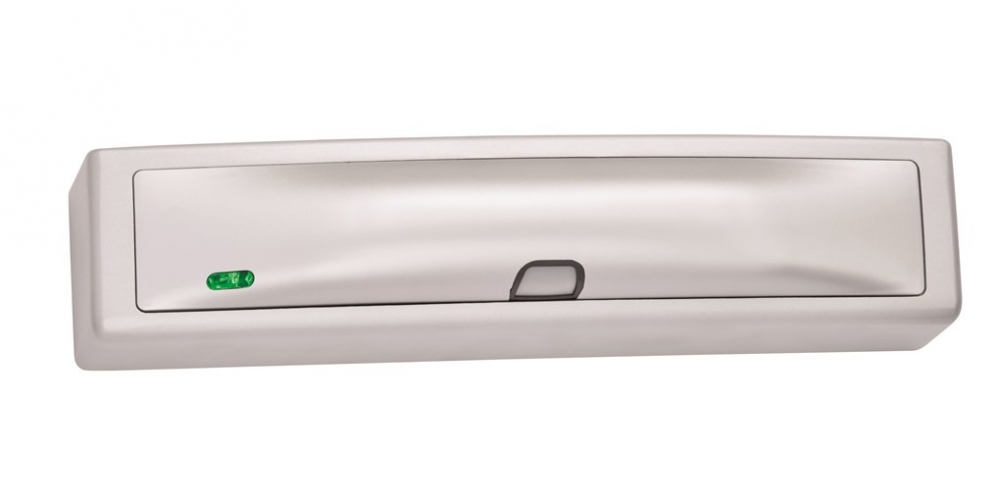

Securitron EcoMag Eco-Friendly Mag Lock with Integrated REX

SKU # SO/M680EBDX

Read Review(s) | Log in to Review

The Securitron M680EBDX EcoMag Eco-Friendly Mag Lock with Integrated REX is a Securitron® M680E EcoMag Sustainable, 1,200 lbs holding force Magnalock®  bracket mounted, sustainable Magnalock.  The same unsurpassed intelligence, style and convenience as the previous M680 series, but with 80% reduction in energy consumption. The Securitron M680E is intelligent, with built-in door prop sensing allowing the magnet to de-energize the coil when the door is held open for extended periods. The Securitron M680EBD offers built-in smart voltage sensing, integrated patented BondSTAT, tamper sensor as well as door position status monitoring. The aesthetics and design finishes of the EcoMag are refined enough for the most discriminating designer openings. It also offers the fastest, easiest, most secure installation of any bracket mount maglock with an updated strike plate mounting template.

Features include:

  • Integrated patented BondSTAT magnetic bond sensor
  • Integrated Door Position Switch (DPS)
  • Integrated passive infrared request to exit
  • Strike plate mounting template provides the easiest install for out-swing doors
  • LED Indicator shows the lock is secure, open, or has an incomplete bond
  • Wire chamber anti-tamper switch
  • Tamper Switch sends an alarm output if the cover is removed and is selectable to NO or NC
  • Autosensing dual voltage with microprocessor technology
  • Adjustable automatic relock timer (0 to 30 seconds)
  • Energy efficient, low power usage
  • Size optimized for use with door closers
US$719.91

Description:

Description:

Securitron EcoMag Eco-Friendly Mag Lock with Integrated REX

The Securitron M680EBDX EcoMag with Integrated REX (Request to Exit) is an advanced, eco-friendly electromagnetic lock designed for high-security applications while prioritizing energy efficiency and sustainability. This model offers all the features of the standard M680E EcoMag with the addition of an integrated Passive Infrared (PIR) REX sensor, which provides optimal coverage for detecting approaching persons and allows the door to unlock for egress.

Key Features:

  • Integrated REX Sensor: The built-in PIR sensor enhances security by accurately detecting motion within a specified area, making it ideal for controlled access environments. The detection area can be customized to suit specific needs, ensuring that the door only unlocks when someone is genuinely approaching.
  • Eco-Friendly Operation: With up to 80% reduced energy consumption, the M680EBDX is one of the most energy-efficient maglocks on the market. This is achieved through smart power management, which includes dropping power draw to as low as 20mA when the door is held open for extended periods.
  • Smart Voltage Sensing: The lock auto-senses and adjusts to 12VDC or 24VDC power, ensuring compatibility with various installation setups without requiring manual adjustments.
  • Enhanced Security: Features like the integrated BondSTAT for monitoring the lock's bond strength, a tamper switch, and an LED indicator that shows the lock status (secure, open, or incomplete bond) add layers of security and convenience.
  • Sustainable Construction: The lock is delivered in biodegradable packaging and designed to meet modern sustainability standards.

This maglock is well-suited for applications where both environmental sustainability and high security are essential, such as in green buildings, commercial facilities, and secure institutions.
