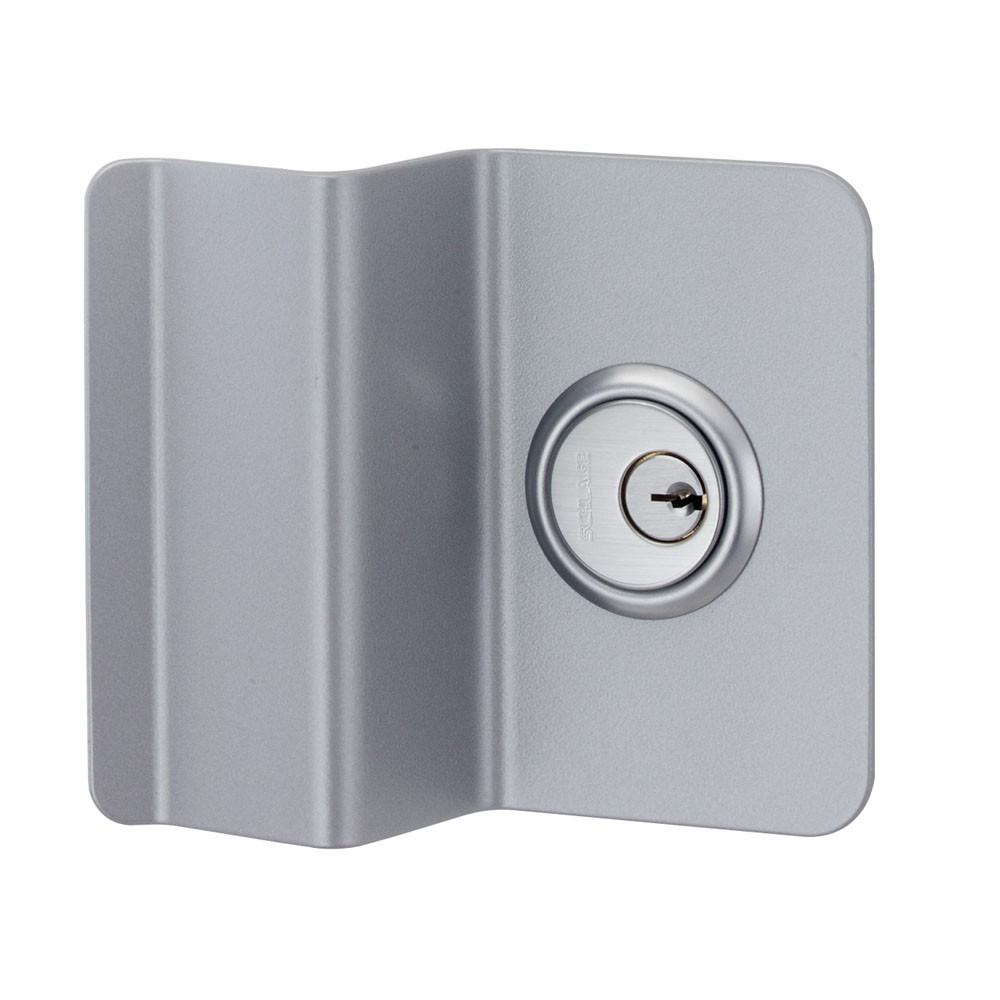

Von Duprin Pull Trim, 22 Series - Nightlatch
Von Duprin 210
The 210DT and 210NL have a heavy 10 gauge (2.4mm) stainless steel escutcheon.
Rim Cylinder must be ordered separately for the 210NL trim.
The 210K knob trim has a 10 gauge (2.4mm) steel escutcheon and uses the Schlage "A" orbit knob with six pin "C" keyway.
- EO - No Outside Trim / Exit Only
- ANSI Function: 01
- DT - Dummy Trim / Pull When Dogged
- Escutcheon Plate Size: 5-3/8" x 4-25/32" x 3/32" (137 x 121 x 2 mm)
- Projection: 1-31/32" (42 mm)
- ANSI Function: 02
- K - Knob / Key Locks & Unlocks
- Escutcheon Plate Size: 3" x 4-25/32" x 3/32" (76 x 121 x 2 mm)
- Projection: 2-15/16" (75 mm)
- ANSI Function: 08
- Cylinder Type: Furnished
- TP - Thumbpiece / Key Locks & Unlocks
- Escutcheon Plate Size: 3" x 12-1/16" x 3/32" (76 x 306 x 2 mm)
- Pull Center to Center: 5-1/2" (140 mm)
- Projection: 2" (51 mm)
- ANSI Function: 05
- Cylinder Type: 1-1/4" Mortise
- Escutcheon Plate Size: 3" x 6-3/8" x 15/16" (76 x 162 x 24 mm)
- Projection: 2-5/8" (67 mm)
- Cylinder Type: 1-1/4"
