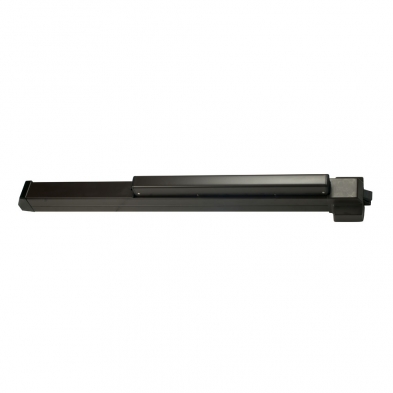

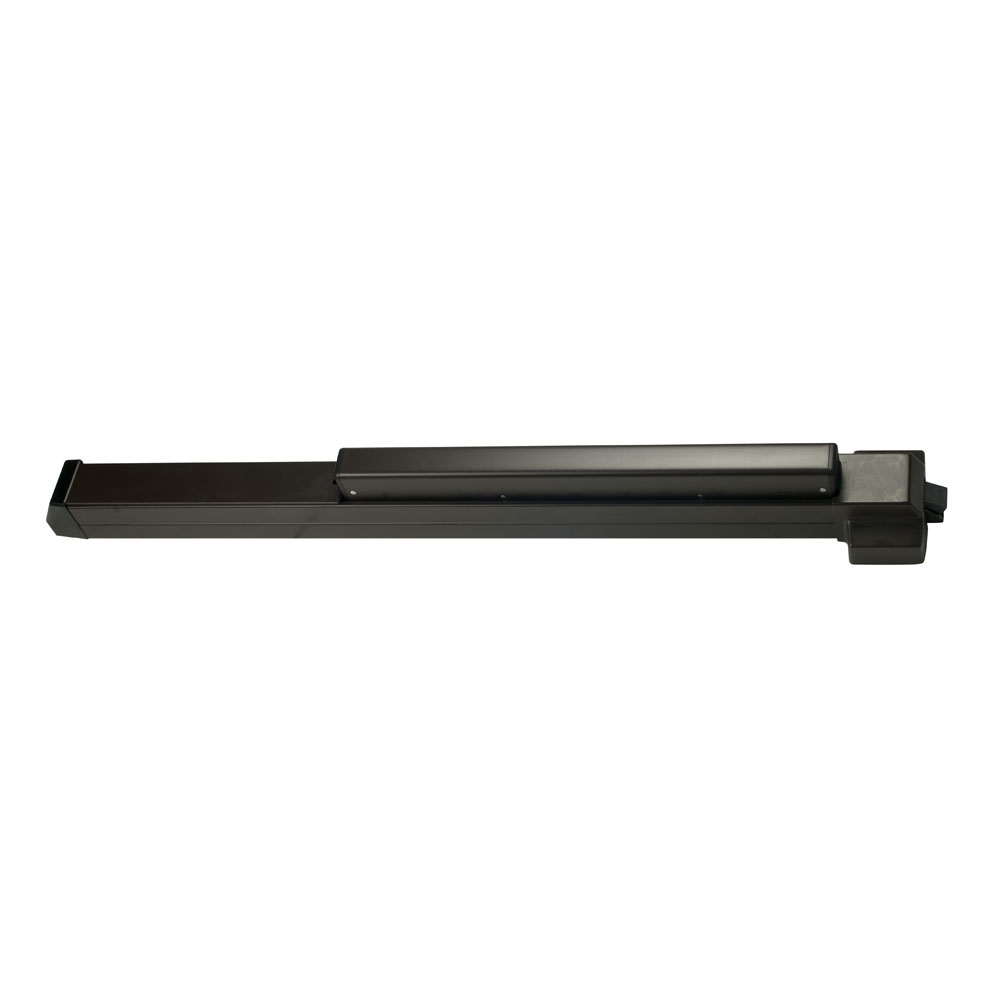

Von Duprin 22EO-3FT-SP313 Rim Exit Device, Exit Only

SKU # VD/22EO-3FT-SP313

The Von Duprin 22EO-3FT-SP313 Rim Exit Device, Exit Only

Product Features:

Product Features:

  • Finish: Dark Bronze
  • Grade: Grade 1
  • Product Class: Exit Device
  • Series: 22 Series Exit Device
US$387.60

Description:

Description:

Von Duprin 22EO-3FT-SP313 Rim Exit Device, Exit Only

The 22 Series wide stile device is a cost-effective solution for medium to low traffic areas where proven reliability is needed. The non-handed design of the 22 Series makes it more adaptable in the field. The 22 Series is designed and manufactured in accordance to ISO 9001 Quality Management System.

  • Exit Only (Von Duprin 22 Series Exit Device Trim Sold Separately)
  • ANSI A156.3, Grade-1 certified
  • UL listed for Panic Hardware
  • Standard Sizes: 3′ x 7′, 4′ x 7′ (extension rods available for doors up to 10′)

Specifications:

Specifications:

Click Here for Von Duprin 22 Series Install Sheet

  • Device functions: Ships ready for all functions, EO, DT, NL, TP, K, L
  • Device lengths 3' (914 mm)
  • Device centerline from finished floor: 39 13/16" (1011 mm)
  • Center case dimensions: 4 1/4" (108 mm) x 1 3/8" (41 mm) x 2 3/8" (60 mm)
  • Mechanism case dimensions: 2" (51 mm) x 3 3/4" (95 mm)
  • Projection push bar Push bar neutral - 3 3/4" (95 mm), push bar depressed - 3" (76 mm)
  • Latch bolt Deadlocking, 3/4" (19 mm) throw
  • Dogging feature Hex key dogging standard
  • Strikes 299 – Dull black
