Von Duprin 8875L-26D RHR Rim Device
8875L (373L - Entrance Lever Trim) - Mortise Lock Crossbar Exit Device by Von Duprin
The Von Duprin 88-Series cross bar style of exit device is a traditional crossbar design with proven service on rugged applications.
The 7500 Mortise lock is equipped with a 3/4" (19mm) anti-friction latch bolt for deadlocking and a faceplate with an adjustable bevel.
The Von Duprin 8875 Mortise Lock exit device for all types of single and double doors, UL listed for accident hazard installations. Fits stock hollow metal doors with 86 cutouts and door stiles as narrow as 4-3/4" (121mm). This device is field reversible but comes handed from the factory.
Features and Benefits:
- Mortise Lock exit device with 373L lever trim, key lock and unlocks lever.
- Device is furnished with standard 575 strike in dull black finish.
- For all types of single and double doors.
- Fits stock hollow metal doors with 86 cutouts.

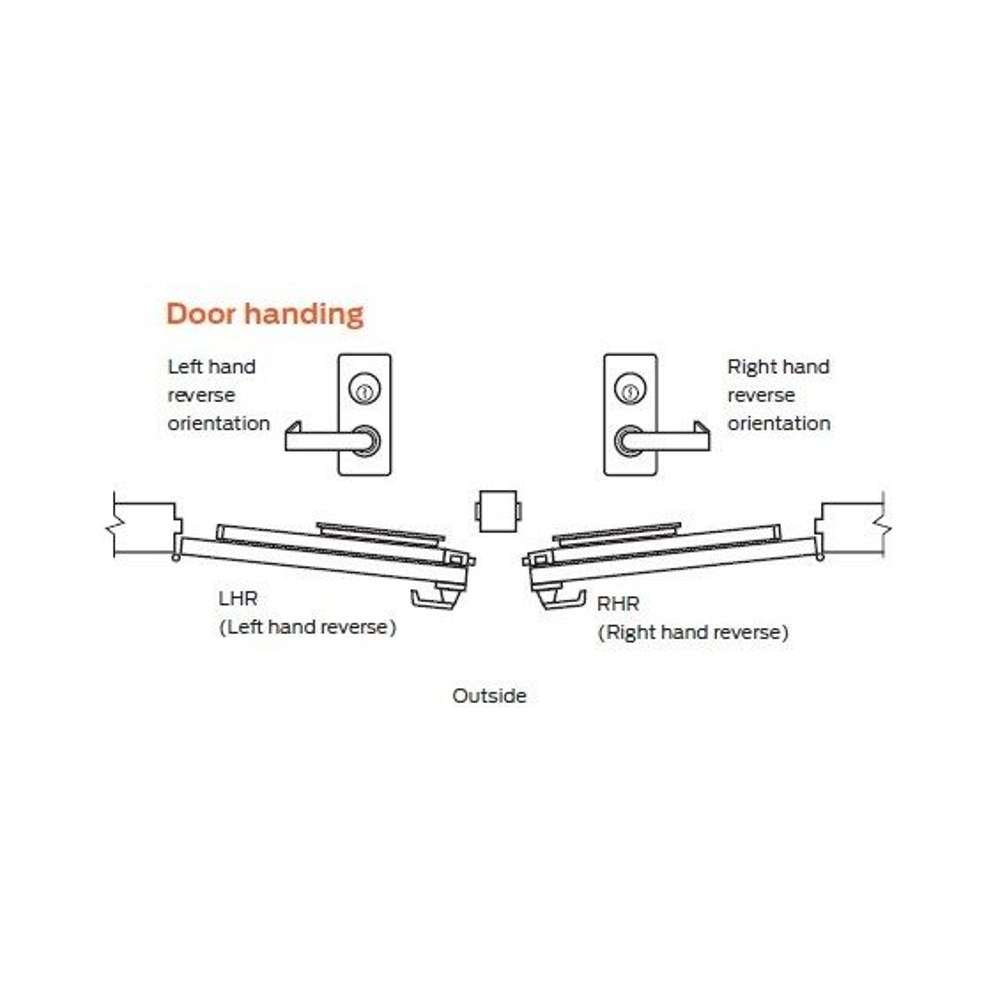

- This device is handed.
- Hex key dogging.
- Crossbar length 42".
- 3/4" throw latch bolt.
- Available in Oil Rubbed Bronze (10B) & Satin Chrome (26D) finish.
Specification Data:
- ANSI A156.3, 1994, Grade 1.
- UL listed for Panic Exit Hardware.
- Crossbar height to finished floor - 36-13/16".
- Latch bolt height to finished floor - 40-3/32".
- Crossbar projection - neutral 4-7/8", depressed 4".
- Lock stile case - 8-1/4" x 2" x 15/16".
- Lock case - 4-5/8" x 5-3/4" x 1-1/16".
- Hinge stile case - 6" x 1-3/4" x 15/16".
- 1-1/4" Mortise cylinder not included.
- Crossbar tubing - 1" (25mm) outside diameter.
** All Von Duprin Exit Device Trims are sold Less Cylinder.**
