Von Duprin 9927EO-26D Surface Verticle Rod Exit Device
Von Duprin exit device trim for 98/99 series rim and vertical rod devices. The 996EO Exit Only Plate Trim is one of the standard trims for the 98 and 99 series Von Duprin panic bars. It is an exit only plate trim which means there is no handle or opening mechanism. This does not allow entry through the door once you exit.
98/99 Trim FunctionsVon Duprin protects your investment by empowering you to adapt with flexible solutions and modular options. The 98/99 Series features numerous trim options to serve your different needs. Designed with flexibility in mind, our solutions offer ease of adding new options as they are developed. With Von Duprin, you can be confident that as the needs of your facility change, our products can be upgraded easily to meet your needs, especially as the mechanical and electronic technology converge. Von Duprin’s versatile design enables you to add functionality to existing devices in a cost-effective way, protecting your investment well into the future.SpecificationsSpecifications and certifications are specific to each configuration. See the 98/99 Series catalogs for more information.
- ANSI/BHMA A156.3 2014 Grade 1 certified
- ANSI/UL 10C (fire-rated only)
- ANSI/UL 305
- CAN/ULC-S104 (fire-rated only)
- CAN/ULC-S132
Functions & Trim A variety of functions and trim options are available, but only the standard options are listed below. Refer to the 98/99 Series catalog for more information. Functions
- Classroom: the key locks and unlocks the lever or knob
- Dummy: the rigid mechanical trim for pull operation
- Exit only: no outside trim
- Passage: the lever or knob is always active
- Storeroom: the key retracts the latchbolt, the lever or knob is rigid
98/99 Series popular trims
990: pull trim, 5 standard functions:
- Classroom (TP)
- Storeroom (NL)
- Dummy trim (DT)
- Passage (TP-BE)
- Exit only (EO)

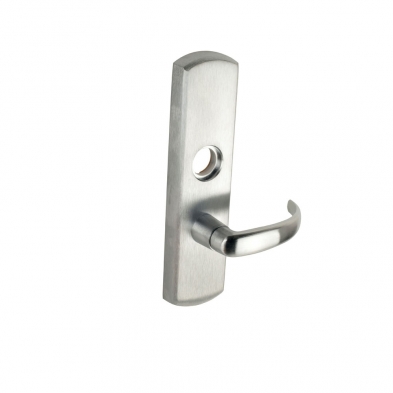

996: lever or knob trim, 4 standard functions:
- Classroom (L, K)
- Storeroom (L-NL, K-NL)
- Dummy (L-DT, K-DT)
- Passage (L-BE, K-BE)
