Von Duprin PS914 Base Power Supply

Von Duprin PS914 Base Power Supply

SKU # VD/PS914

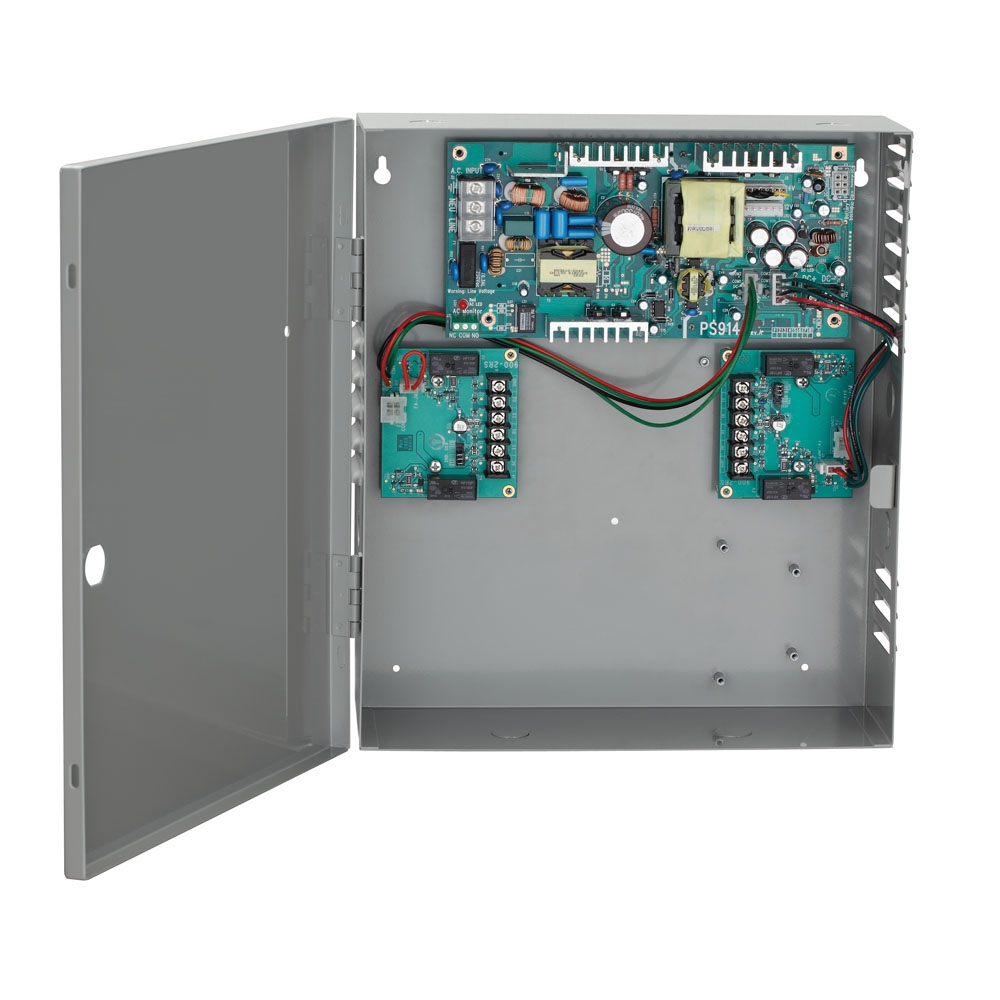

The Von Duprin PS914 Base Power Supply

The Von Duprin PS914 is a 4-amp power supply designed to manage high in-rush requirements. Like similar power supply models under the Schlage brand, it is made for the electronic access control market and designed with versatility and reliability in mind. With proper option boards in place, the PS914 can manage up to 8 Von Duprin or Falcon EL devices.

It can be factory ordered to meet specific needs or configured in-field using a wide selection of option boards. Installation is simple with a flat mounting board and polarized locking connectors to make in-field expansions virtually plug-and-play. The design also provides easier access to the terminal blocks for connection of electrified devices.

Features

4A at 12/24V DC constant output, field selectable with jumper
Designed for use with electrified panic devices requiring high in rush current
Provides lowVage, Class 2, filtered and regulated power
Universal 120-240 VAC, fused primary input
Two polarized option board connectors
AC input and DC output monitoring circuit with LED indicators
Externally visible AC in put indicator with isolated SPDT contacts
High-voltage protective cover for AC circuitry (not shown)
Battery back-up board auto-selects voltage

US$638.40

Qty:

Description:

Von Duprin PS914 Base Power Supply

Von Duprin PS914 Base Power Supply (4A (16A inrush) @ 12/24 VDC field selectable)

Von Duprin power supply and option board products were designed to meet the specific requirements of electrified fire exit devices.

Installation is simplified by utilizing a flat mounting design and polarized locking connectors for option boards. This design eliminates the need for racks and side connectors. The flat mounting of the option boards also provides for easier access to the terminal blocks for connection of electrified devices (such as electrified panic devices, strikes, card readers, etc.).

Common to the line of PS900 Series power supplies is a constant output rating at both 12v and 24v settings, universal 120 VAC to 240 VAC input, and polarized option board connectors. New fire alarm interface board mounting allows outputs to be configured as switched (power cut) or unswitched (power continues) when signal is provided.

Universal 120-240 VAC, fused primary input
Two polarized option board connectors
AC input and DC output monitoring circuit with LED indicators
Externally visible AC input indicator with isolated SPDT contacts
UL 294, ULC-S318, RoHS, and FCC Part 15 certified
Designed with high inrush current for powering electrified panic devices
This power supply is equipped with the 900-2RS: 2 Relay EL panic device control board
Installation is simplified by utilizing a flat mounting design and
Controls 1 or 2 EL devices
Low voltage DC, regulated and filtered
Includes two polarized connectors for distribution boards
