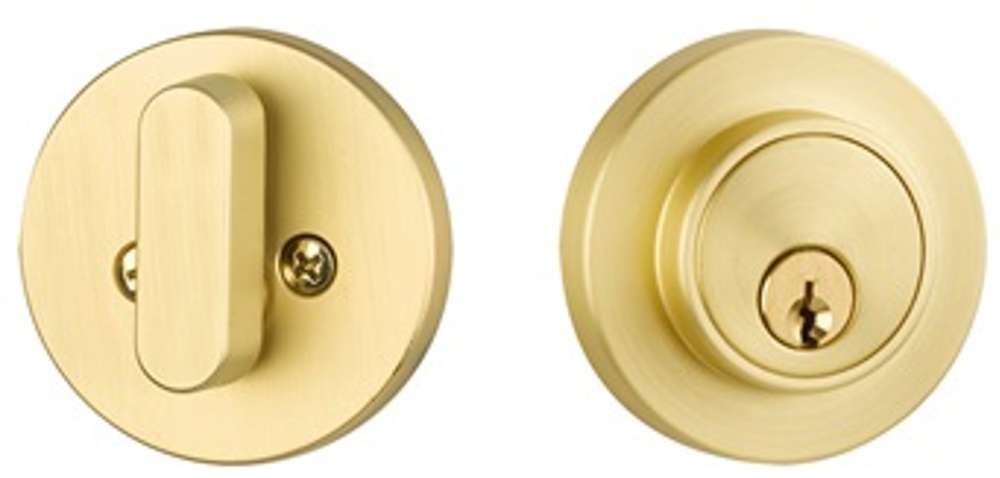

Yale Expressions KYOWN32.US4 Owen Single Cylinder Deadbolt
The rounded Owen Deadbolt gracefully mimics its cylindrical keyway, and is available in 4 modern finishes.
Function: The Yale Expressions Marcel Deadbolt is available in Single Cylinder (KYOWN32) function.
Finish: The Yale Expressions Marcel Deadbolt comes in Satin Brass (US4), Satin Nickel (US15), Flat Black (US19), and Polished Chrome (US26) finish.
All Yale Expressions Series Locks come standard with Round Corner Adjustable Latch (RCAL) and Round Corner Strike (RCS).
- Designed to meet Grade 3 standards for value and security.
- Removable cylinder for ease of re-keying without special tools.
- Non-handed levers lower inventory needs, minimize mistakes.
- Adjustable latches take out the guesswork.
Door Range: 1-3/8" - 1-3/4" (35mm - 44mm).
Backset: Dual Backset Latch; adjustable for 2-3/8" or 2-3/4" backset.
Door Prep: 5-1/2" Center to Center Door Prep. 2-1/8" Face Bore, 1" Edge Bore.
Latch: 1" x 2-1/4" (25mm x 57mm) Round Corner, 1" (25mm) housing diameter, 1" (25mm) throw.
