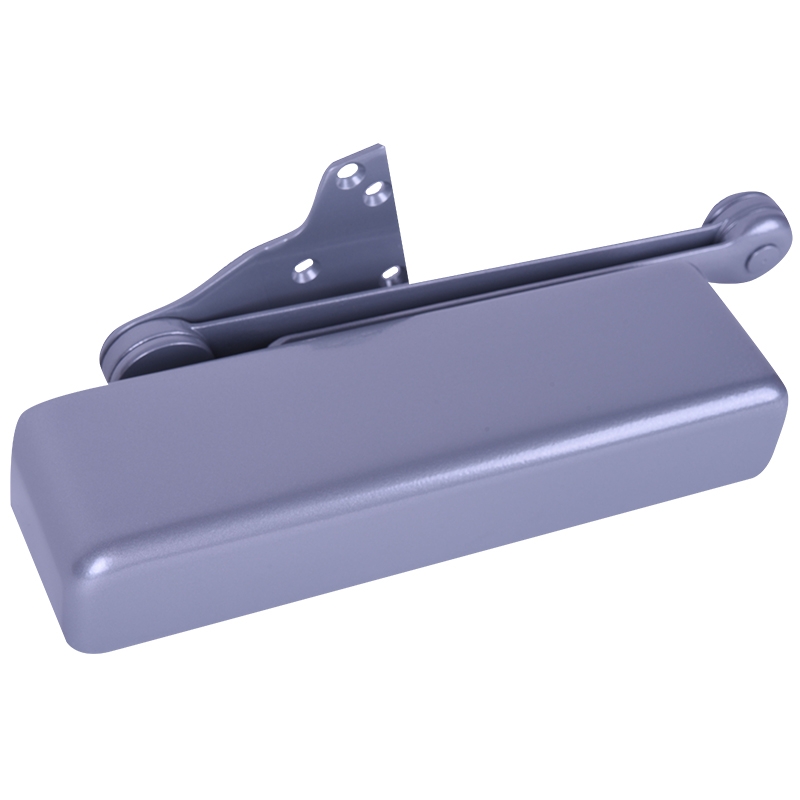

LCN 4211-EDA-RH-AL Door Closer
4211 EDA Door Closer by LCN
High Security LCN closers feature a vandal resistant design engineered for each application, easy installation, and superior performance.
The LCN 4210 SMOOTHEE® Series is a heavy duty, high security closer with special components to minimize tampering and vandalism. Forged steel parallel arms and heavy gauge metal security covers are designed for correctional, vandal prone, institutional and other high traffic applications. The closer has passed 10 million cycles in independent testing. A choice of finishes and cylinder functions meet correctional and vandal resistant requirements.
Features and Benefits:
- Tested and certified under ANSI Standard A156.4.
- Available in Aluminum (689) & Dark Bronze (695) finish.
The 4210 Series is UL listed with EDA or CUSH arms for self-closing doors. Tested and certified under ANSI Standard A156.4, grade one.
Specification Data:
- Standard 4210 Series closer is shipped with EXTRA DUTY arm (non hold-open), metal security cover, and TORX Machine Screw pack.
- Sized cylinders for interior doors to 5'0" and exterior doors to 4'0".
- Non-sized cylinder adjustable for interior doors to 4'6" and exterior doors to 3'6".
- Closer mounts parallel arm; Handed for right (RH or LHR) or left (LH or RHR) swinging doors. Click here for Handing Diagram.
- 4211 cylinder meets ADA requirements.
Arm Function Option:
EDA (Extra Duty Arm 4210-3077EDA): Non-handed parallel arm features solid forged steel main arm and forearm for potentially abusive installations. Double slab arm/pinion attachment for maximum strength.
CUSH (Cush-N-Stop Arm 4210-3077CNS): Non-handed parallel arm features solid forged steel main arm and forearm with built-in stop in soffit shoe. Double slab arm/pinion attachment for maximum strength.
HCUSH (Hold-Open Cush-N-Stop Arm 4210-3049CNS): Non-handed arm provides hold-open function with templated stop/hold-open points. Handle controls hold-open function. HCUSH arm not available with 4216 cylinder. Double slab arm/pinion attachment for maximum strength.
