LCN 6440XP-ALM COMPACT Low Energy Operator Closer Aluminum

SKU # LC/6440XP-ALM

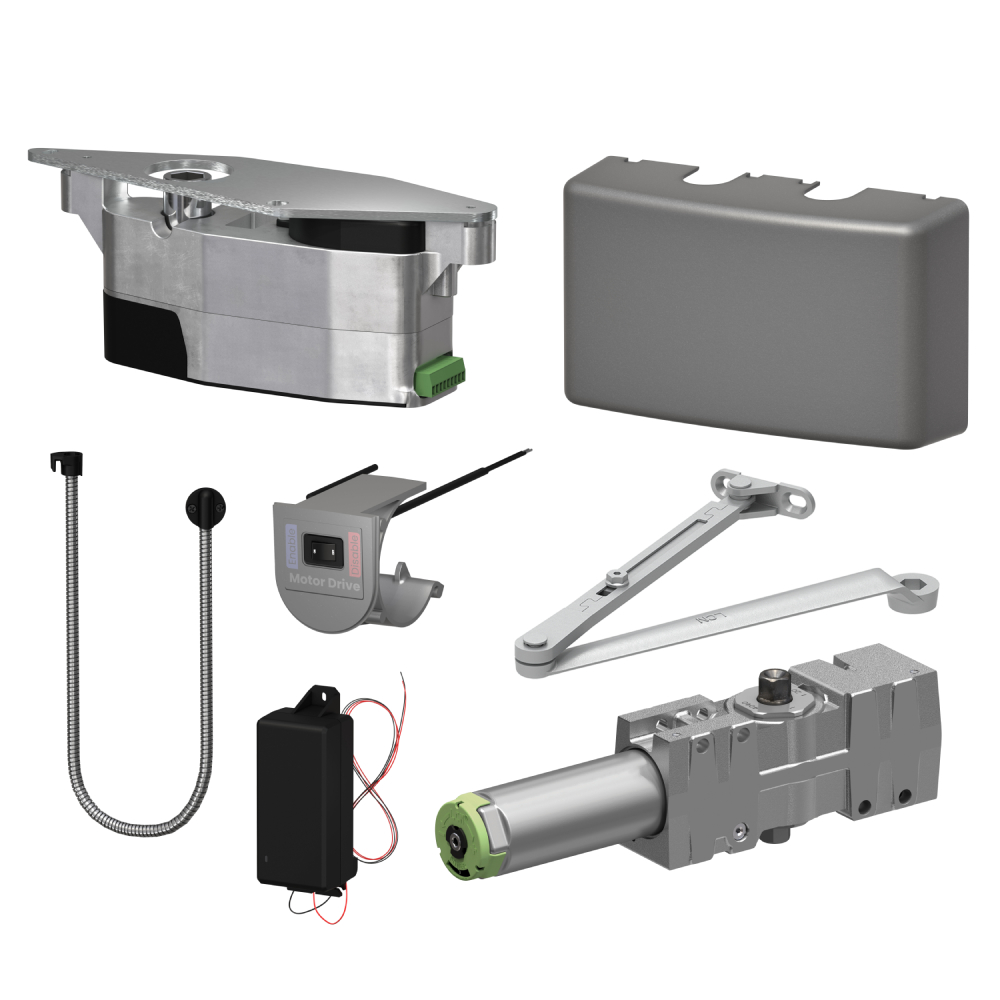

LCN 6440XP-ALM 6400 COMPACT Series low energy automatic operator Module and closer Kit Aluminum features include:

  • 6440 Module kit components
  • 4040XP Standard cylinder
  • RwPA arm
  • 24V input for safe door-mount applications
  • Configurable power input to allow for simple wall plug-in or external power supply
  • Compact user interface for electronic feature adjustments
  • Simple calibration set-up with visible and audible feedback
  • Adjustments via mechanical closer to meet closing force preferences
  • Power boost to overcome interior stack pressure and allow for lower spring settings
  • Fire input to deactivate actuation upon signal
  • Dedicated input for actuation signal (hardwired or wireless receiver)
  • Certified to UL 10C, UL 325 and UL 228
  • Certified to ANSI Standard A156.19
  • Compliant with ANSI Standard A117.1

US$1,324.89

Description:

Description:

LCN 6440XP-ALM COMPACT Low Energy Operator Closer Aluminum

LCN 6440XP-ALM 6400 COMPACT Series low energy automatic operator Module and closer Kit Aluminum

The LCN 6400 COMPACT Series low energy automatic operator can help your facility meet basic needs related to accessibility/touchless access on interior openings. Whether you are upgrading a single opening, or renovating a portion of your building, the COMPACT series enables you to promote a healthy and accessible environment. The modular design makes the COMPACT Series simple and cost-effective. The core elements of the solutions are a motor gearbox assembly, a 4040XP mechanical closer and wireless or hardwired actuators. For new openings, you can configure a complete solution to meet your needs or repurpose the 4040XP closer.

The COMPACT motor gearbox assembly is surface installed on the door or top jamb and attaches to the 4040XP with a mounting plate and just 4 screws. It can be powered by a standard wall outlet or an external power supply. The operator includes a wiring harness with a wall adaptor plug that step down the building’s 110 voltage to 24VDC. A door loop kit is included to route the wiring from the door to the wall. At the time of initial set-up, there is a simple calibration process with visible and audible feedback. The intuitive user interface can set opening speed, power boost, and hold open time functions. After initial set-up, normal adjustments can be made to the 4040XP, using the green dial and regulation valves. The innovative LCN COMPACT Series operator allows you to improve the well-being, and accessibility of your facility, while minimizing impact to your budget and maintenance.

Specifications:

Specifications:

Click Above to See Full Finish Chart
