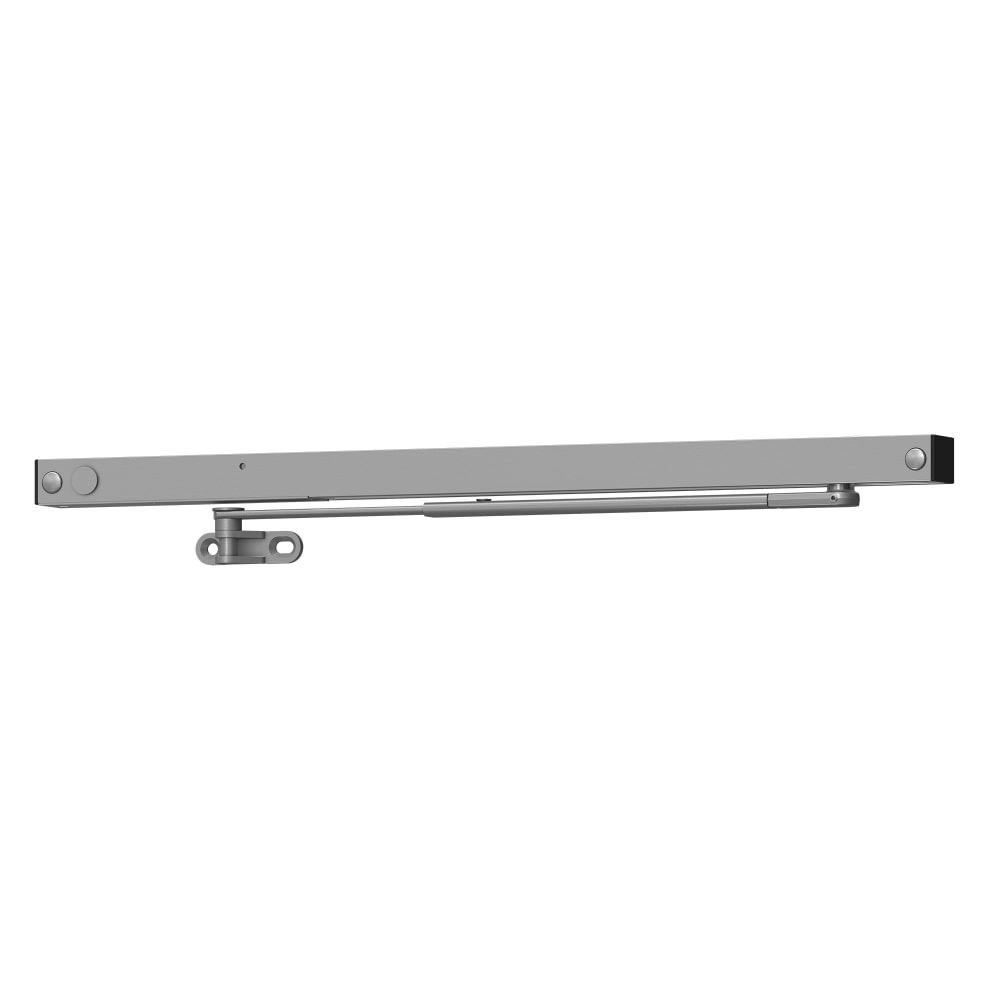

LCN 4040SEH-24V-AL Hinge Side Mount Holder Track and Arm

LCN 4040SEH-24V-AL Hinge Side Mount Holder Track and Arm

Heavy duty, non-handed and non-sized, designed to provide a single point hold-open for fire and smoke barrier doors. The door is held open until current interruption releases the holding mechanism and the door closes.

• Standard 4040SE series closer shipped with a standard arm, 24V or 120V (please specify) SE track, standard cover, and wood and machine screw pack. SEL tracks are optional.
• Non-sized cylinders for interior doors to 4'0".
• Hold-open force is adjustable.
• Momentary on/off switch board assembly for testing door release also provides over-voltage protection. Field replaceable.
• Functions as a full rack and pinion closer when hold-open is not engaged or current is interrupted.
• Closer mounts on either push or pull side of the door.
• Non-handed for mounting on either right or left hand door.
• Concealed or surface wiring.
• Interfaces with alarm systems. Consult factory for full details.
• Standard or optional custom powder coated finishes on cover and arm.
• Optional plated finishes
