Camden CX-ED1579L All In One Fire Rated Electric Strike
The Camden CX-ED1579L Grade 1 electric strike for mortise and cylindrical locksets offers the very best strike quality and features, with the added value of built-in latch monitoring, five stainless steel faceplates and 'Universal' performance, including field selectable voltage and fail safe/fail secure operation.
Features and Benefits:
- For mortise and cylindrical locksets.
- 3/4 (19mm) latch projection (throw).

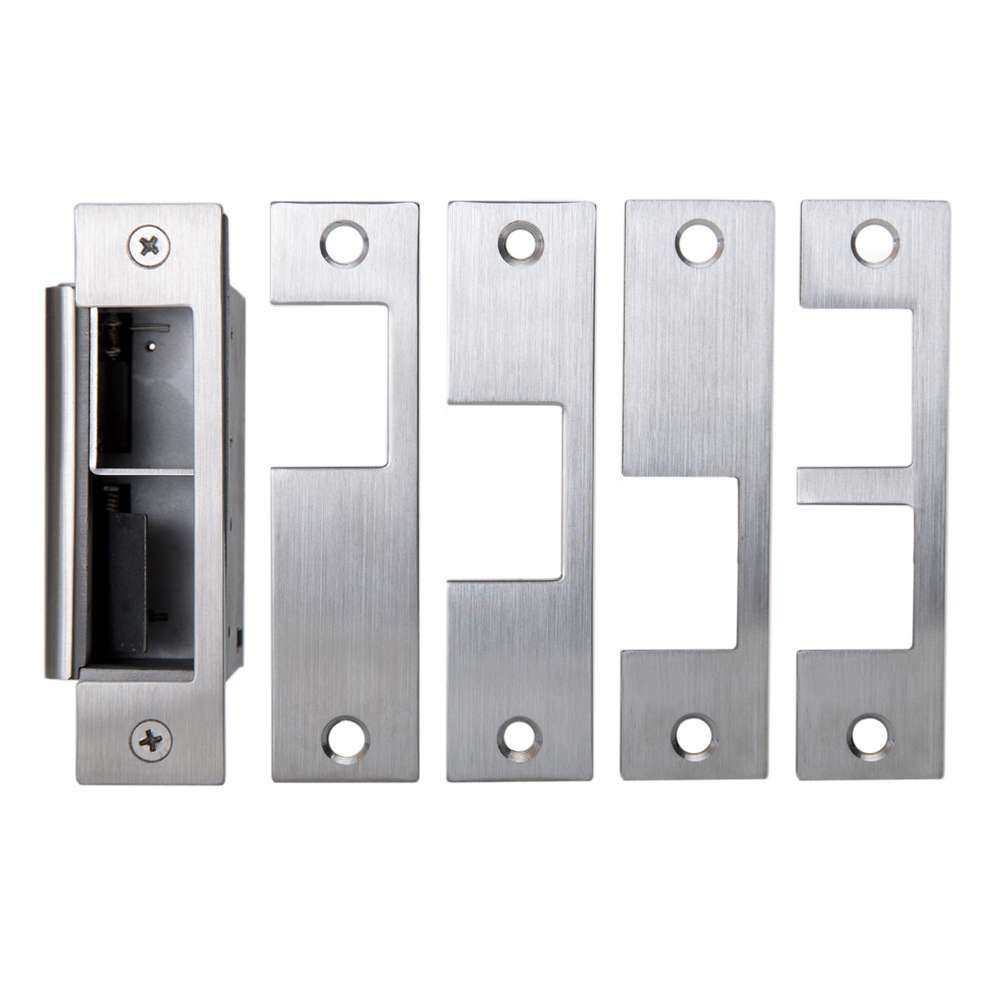

- 5 stainless steel faceplates included.
- Selectable fail safe/fail secure operation.
- Selectable 12/24V AC/DC.
- Latch monitoring.
- Non-Handed, LH/RH.
- Easy Fit connectors for power and monitoring wires.
- Stainless steel strike body.
Specification Data:
- Voltage: 12/24 AC/DC.
- Current Draw: 260 mA @ 12 VDC. 150 mA @ 24 VDC.
- Static Strength: 1,500 Lbs.
- Dynamic Strength: 70 Ft-Lbs.
- Endurance: 1,500,000 cycles (Factory Tested). 250,000 cycles (UL Verified).
- Mode: Fail-Safe/Fail-Secure, Field Selectable.
- Operation: AC- Buzz. DC - Silent.
- Duty: Continuous (DC).
- Mounting: Non-Handed.
- Fire Rating: UL10C/Can4-S104 3 hour (fail secure only).
- Latch Bolt Monitor: SPDT, 100 mA @ 24 VDC.
- Dimensions: 4-7/8 H x 1-1/4 W x 1-3/4 D (124mm x 32mm x 45mm).
Special Orders: For pricing on any Camden Door Controls Electric Strikes not on this page please contact Taylor via e-mail (sales@taylorsecurity.com) or call +1 (800) 676-7670.
