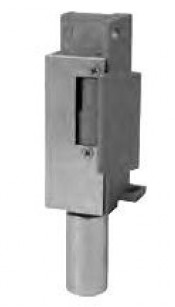

Folger Electric 710-75-12D Electric Strike, Body Only

SKU # FE/710-75-12D

The Folger Electric 710-75-12D Electric Strike, Body Only is a 24VDC Electric Strike, Body Only.

The 700 series is a 3 hour fire-rated, industrial grade electric strike designed for extreme heavy duty applications. The all stainless steel construction of this device makes it ideal for high abuse applications.

Features include:

  • 700 Series
  • Electric Strike Body only
  • .15 Amps @ 24VDC continuous duty
  • Tamper resistant, heavy-duty construction
  • Constructed entirely of stainless steel for strength and corrosion resistance
  • Static strength 1,500 lbs.
  • Dynamic strength 70 ft-lbs.
  • Horizontally adjustable keeper to allow for door and frame misalignment
  • Non-handed
  • Fail Secure (standard)
  • Plug-in connector
US$353.00

Description:

Description:

Folger Electric 710-75-12D Electric Strike, Body Only

Folger Electric 710-24D Electric Strike, Body Only
700 & 742 Series | LBMLCM: When using LBMLCM with a SARGENT 78/8200 Series or BEST 40 Series Mortise Lock, a 1/2” or 5/8” keeper latchbolt detection will be dependent on the door gap in order to ensure functionality. Consult customer support regarding use with other manufacturers.
712-75, 732-75 and 742-75: The LBMLCM option is compatible with SARGENT 78/8200 Series or BEST 40 Series 3/4" throw mortise lock latchbolts in hollow metal and wood frame applications. Monitoring capabilities are dependent on a maximum 1/8" door gap in order to ensure functionality. Consult customer support regarding use with other manufacturers.
  • 1/2” keeper depth (712 and 732)
  • 3/4" keeper depth (712-75 and 732-75)
  • Constructed entirely of stainless steel for strength and corrosion resistance
  • Dynamic strength 70 ft-lbs
  • Fail secure (standard)
  • Horizontally adjustable keeper to allow for door and frame misalignment
  • Non-handed
  • Plug-in connector
  • Static strength 1,500 lbs.
  • Tamper resistant, heavy-duty construction

Application

  • Adjustability : Horizontal
  • Surface Mounting : NA
  • Frame Material : Metal|Wood
  • Shim Type : NA
  • Latchbolt Accommodation : 1/2" - 3/4"

Electrical

  • Voltage : 12|24
  • Monitoring Installation : Factory Configured
  • Monitoring Options : Latchbolt Strike Monitor

Strength & Durability

  • Endurance (cycles) : 1,000,000
  • Dynamic Strength (ft-lbs) : 70
  • Tamper Resistant : NA
  • Fail Safe | Fail Secure : Fail Secure

General Specifications

  • Warranty : SecuriCare five-year, no fault, no questions asked warranty
  • Lock Type : Cylindrical Lock|Mortise Lock

Weights & Dimensions

  • Strike Body Depth (in) : NA
  • Strike Body Height (in) : NA

Certifications

  • ANSI/BHMA A156.31, Grade 1
  • RoHS Compliant
  • UL 1034 burglary-resistant listed
  • UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies
  • UL294 Listed
