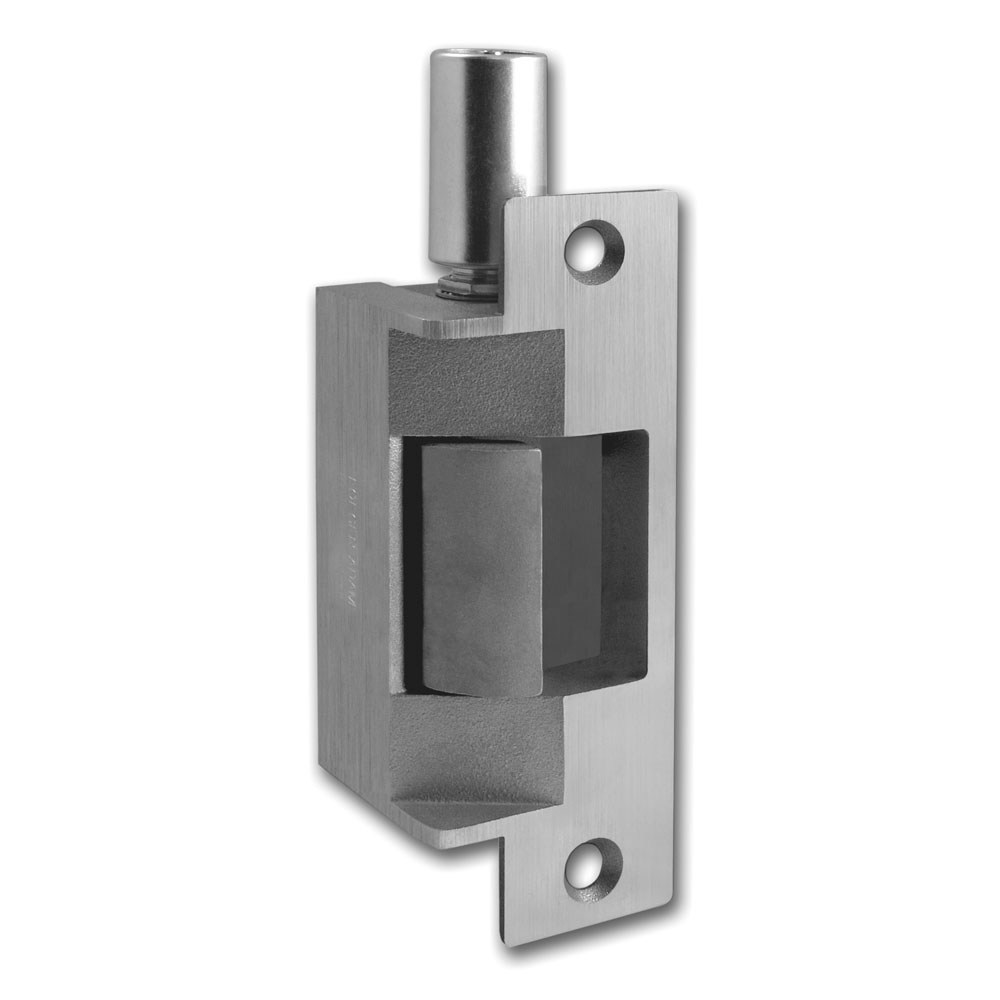

Folger Electric 712-24D-630-LBMLCM Electric Strike
The 700 series is a 3 hour fire-rated, industrial grade electric strike designed for extreme heavy duty applications. The all stainless steel construction of this device makes it ideal for high abuse applications. The 712 series is designed to accommodate 1/2" throw latchbolts, and the 712-75 is designed to accommodate 3/4" latchbolts. *NOTE: These products will require relocation of the center line when used with mortise locks. Consult customer support regarding use with the Best 40 series.
- 1/2” keeper depth (712 and 732)
- 3/4" keeper depth (712-75 and 732-75)
- Constructed entirely of stainless steel for strength and corrosion resistance
- Dynamic strength 70 ft-lbs
- Fail secure (standard)
- Horizontally adjustable keeper to allow for door and frame misalignment
- Non-handed
- Plug-in connector
- Static strength 1,500 lbs.
- Tamper resistant, heavy-duty construction
Application
- Adjustability : Horizontal
- Surface Mounting : NA
- Frame Material : Metal|Wood
- Shim Type : NA
- Latchbolt Accommodation : 1/2" - 3/4"
Electrical
- Voltage : 12|24
- Monitoring Installation : Factory Configured
- Monitoring Options : Latchbolt Strike Monitor
Strength & Durability
- Endurance (cycles) : 1,000,000
- Dynamic Strength (ft-lbs) : 70
- Tamper Resistant : NA
- Fail Safe | Fail Secure : Fail Secure
General Specifications
- Warranty : SecuriCare five-year, no fault, no questions asked warranty
- Lock Type : Cylindrical Lock|Mortise Lock
Weights & Dimensions
- Strike Body Depth (in) : NA
- Strike Body Height (in) : NA
Certifications
- ANSI/BHMA A156.31, Grade 1
- RoHS Compliant
- UL 1034 burglary-resistant listed
- UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies
- UL294 Listed
