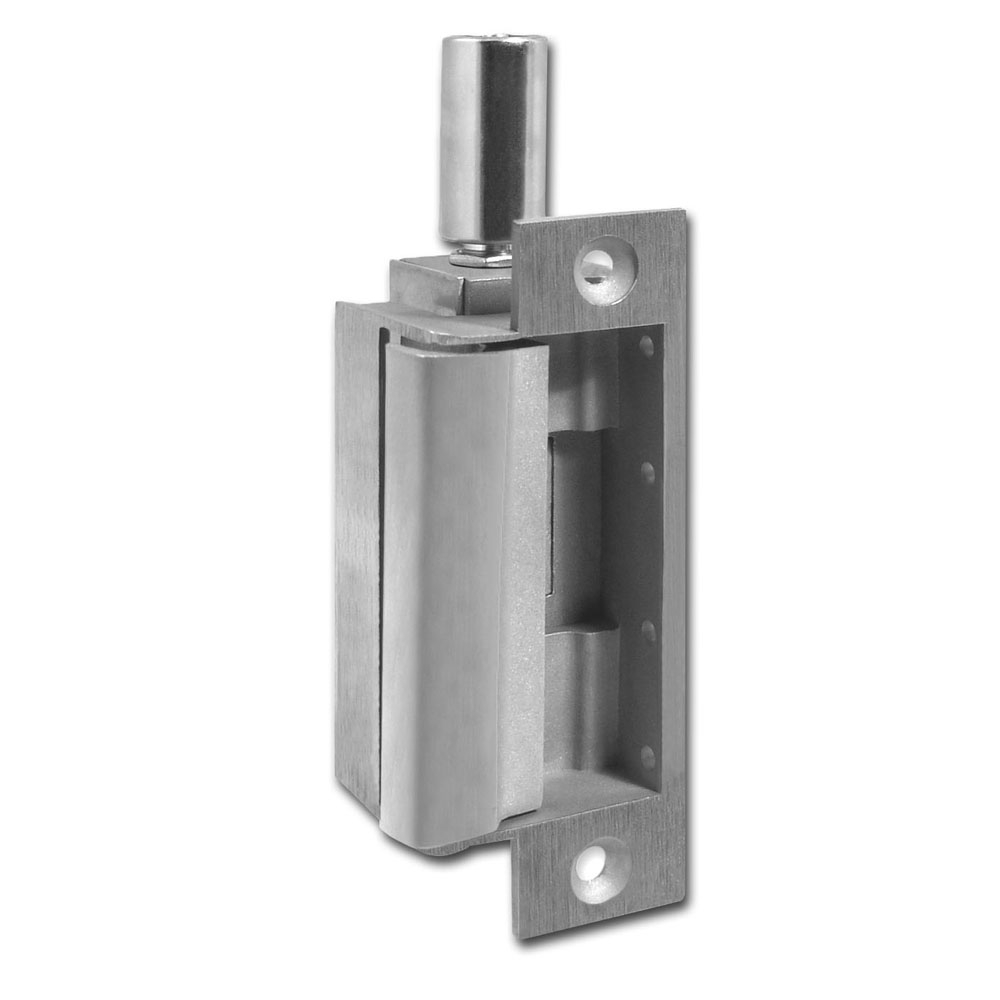

Folger Electric 742-75-24D-630 Electric Strike

Folger Electric 742-75-24D-630 Electric Strike

The all stainless steel construction of this device makes it ideal for high abuse applications. The Folger Adam 742-75 Series comes standard with a variety of brackets to accommodate all major mortise and cylindrical locks with up to a 3/4" throw latchbolts.* This is the one electric strike to choose when you are uncertain of which lockset you may encounter.

• Tamper resistant, heavy-duty construction
• Constructed entirely of stainless steel for strength and corrosion resistance
• Static strength 1,500 lbs
• Dynamic strength 70 ft-lbs
• Endurance 1,000, 000 cycles
• Horizontally adjustable keeper to allow for door and frame misalignment
• Deadlatch tabs included
• 3/4" keeper depth
• Non-handed
• Fail secure (standard)
• Plug-in connector
• Full keeper shim

Application

• Adjustability : Horizontal
• Surface Mounting : Cutting required
• Frame Material : Metal
• Shim Type : Field Adjustable
• Latchbolt Accommodation : Up to 3/4"

Electrical

• Voltage : 12/24
• Monitoring Installation : Factory Configured
• Monitoring Options : Latchbolt and locking cam monitor with auxiliary switch|NA

Strength & Durability

• Endurance (cycles) : 1,000,000
• Dynamic Strength (ft-lbs) : 70
• Tamper Resistant : Yes
• Fail Safe | Fail Secure : Fail Safe/ Fail Secure

General Specifications

• Warranty : SecuriCare five-year, no fault, no questions asked warranty
• Lock Type : Cylindrical Lock|Mortise Lock
• Fire Rating ~ Single Door : 3 Hour (Fail Secure Only)
• Fire Rating ~ Double Door : 1.5 Hour (Fail Secure On

Weights & Dimensions

• Strike Body Depth (in) : 1-15/16"
• Strike Body Height (in) : 4-7/8"

Certifications

• ANSI/BHMA A156.31, Grade 1
• CAL FIRE, 3776-1654:0501
• UL 1034 burglary-resistant listed
• UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies
• UL294 Listed
