HES 5200C-12/24D-630 Complete Pac One Box Solution Strike

SKU # HE/5200C-630

HES 5200C-12/24D-630 Complete Pac One Box Solution Strike

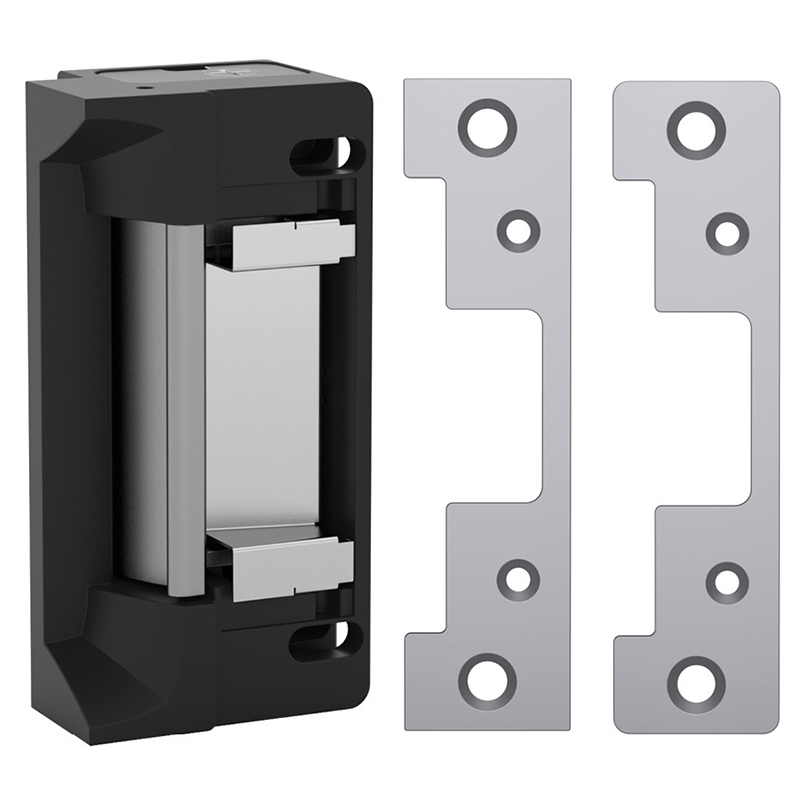

The HES 5200C-630 Electric Strike is an Electric Strike Complete Pac in Satin Stainless steel. Each Complete Pac conveniently pairs the reliability of an HES electric strike with the flexibility of multiple faceplates in a single simple package. The 5200C includes a 5200 strike body, the 501 faceplate for cylindrical locksets in ANSI metal jambs and the 501A faceplate for cylindrical locksets or spring latches in aluminum frames.

The 5200C has in-frame horizontal adjustability for easy installation. The 5200C works with cylindrical locksets up to a 3/4" throw latchbolt and includes in-frame adjustability and dual voltage.

"The Grade 1 Solution with Horizontal Adjustability"

- Function: Standard.
- Select Finish: Satin Stainless Steel (630).
- 5200C Includes: HES 5200 Strike + 501 and 501A Faceplate (1 each).

Standard Features include:

  • 5200 Series
  • 5200C Complet Pac includes
    • 5200 Strike Body
    • 501 faceplate for cylindrical locksets in ANSI metal jambs
    • 501A faceplate for cylindrical locksets or spring latches in aluminum frames.
    • Satin Stainless Steel
  • Tamper resistant
  • Static strength 1,500 lbs.
  • Dynamic strength 70 ft-lbs.
  • Endurance 500,000 cycles
  • Field selectable fail secure/ fail safe
  • Dual voltage 12 or 24 VDC/VAC
  • Non-handed
  • Internally mounted solenoid
  • Accommodates 5/8" - 3/4" latchbolt (3/4" with 1/8" door gap)
  • Strike body depth 1-1/16"
  • Plug-in connector
  • Trim enhancer included

- Delivery: The HES 5200C-630 is In Stock and available to ship.



US$130.35

Description:

Description:

5200C-12/24D-630 - Electric Strike by HES

The 5200 Series is a Complete One Box Solution!

The 5200C Series electric strikes feature an in-frame horizontal adjustable design to simplify the installation process. This feature allows the installer to easily adjust the electric strike opening to accommodate the horizontal position of the latchbolt after the strike has been installed. This field selectable fail secure/fail safe unit is easy to install and accommodates latchbolts up to 3/4" throw.

Each Complete Pac conveniently pairs the reliability of HES electric strike with the flexibility of multiple faceplates in a single simple package. The 5200C includes a 5200 electric strike body, the 501 faceplate for cylindrical locksets in ANSI metal jambs and the 501A faceplate for cylindrical locksets or spring latches in aluminum frames.

Features and Benefits:

- Tamper resistant.
- Static strength 1,500 lbs.
- Dynamic strength 70 ft-lbs.
- Endurance 500,000 cycles.
- Field selectable fail safe/fail secure.
- Dual voltage 12 or 24 VDC/VAC.
- Includes a 501 and a 501A faceplate in the box.
- In-frame horizontal adjustment.
- Non-handed.
- Internally mounted solenoid.
- Accommodates 5/8" - 3/4" latchbolt (3/4" with 1/8" door gap).
- Strike body depth 1-3/16".
- Plug-in connector.
- Trim enhancer included.
- Frame Application: Metal & Wood.
- Available in Satin Stainless Steel (630) finish.

Specification Data:

- UL 1034, burglary-resistant listed.
- UL 294 (6th Edition) listed.
- ANSI/BHMA A156.31, Grade 1.
- RoHS compliant.
- Patents: 5,934,720.

Electrical:
.24 Amps @ 12VDC/VAC
.12 Amps @ 24VDC/VAC
DC continuous duty/AC intermittent duty only
PoE friendly

Fail Secure (Power-to-Unlock): Unlocked when energized. Locked when de-energized and during power failure.
Fail Safe (Power-to-Lock): Locked when energized. Unlocked when de-energized and during power failure.
