RCI 4319-06-32D Electric Strike

RCI 4319-06-32D Electric Strike

The 4 series centerline strike accommodates ¾” latch projections. Its various faceplate options and 1-1/2” cut-out depth accommodates most door frame types and materials. Installation is simple with standard mounting tabs and included fasteners. Crossed wires are never a problem, as the coil is not polarity sensitive. The RCI 4 series centerline strikes are available with an optional 1-1/2 hour fire-rating. 41 Series depicts fail-secure and 43 Series depicts fail-safe.

• Accommodates 3/4" (19mm) latch projection
• 1-1/2" (38mm) cut-out depth accommodates most door frame material types
• Use with wide range of door thicknesses, 1-3/8" to 2-3/8" (35mm-60mm)
• Standard mounting tabs and fasteners included
• Non-handed
• Trim plate included to cover up irregular frame cutout
• 200mA 11-16VAC, 12VAC/VDC, 24VAC/VDC (At 12VDC)
• 1,500lbf Static2 70ft-lb Dynamic (1,500lbf Static for fire-rated models, 1,000lbf for non-fire-rated 04 & 14 faceplates, 500lbf for 05, 07, 08 & 19 faceplates.)
• 500,000 Cycles (Fire-rated (F) models only, 250,000 for other models)
• Fail-Secure & Fail-Safe
• Optional 1-1/2-Hour Models Available (Fire-rated (F) models only available in fail-secure mode with 04 & 14 faceplates)

Technical Details

• Insert Depth: 1-1/2"D (38mm)
• Brushed Stainless Steel (32D) finish
• UL 1034 burglary-resistant Listed
• UL 10C, 1-1/2-hour fire-rating Listed (Fire-rated (F) models only available in fail-secure mode with 04 & 14 faceplates.)
• CAN/ULC S104, 1-1/2-hour fire-rating Listed (Fire-rated (F) models only available in fail-secure mode with 04 & 14 faceplates.)
• Certified to ANSI/BHMA standard A156.31, Grade 1, endurance 500,000 cycles (Fire-rated (F) models only, 250,000 for other models)

Accessories

• 4/7JIG - Standard profile frame prep jig, aluminum
• LEK01 - 1" lip extension kit for retrofit applications, black finish (not available for F4 fire-rated series)
• LEK02 - 2" lip extension kit for retrofit applications, black finish (not available for F4 fire-rated series)
• LEK03 - 3" lip extension kit for retrofit applications, black finish (not available for F4 fire-rated series)
• SMT-01 - Strike marketing template kit, aluminum
• TP-47-5PK - Trim plates, 5 pack, black finish
• 930-LG - Standard profile latch guard, 32D finish

Applications

• Commercial Centers
• Industrial Buildings
• Educational Facilities
• Retail Outlets
• Health Care Facilities
• Office Complexes

RCI 4319-06-32D Electric Strike

- Finish: Brushed Stainless Steel (32D). .

RCI (Rutherford Controls) 4319-32D Centerline Electric Strike - Fail Safe - Satin Stainless Steel

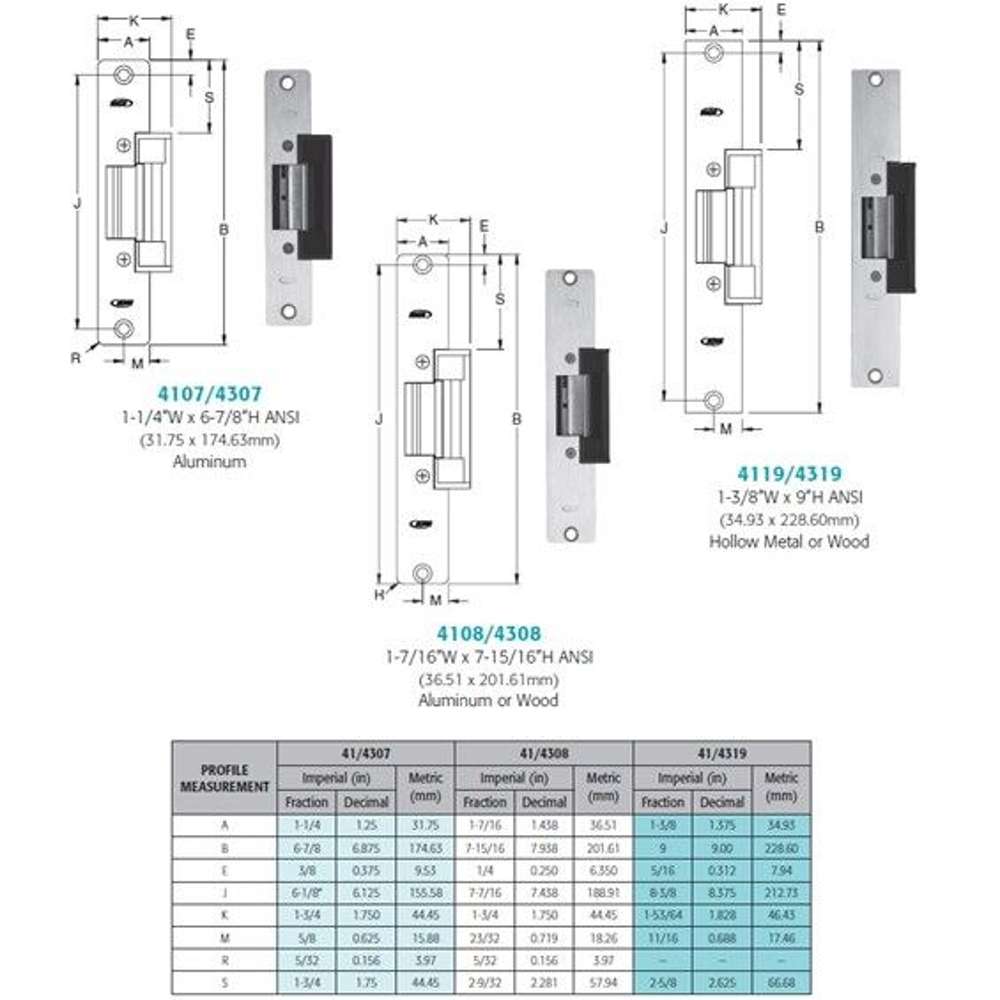

4319: 1-3/8"W x 9"H (34mm x 228mm), Square Corners

Description And Features:

• Mode: Fail Safe
• Strength: 1,500lbf Static, 70ft-lb Dynamic
• Accommodates 3/4" (19mm) latch projection
• 1-1/2" (38mm) cut-out depth accommodates most door frame material types
• Use with wide range of door thicknesses, 1-3/8" to 2-3/8" (35mm-60mm)
• Standard mounting tabs and fasteners included
• Non-handed
• Trim plate included to cover up irregular frame cutout
• Brushed Stainless Steel (32D) finish
• UL 1034 burglary-resistant Listed
• Certified to ANSI/BHMA standard A156.31, Grade 1, endurance 500,000 cycles3
• 3 Year Limited Warranty
