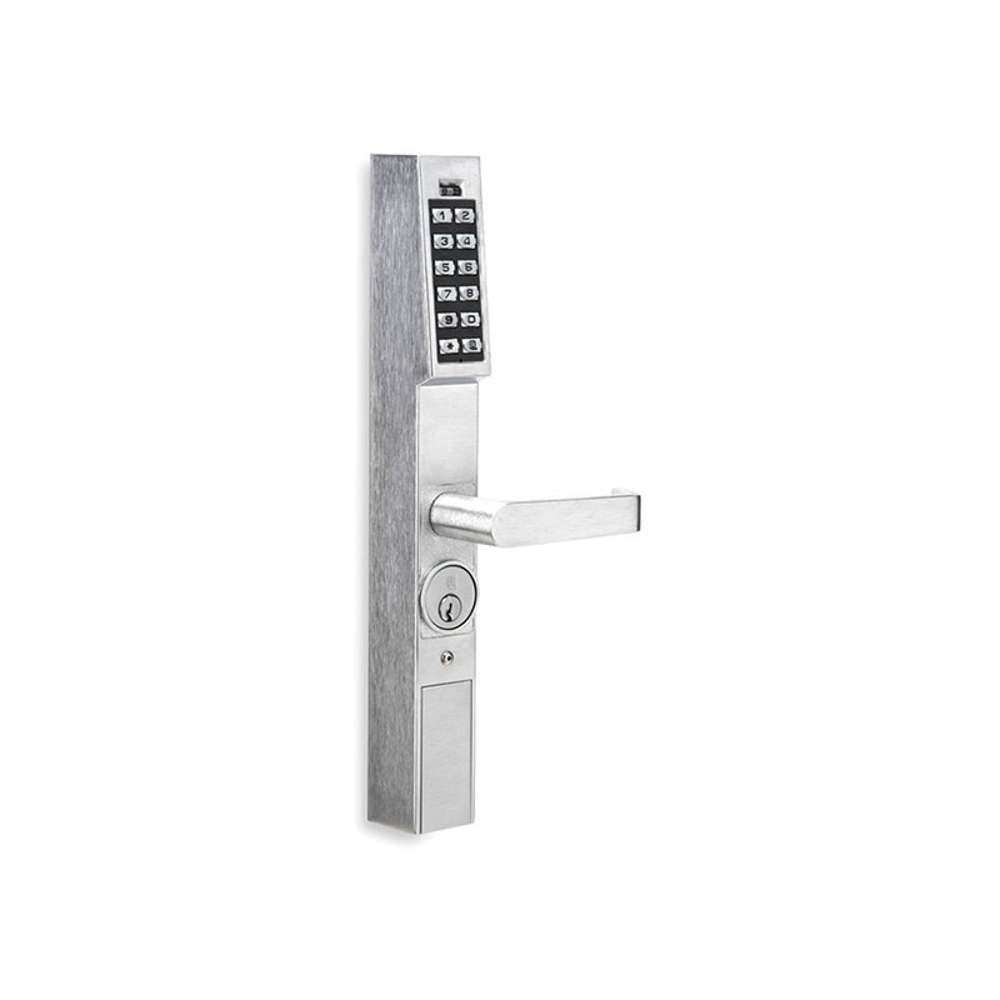

Alarm Lock DL1200ET-26D Pushbutton Exit Trim
Alarm Lock's Trilogy narrow stile exit device trim locks for aluminum door retrofits. Adds vandal-resistant keyless access to panic exit doors. Protects storefronts and managed properties 24/7. Up to 2000 users supported with 3-5 digit access codes and multilevel user hierarchy. Designed with all-metal, vandal-resistant 12-button keypads. Easily installs on most aluminum glass doors. Works with Marks USA M8800, Von Duprin (Von 33 LH (RHR) only), Arrow, DCI and Corbin panic devices.
TECHNICAL DATA
- Wireless standalone locks: Long-life, battery- operated; Includes audible and visual low battery alert. (Uses standard off-the-shelf batteries.)
- Non-handed; fully field-reversible
- Key override; interchangeable cores supported (Corbin/Russwin, Yale, Schlage, Medeco.)
- Mortise Cylinder, 1-1/4” supplied. (Supports 1-1/8, 1-1/4 and 1-3/8”)
- Compact styling 14-3/8”H x 1-5/8”D x 1-3/4”W
- Backsets 31/32”,1-1/8” and 1-1/2” ; Stile thickness 1-3/4”
- Finishes US26D Satin Chrome, US10B Duronodic
