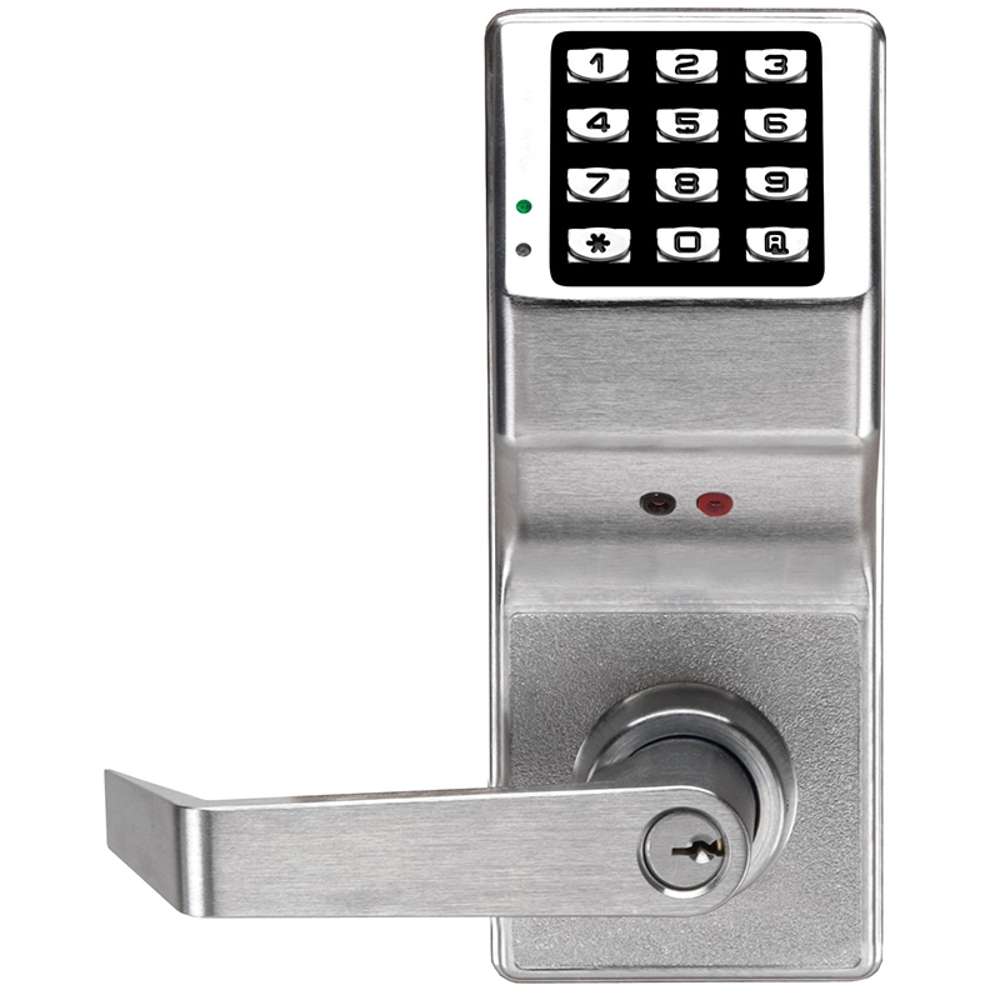

Alarm Lock Trilogy DL2875 - Electronic Digital Cylindrical Pin Lock with Audit Trail and Regal Curved Lever at discounted prices from Locksandsafes.com. This curved lever lock is available in two models, the DL2875 Standard Key Override and the DL2875IC Interchangeable Core. The lock is ideal for use in commercial settings, where it is important to keep track of door activity made by users. The lock can keep track of up to 1000 events/user activities. These logs can then be printed for record keeping purposes.
Both the Alarm Lock DL2875 and the DL2875IC can store up to 200 user codes and 150 scheduled events eliminating the need of complex key management, thereby saving time and money. Give users codes which they can enter on the keypad to gain access to a restricted area. Also, schedule events like automatic locking and unlocking on holidays, weekends or, as and when required.
The DL2875 keypad door lock is weatherproof and comes with a rugged build. The lock is available in three high quality finishes including Satin Chrome, Duronodic and Polished Brass.
Both the Alarm Lock DL2875 and DL2875IC are packed with features, give high performance and are economically priced. These locks are your answer to affordable door security solution.
OPERATIONS: Durable clutch mechanism permits turning lever without retracting latch and reduces stress on lock bodies and spindle. Outside lever free turning in locked position. Entering access code, key bypass, or remote bypass will allow lever to retract latch. Inside lever always instant egress.
TECHNICAL DATA:
KEYPAD: Rugged, vandal-resistant, all metal, 12 button programmable for multi-level access functions including group or individual user codes, master and management codes, passage and emergency or service code, lockout and remote override capability and allowable entry time from 5 to 15 seconds.
DOOR THICKNESS: 1 5/8" to 1 7/8." Other thicknesses, Please contact us.
BACKSET: 2 3/4" Standard. 2 3/8" backset also available.
STANDARD KEY OVERRIDE CYLINDERS: Solid brass 6 pin tumbler cylinder pinned 5, SC1 keyway, furnished in all locks. Additional tailpieces included: HW580 fits Schlage, Corbin/Russwin CL, Sargent 480 Series, ASSA65-611. Model HW620 fits Ilco and Lori cylinders.
AUDIT TRAIL: 1000 entry activity log can be polled to the Data Transfer Module (AL-DTM), any PC using DL-Windows Software, and/or can be on-site printed using the hand-held infrared printer (AL-IR1). Activities included are: unlock/lock events, program mode changes, user entry, keypad lockout, remote release events, unauthorized code attempts, etc.
INTERCHANGEABLE CORE MODELS: Accepts 6 & 7 Pin Cylinders from: Best, Arrow, KSP, Medeco Keymark & Kaba Peaks. Also available IC Core models for Yale, Medeco, Sargent, Corbin/Russwin CL and Schlage. Alarm Lock Tailpiece is supplied; IC Core is not included.
LATCHBOLT: UL Listed, fire rated, 3 hours, 1/2” throw, solid brass, deadlocking. Reversible. Adjustable front for flat or beveled doors.
STRIKE: 1 1/8” x 2 3/4” T strike & 1 1/4” x 4 7/8” ASA strike included. With screws for wood or metal jambs.
LATCH FRONT: 1 1/8” x 2 1/4” wrought brass or stainless steel.
HANDING: Non-handed.
FINISHES: US26D satin chrome, US3 polished brass, 10B Duronodic.
POWER: 5 AA alkaline batteries, supplied. Audible low battery alert, visual and audible entry indicators, unique Flex Drive® motor. 100,000 cycles typical.
DOOR PREP: Standard ANSI A115 Series Prep, modified by adding additional through-bolt holes.
COMPLIANCES: Grade I, heavy duty cylindrical lockset, UL listed to the 10C Positive Pressure Specification and FCC certified. ADA compliant levers.
