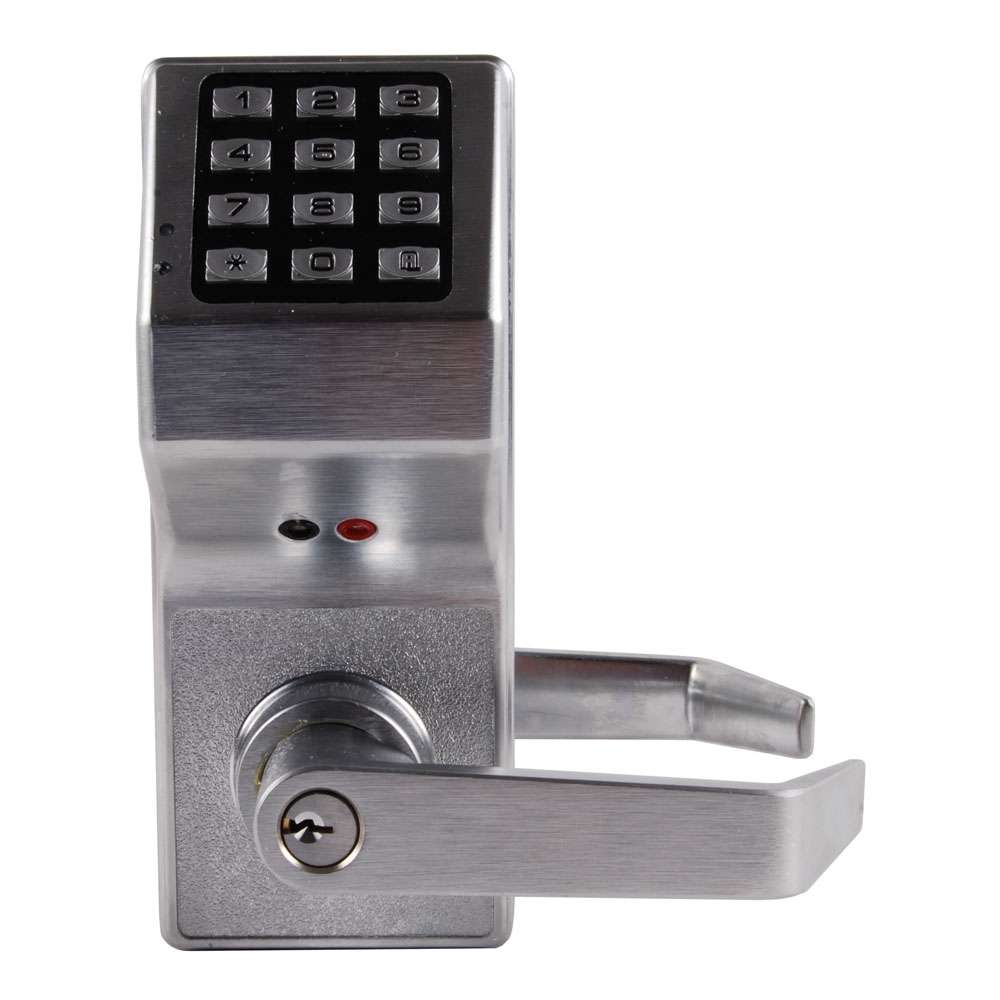

Alarm Lock DL3200-US26D Pushbutton Cylindrical Door Lock
- 2000 User Multilevel Security-Master, Manager, Supervisor, Basic Users
- Program at Keypad or with PC and/or Data-Transfer Module
- 40000 Event Audit Trail Logs with Time/Date Stamp of Access by User
- Create PC Reports or at Hand-Held Wireless Printer
- 150cheduled Lock/Unlock Events
- Quick Passage Mode (without being in Program Mode)
- Weatherproof -31 to +151 Degree
- 5 AA Battery Operated
- 80,000 Cycles, Typical
- Keypad All-Metal, 12 Button
- All Functions Programmed Through Keypad
- Latchbolt Fire Rated 3 , 1/2 Inch Throw Reversible
- Cylinder 6 Pin Solid Brass, SC1 Keyway, Furnished with all Key Override Locks
- Rugged clutch mechanism and Grade 1 durability ensure long life.
- Weatherproof performance, operational temperature range of -31°F to +151°F( -35°C to +66°C).
- Entry allowance from 5-15 seconds.
- Up to 40,000 event audit trail with time/date stamp for a printable record of door access activity by user.
- Real Time Clock allows logging of events to within 1 second of accuracy.
- Programmable relays energize when one or more selected events occur.
- 4 Time-Out functions allow a user to enable other users or unlock the lock for some time period without needing to return to the lock.
- Easy to install in about an hour retrofits most cylindrical locks and digital locks.
- Battery operated; uses 5AA batteries; 80,000 cycles, typical.
Finish: The Alarm Lock DL3200 comes in Satin Chrome (US26D) finish.
Cylinder: 6-Pin Solid Brass, SC1 Schlage Keyway included with Standard model.
IC Core Models: Sold Less Cylinder. Standard model accepts 6 & 7 pin cylinders from Best, Falcon, Arrow, KSP, Medeco Keymark & Kaba Peaks. IC core models prepped for 6 & 7 pin Yale (Y), Medeco (M), Sargent (S), Corbin-Russwin (C) & Schlage (S) are also available through special order.
