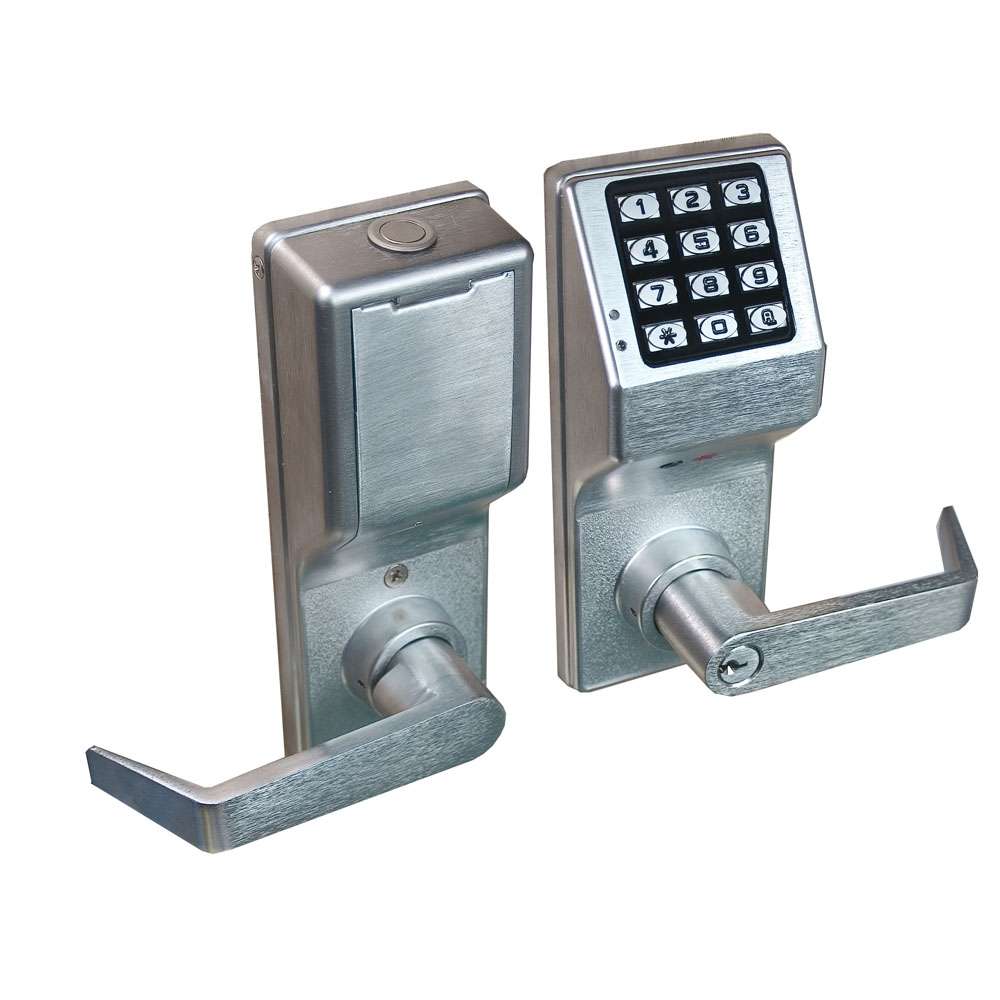

Alarm Lock DL4100-US26D Pushbutton Cylindrical Door Lock
Keypad: Rugged, vandal-resistant, all metal, 12 button programmable for multi-level access functions including group or individual user codes, master and management codes, passage and emergency or service code, lockout and remote override capability and allowable entry time from 5 to 15 seconds.
Operation: Durable clutch mechanism permits turning lever without retracting latch and reduces stress on lock bodies and spindle. Outside lever free turning in locked
position. Entering access code, key bypass, or remote bypass will allow lever to retract latch. Inside lever always instant egress.
Door Thickness: 1 5/8" to 1 7/8." Other thicknesses. Please consult factory.
Backset: 2 3/4" Standard. 2 3/8" backset also available.
Standard Key Override Cylinder: Solid brass 6 pin tumbler cylinder pinned 5, SC1 keyway, furnished in all locks. Additional tailpieces included: HW580 fits Schlage,
Corbin/Russwin CL, Sargent 480 Series, ASSA65-611. Model HW620 fits Ilco and Lori cylinders.
Interchangeable Core Models: Accepts 6 & 7 Pin Cylinders from: Best, Arrow, KSP, Medeco Keymark & Kaba Peaks. Also available IC Core models for Yale, Medeco, Sargent, Corbin/Russwin CL and Schlage. Alarm Lock Tailpiece is supplied; IC Core is not included.
Latchbolt: UL Listed, fire rated, 3 hours, 1/2 throw, solid brass, deadlocking. Reversible. Adjustable front for flat or beveled doors.
Strike: 1 1/8" x 2 3/4" T strike & 1 1/4 x 4 7/8" ASA strike included. With screws for wood or metal jambs.
Latch Front: 1 1/8 x 2 1/4 wrought brass or stainless steel.
Handing: Non-handed.
Door Prep: Standard ANSI A115 Series Prep, modified by adding additional through-bolt holes.
Compliances: Grade I, heavy duty cylindrical lockset, UL listed to the 10C Positive Pressure Specification and FCC certified.
ADA compliant levers.
