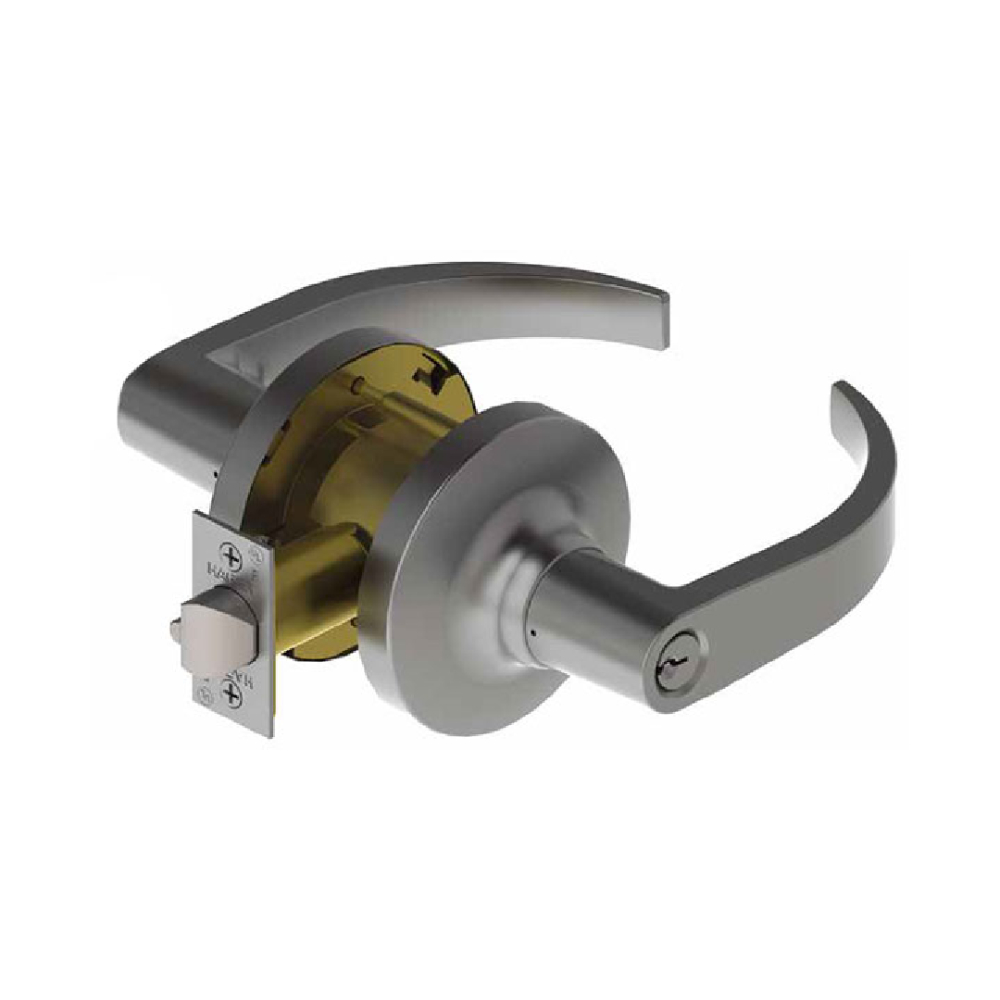

Hager 3480 Electrified Storeroom Lever Series

SKU # HG3480

Hager 3480 Electrified Storeroom Lever Series

- Select Lever: Archer, August, or Withnell

- Select Function: Electrified Locking, Electrified Unlocking, or Request to Exit

US$307.76

Description:

Description:

Hager 3480 Electrified Storeroom Lever Series

Specifications

Applications: Extra Heavy Duty, Commercial, Industrial, Institution
Certifications

  • ADA Compliant ANSI A117.1 Accessibility Code
  • UL/cUL Listed for all functions up to 3 hours "A" label single doors
  • UL10C Positive Pressure Rated
  • BHMA Certified ANSI A156.2, Series 4000, Grade 1
  • ANSI A250.13 Severe Windstorm Compliant
  • Miami Dade County, FL NOA #17-1226.23

Cylinders/Cores

  • Keyed Different - standard
  • Cylinder drilled 6 pin, Keyed 5 pin - standard
  • Other Keying options, including 6 pin keyed, available from factory
  • Zero bit cylinders will be 6 pin keyed
  • SFIC uncombinated or combinated, brass 6 pin or 7 pin cores sold separately
  • LFIC 0-BIt or combinated, brass 6 pin cores sold separately

Door Thickness
1-3/8" - 2" (35 mm - 51 mm)

Electric Modifications
RX (Request to Exit) available with or without EL or EU electrification

Finishes

  • US3, US4, US10B, US26, US26D and BLK
  • Anti-Microbial Coating (US26D finish only)

Functions
Electrified Locking (EL) - Storeroom (F86) or Electrified Unlocking (EU) - Storeroom (F86)

Latchbolt Type

  • 1/2" (13 mm) throw, stainless steel
  • 1-1/8" x 2-1/4" (29 mm x 57 mm) faceplate
  • Deadlocking latchbolt prevents manipulation when door is closed
  • 3/4" (19 mm) throw latchbolt available

Notes

  • SFIC option available (Cores are sold separately - standard)
  • LFIC option available (Cores sold separately - standard)
  • No exposed mounting screws
  • Non-handed

Options

  • Lead Lining
  • Tactile Warning
  • Quick Connect

Strikes

  • 1-1/4" x 4-7/8" (32 mm x 124 mm) ASA strike, Square corner
  • Optional strikes available

Voltage

  • 3480EL/3480EU
  • 12-24V AC/DC (250mA Max in rush, 10mA Max holding)
  • 125 VAC (3 AMP maximum current)
  • 30 VDC (2 AMP maximum current)
  • Wire leads (22 AG current)

Warranty

  • One-Year Electrified components
  • Lifetime on mechanical components

Backsets

  • 2-3/4" (70mm)
  • 2-3/8" (60mm)

Exposed Trim

  • Wrought brass, bronze, and stainless steel
  • Lever is zinc based, plated to match BHMA symbols

Keyway: Schlage C - Standard; Other keyways optional
Lever Options: Archer, August and Withnell
