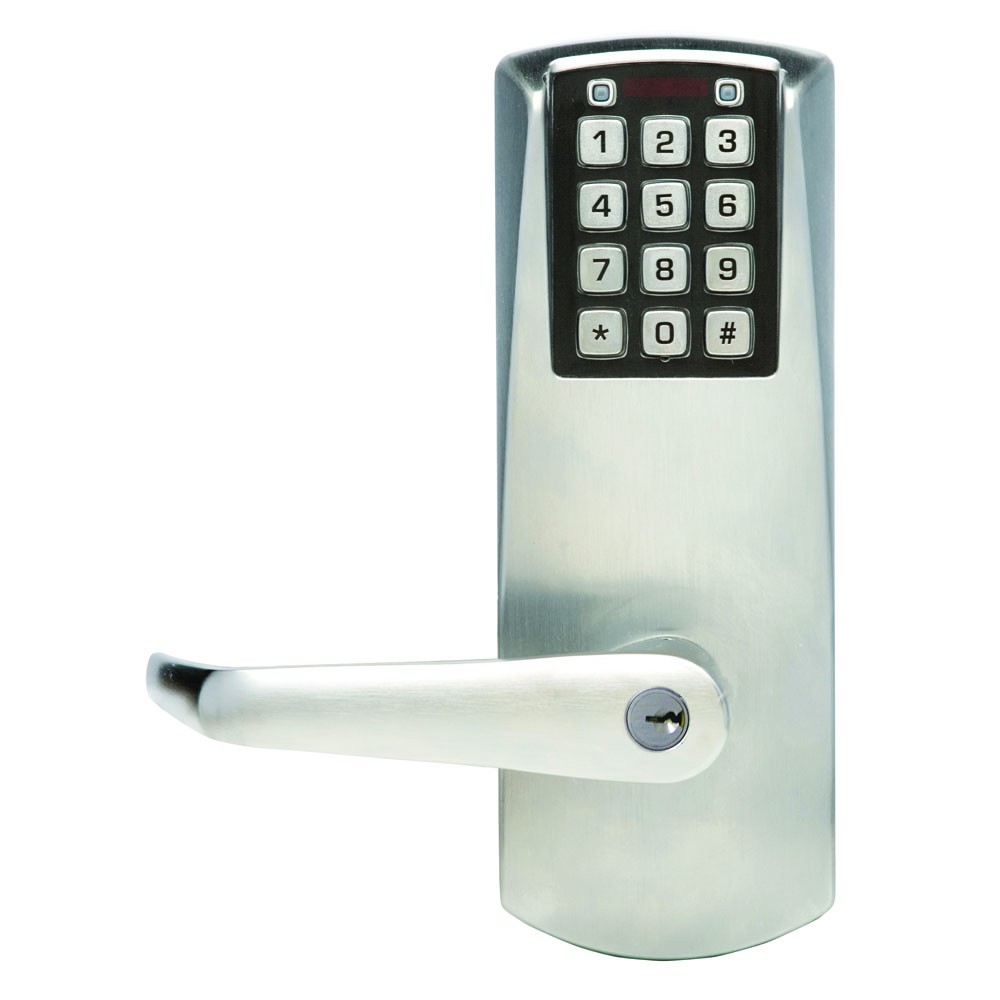

Kaba Access E-Plex Electronic Access Locksets

• No Wires: Requires no wiring to or through the door—eliminates risk of damage from pinched wires that can result in costly callbacks
• Number of Codes: Multiple Users—100 Codes
• Handing: Non-handed; pre-assembled for left-hand door installations—easily changed in the field
• Audit Trail: The most recent 1,000 Events are recorded in memory, including the use of mechanical key override. Software is required to view audit Events.
• Programming: Lock is easily programmed via keypad without removing lock from the door or with optional Microsoft Excel-based software
• Key Override (Optional): • Optional Key-in-Lever cylinder in Schlage "C" Keyway with black Kaba cap • Small format—Best and equivalent (6 or 7-pin length)
• Operation Modes:
  • PIN access
  • Passage—can be toggled on/off or can be pre-programmed to re-lock after a certain number of hours
  • Lockout
• Authority Levels: Five different levels allow who has access to specific lock functions, including: Service Codes—programmed for one-time access or "come-and-go" access for 1 to 24 hours
• User Parameters: Code length—adjustable to accept 4 to 8 digits Anti-tamper lockout—adjustable from 3 to 9 invalid attempts with an adjustable period of 0 to 90 seconds Re-lock time—adjustable from 2 to 20 seconds
• Power: Battery Powered—Batteries located in outside housing; offers quick and easy battery replacements (three AA Alkaline batteries provide up to 100,000 cycles); lock data is maintained if batteries fail.

Mechanical Features

• Construction: Heavy-duty commercial Grade 1 lockset, solid cast exterior housing, solid cast levers, cylindrical drive wear tested for extensive use in indoor and outdoor applications
• Numeric Keypad: Vandal resistant, solid metal pushbuttons
• Handing: Non-handed, pre-assembled for left-hand door installation—easily changed in the field
• Finishes: Satin Chrome 626 (26D) housings and levers. Optional: Satin Brass 606 (04) housings and levers, or Dark Bronze 744 (10B) housings and levers
• Backset: Cylindrical: 2¾" (70 mm) backset, 2⅜" (60 mm) backset Mortise: 2¾" (70 mm) backset
• Strikes: Cylindrical locks packaged standard with both ANSI A115.3 "T" Strike
• Key Override Options
  • Key-in-Lever Cylinder: Kaba 1539 6-pin cylinder—Schlage "C" Keyway
  • Interchangeable Core: Small format—Best and equivalent (6 or 7-pin length); cylinder not included
• Ease of Installation: No wiring to or through the door—no risk of pinched wires
• Door Preparation: Cylindrical—ASA 161 (easily installs on door preparation with three additional through bore holes; wood or metal doors)
• Door Thickness: Cylindrical Model: 1⅜" (35 mm) to 2½" (64 mm); pre-assembled to accommodate doors 1⅝" (41 mm) to 2" (50 mm)
• Items Supplied Include: Cylindrical —Lock assembly, installation manual, template, quick reference guide, operations manual
• Additional Items Supplied with Includes Universal Kaba 1539 6-pin cylinder, two nickel silver keys, and Key-in-Lever Cylinder Model Only: Schlage "C" Keyway
• Accessibility Standard: Americans with Disabilities Act (ADA)
• Fire Rating: UL 10C fire rated
• Durability: ANSI/BHMA Grade 1 Certified (A156.25, A156.2, A156.13, A156.3)
• Environmental: Indoor/Outdoor approved; -31 °F (-35 °C) to 151 °F (66 °C)
