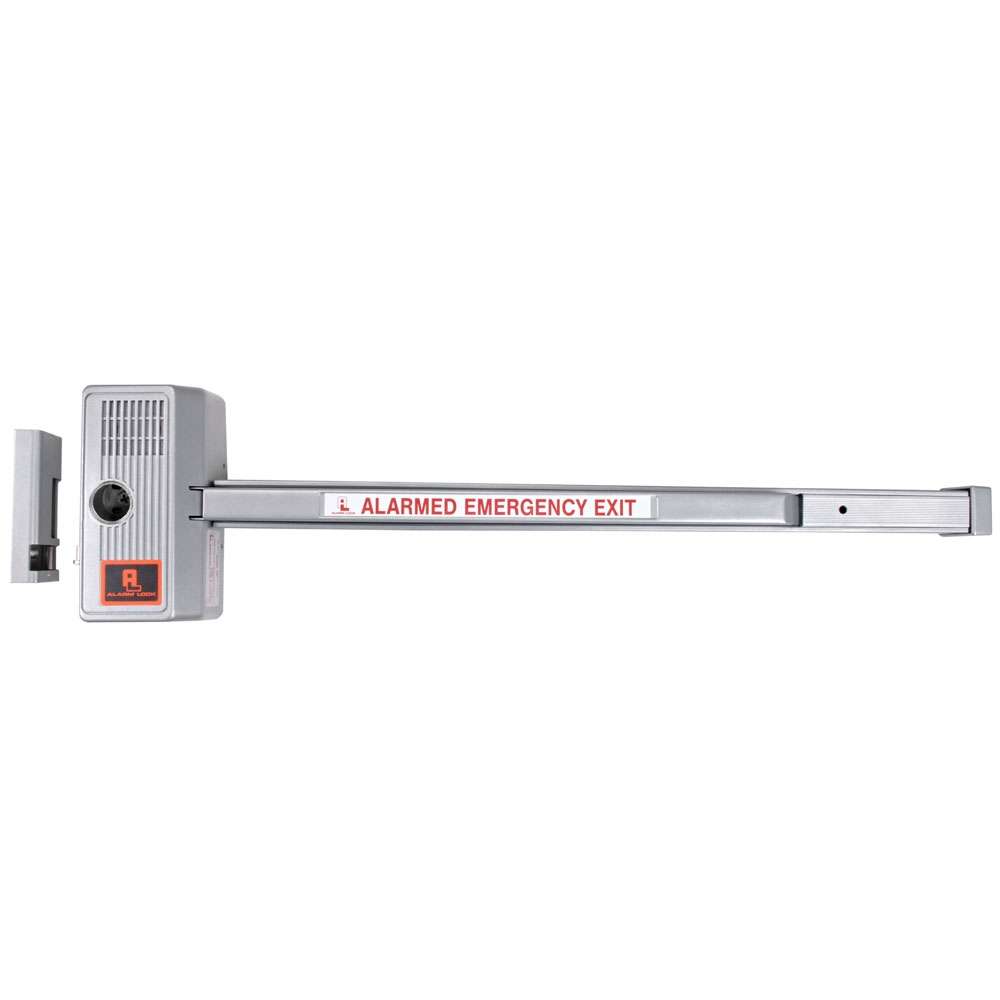

Alarm Lock 715X28X88 Sirenlock Delayed Egress Exit Alarm
Model 715X28X88 is a? non-handed, delayed egress, electronic exit door locking system. Arming is accomplished by actuating the deadbolt using a 1-1/8rim cylinder (not included). When armed, depressing the push bar will release the deadbolt and sound an immediate alarm, however the deadlatch will prevent the door from opening until the 15- second exit delay has expired.
Finish: Satin Aluminum
A standard 9V alkaline battery is provided. This battery must be installed at all times for proper operation of the unit.
A Rim Cylinder is required to operate the alarm (not included)
FEATURES
- 15-second delayed egress
- Meets NFPA101 Life Safety Code
- Local smoke-detector input (easy key reset)
- Selectable alarm: continuous or two-minute shutdown
- Exterior key control (requires additional rim cylinder)
- Audible low-battery indication
- Visual armed indicator LED (on Control Box)
- Piercing electronic siren (95dB at 10 feet)
- Full 1throw deadbolt with rotating steel inserts.
EQUIPMENT SUPPLIED
- The following items are supplied with the product:
- Lock Assembly, with 9V alkaline backup battery
- Single-Door Keeper Assembly
- Push Bar Assembly
- Control Box Assembly
- Power Transformer
- 5-Conductor Cable (10 feet)
- Self-Adhesive Warning Labels required to comply with NFPA 101 Hardware
To comply with National Fire Protection Association Standard NFPA101, this lock must be connected to an approved supervised automatic fire-detection system or sprinkler system that will automatically unlatch the lock instantly in the event of an emergency. See Connection to Remote Life-Safety Equipment.
