Inox ED70RIM3632D ED70 Series Exit Device RIM 36 Stl
Device Functions: Exit device only, trim available separately
Device Lengths:
- 3': 2'2" to 3' (660mm to 914mm) door size
- 4': 2'9" to 4' (838mm to 1219mm) door size
Strikes:
- Top Dull Black Strike (EDLSR-227)
- Bottom Dull Black Strike (EDLSR-221)
Dogging Feature: Hex Key Dogging available on Non-Fire Rated devices only
Dogging Options: Cylinder Dogging available on complete devices only, not as separate kits
Electric Options: Alarm Kit 36" and 48" available
Miscellaneous Options: GBK Glass Bead Kit
Fasteners & Sex Bolts:
- Furnished with wood & machine screws
- Thru-bolts standard on Fire-Rated devices
- Latch Bolt: Stainless Steel 3/4" (19mm) throw
Device Centerline from Finished Floor: 41" (1041mm)

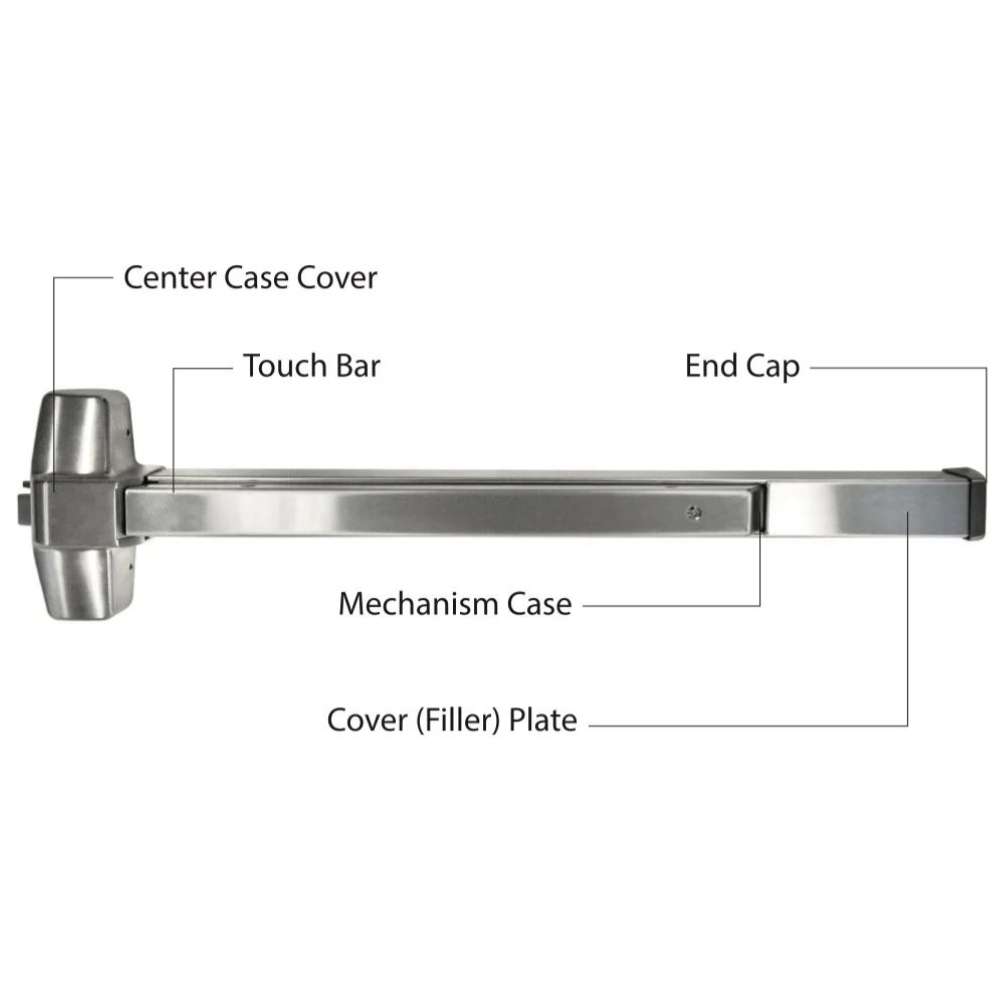

Center Case Dimensions: 7-7/8" x 2-9/16" x 1-7/8" (200mm x 65mm x 48mm)
Mechanism Case Dimensions:1-9/16" w x 2" (41mm x 51mm)
Top & Bottom Latch Case
Standard Panic: 3-15/16" x 2-1/8" x 1-3/8" (100mm x 54mm x 35mm)
Fire Rated: 3-15/16" x 2-11/16" x 2-1/16" (100mm x 68mm x 52mm)
Vertical Rods
- 36" Door: Top Rod - 43-1/4" (1099mm)
- 48" Door: Top Rod - 56-1/16" (1424mm)
Projections:
- Pushbar Neutral 2-1/2" (64mm)
- Pushbar Depressed 1-3/4" (44mm)
Compliance
- ANSI/BHMA A156.3 Grade 1Exit Devices
- ANSI/BHMA A156.29 Exit Lock and Alarm
- UL Listed for ANSI/UL10B and UL10C, CAN/ULC S104 up to 3 Hours
- UBC Standard 7-2 (1997) NFPA 252
- ANSI/UL 305 and CAN/ULC-S132
- NFPA 80 National Fire Protection - Fire Door Assembly
- NFPA101 National Fire Protection - Life Safety
- ANSI/BHMA A156.18 Finishes
- ANSI A117.1 ADA Accessibility
- Electrification - ANSI/UL634, ANSI/UL294, ANSI/UL10C
