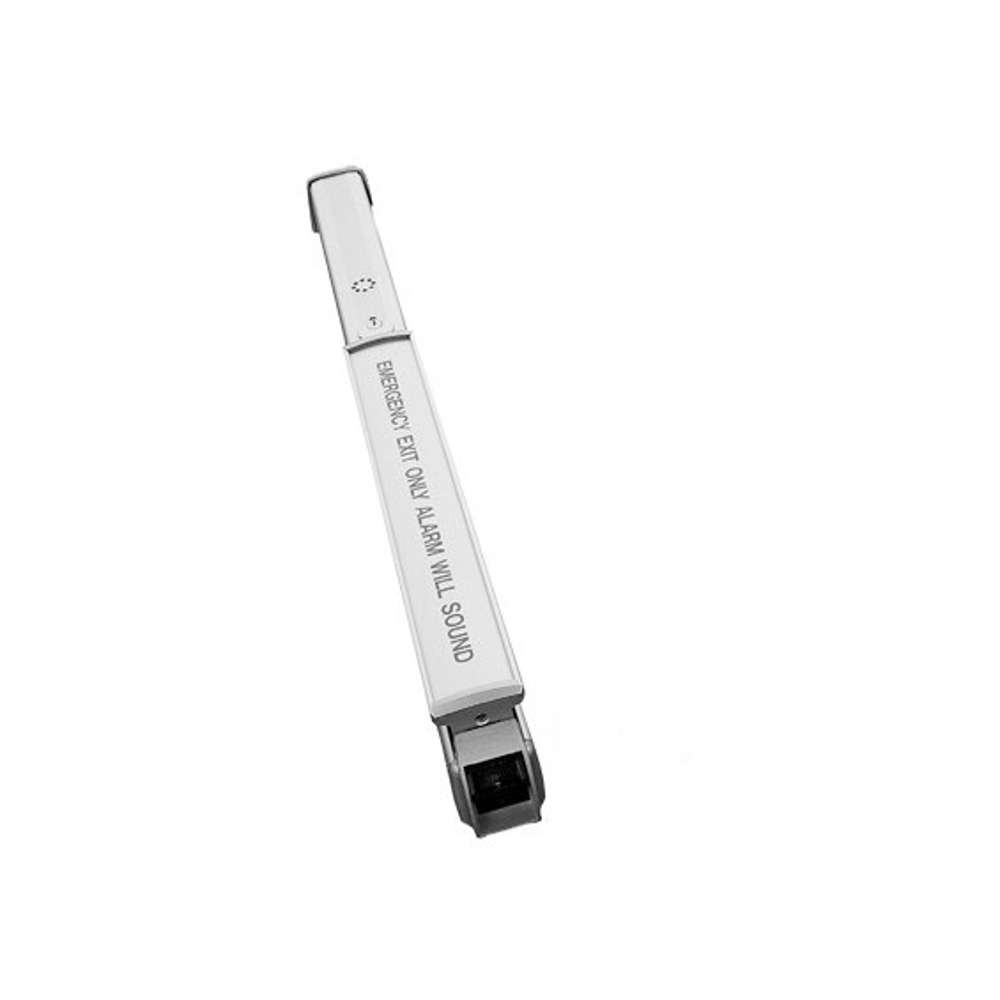

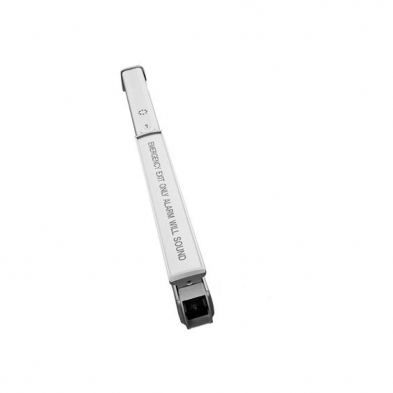

RCI 1200F-X-28 Exit Device

RCI 1200F-X-28 Exit Device

Model 1200 includes a 12⁄24VDC dual voltage continuous-duty solenoid which provides a remote unlock feature for controlled entry.
Field Selectable 12⁄24 VDC (24VDC@0.4A / 12VDC@0.8A)

Options
1200D/1300D - Cam lock dogging
1200F/1300F - Fire labeled exit device, no dogging
10 - Alarm module (9V battery supplied)
20 - 10-26 VDC alarm module (remote power with battery backup; 9V battery supplied)
30 - 10-26 VDC alarm module (remote power only)
SS1 - SPDT Signal Switches
SS2 - Two SPDT Signal Switches
LMS - Lock Monitor Switch
DDS - Double Door Strike

Finishes

• 28 - Aluminum (BHMA 628)
• 40 - Dark Duranodic (BHMA 710)

Trim Options

• 08-L Lever Trim
• 08N-L Narrow stile lever trim
• 08E-L Electrified lever trim
• 08NE-L - Narrow stile electrified lever trim
• 03-P - Pull Trim

RCI 1200F-X-28 Exit Device

1200A(Rim Exit Device No Trim).
1200F (Fire Rated Exit Device No Trim).
1200C (Cylindrical Dog No Trim).

• Weather resistant for outddor use
• Current of less than 800mA @ 12VDC and 400mA @ 24VDC is required to unlock the device or to dog it unlocked. (fire rated devices must be powered through contact of a fire-alram system relay)
• All models re-latch
• Pre-assembled for easy installation
• Camlock and cylinder dogging available (for non-fire labeled doors)
• Choice of 3 alarm modules (standard)
• Standard lengths for 36" (3 feet) and 48" (4 feet) doors
• Can be field cut for undersized doors
• Non-handed for installing on all types of doors, including narrow stile aluminum
• High security, exceeding a 1" deadbolt
