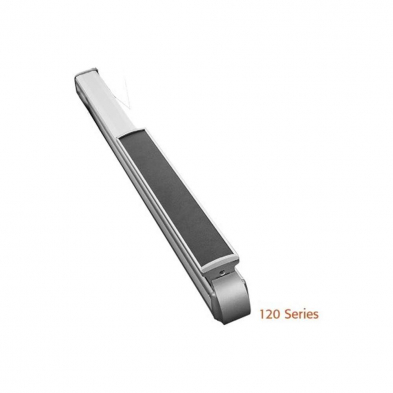

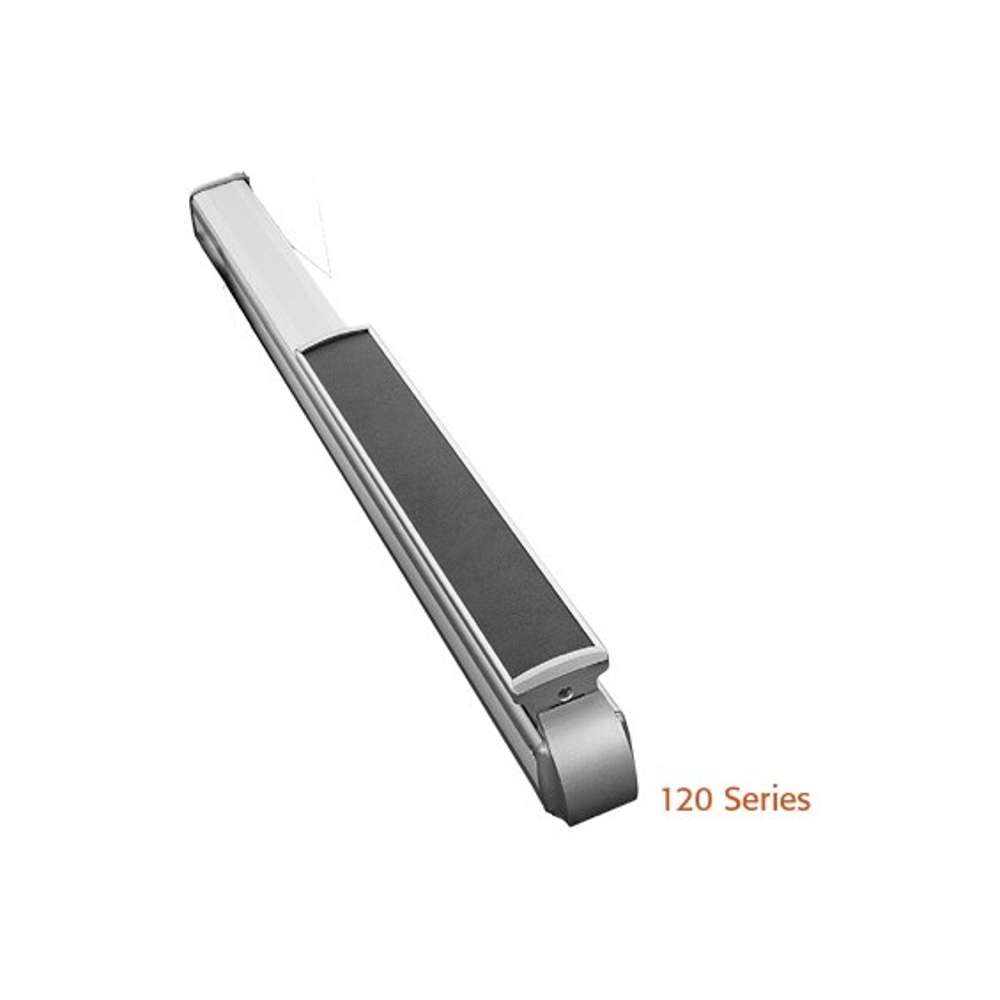

RCI 120A-SS1X28 Exit Device

RCI 120A-SS1X28 Exit Device

RCI 1200 and 1300 Series exit devices resolve the conflict between life safety and security. Both1200 Mechanical and 1300 Electric Series exit devices feature a patented latch that rotates to engage and grip the specially designed strike. This unique interlocking grip action secures the door to the jamb without conventional roller strikes or retracting latches. In addition an interlocking mechanism located in the chassis offers a double interlocking system which makes these exit devices virtually impossible to tamper with, pry or force open. The attractive lever trim can be used on the exterior side of the door for access.

​Specifications
Model - L120D-SS2
Description - Pushbar (No Latch) with (SPDT) Switch and Cam Lock Dog
Door Length - 37 to 48"

• Easy to install and maintain
• No latch or strike required for smooth operation
• Designed for high traffic areas and emergency exits
• Meets or exceeds international building codes
• Sleek and durable design for long-lasting performance

RCI 120A-SS1X28 Exit Device

Function:
120(Switch Bar No Latch or Strike).

-Brushed Anodized Aluminum (US28) or Brushed Anodized Dark Bronze (313).

• Pushbar, no latch or strike
• Ideal for easy egress to release electromagnetic lock
• Specify SS1 (SPDT) 3A@30VDC (Inductive), 4A@30VDC (Resistive)
• Specify SS2 (Two SPDT) 3A@30VDC (Inductive), 4A@30VDC (Resistive)
• Standard lengths for 36" (3 feet) and 48" (4 feet) doors
• Can be field cut for undersized doors
