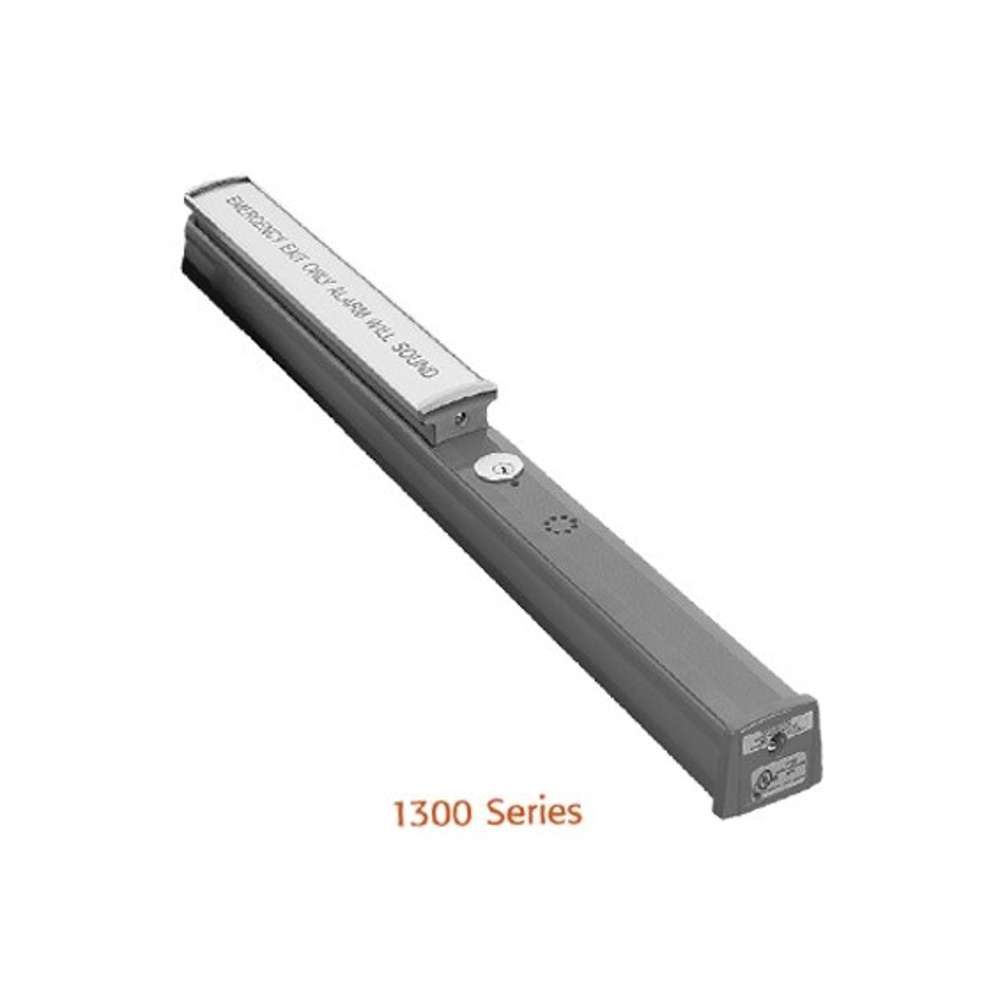

RCI L1300F-X-40 Electrified Rim Exit Bar

RCI L1300F-X-40 Electrified Rim Exit Bar

RCI 120 Series; 1200 Series; 1300 Series Exit Devices are currently not available.

Please contact your dormakaba representative, or customer service, for information on our alternate options.

1300A(Rim Exit Device No Trim).
1300F(Fire Rated Exit Device No Trim).
1300C(Cylindrical Dog No Trim).

• Model 1300 includes a 12⁄24VDC dual voltage continuous-duty solenoid which provides a remote unlock feature for controlled entry.
• Field Selectable 12⁄24 VDC (24VDC@0.4A / 12VDC@0.8A)
• Plus All The Same Features As The 1200 Mechanical Rim Exit Devices:
• Weather resistant for outddor use
• Current of less than 800mA @ 12VDC and 400mA @ 24VDC is required to unlock the device or to dog it unlocked. (fire rated devices must be powered through contact of a fire-alram system relay)
• All models re-latch
• Pre-assembled for easy installation
• Camlock and cylinder dogging available (for non-fire labeled doors)
• Choice of 3 alarm modules (standard)
• Standard lengths for 36" (3 feet) and 48" (4 feet) doors
• Can be field cut for undersized doors
• Non-handed for installing on all types of doors, including narrow stile aluminum
• High security, exceeding a 1" deadbolt
• Made in the USA
