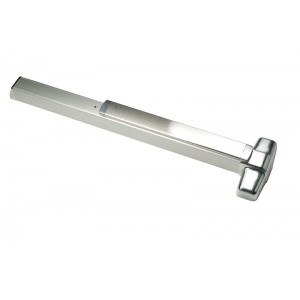

Von Duprin 9847EO-3-313 Concealed Vertical Rod Exit Device
Von Duprin 9847EO / 9947EO Concealed Vertical Rod Device - Exit Only
9847/9947 concealed vertical rod device for use on single or double metal doors, UL listed for Panic Exit Hardware.
Devices are ANSI A156.3 2001 Grade 1.
Device Handing: Non-Handed.
Device Lengths:
- 3' (914mm): 2'4' to 3' (711mm to 914 mm) Door Size.
- 4' (1219mm): 2'10" to 4' (864 mm to 1219 mm) Door Size.
Door Height:
Vertical Rods: Round 2-piece adjustable rods Top rod adjustable from 6'8" (2027mm) to 8'4"(2533mm). Bottom rod adjustable 35-5/8" (905 mm) to 49-5/8" (1260 mm). Extension rod kits available for doors over 8'4" (2533mm).
Dogging Feature: Hex key dogging standard.
Latch Bolt: Deadlocking Top & Bottom Bolt, 5/8" (16mm) throw.
Strike: Top - 338 Unfinished, Bottom 385A - Unfinished.
Fasteners: Includes screw pack for 1-3/4" (44mm) and 2-1/4" (57mm) thick metal doors. Optional 425 SNB available.
Finishes: US3 - Polished Brass , US4 - Dull Brass, US10 - Dull Bronze, US15 - Satin Nickel, US26 - Polished Chromium, US26D - Dull Chromium, US28 - Anodized Aluminum, 313 - Duranodic Dark Bronze, 315 - Black, US32D - Satin Stainless Steel available with 98 Series only.
Dimensions:
Device lengths:
- 3' 2'4' to 3' (711mm to 914 mm) Door Size.
- 4' 2'10" to 4' (864 mm to 1219 mm) Door Size.
- Device Centerline from Finished Floor: 39-5/8" (1006 mm).
Center Case Dimensions: 8" x 2-3/4" x 2-3/8(203mm x 70mm x 60mm).
Mechanism Case Dimensions: 2-1/4" x 2-1/4" (57mm x 57mm).
Top & Bottom Latch Case: 4-1/2" x 2-1/2" x 1-1/2" (114mm x 54mm x 38mm).
Projection:
- Pushbar Neutral 3-13/16" (97 mm).
- Pushbar Depressed 3-1/16" (78 mm).
All 98 and 99 series exit devices are UL listed for Panic Hardware or Fire Hardware, and are certified to ANSI A156.3, 2001, Grade 1
