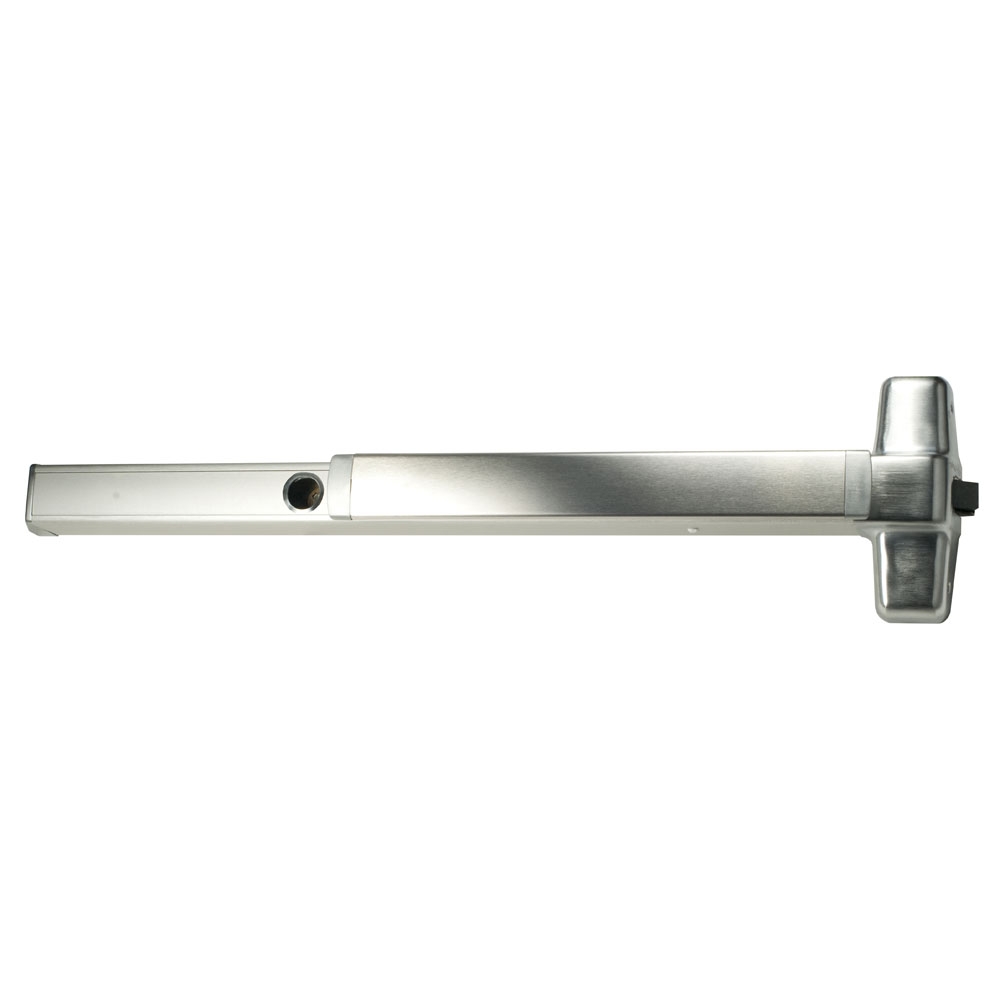

Von Duprin CD98EO-3-26D Rim Exit Device, Exit Only
Heavy-duty high-performance exit devices with many customizable options.
Von Duprin's 98 Series Exit Devices are wide stile, heavy-duty push pads. They are certified to the maximum industry standards and ideal for use in schools, hospitals and government buildings.
Specifications:
Device lengths:
- 3' Device, 2'4' to 3' (711mm to 914mm) Door size
- 4' Device, 2'10" to 4' (864mm to 1219mm) Door size
Device centerline from finished floor:
- 39 13⁄16" (1011mm)
- 39 11⁄16" (1008mm) with mullion
Center case:
- 8" x 2 3⁄4" x2 3⁄8" (203mm x 70mm x 60mm)
Mechanism case:
- 2 1⁄4" x 2 1⁄4" (57mm x 57mm)
Latch Bolt:
3/4" (19mm) throw latch bolt
Strike:
- Device is furnished with standard 299 strike in dull black finish
Dogging:
- Hex key dogging Comes standard on 98/99 exit devices
Projection:
- Pushbar neutral - 3 13/16" (97mm)
- Pushbar depressed - 3 1/16" (78mm)
Latch bolt Deadlocking:
- 3⁄4" (19mm) throw
Handing:
- Non handed
Possible Finishes:
- 605, 606, 612, 625, 626/626AM, 628, 710, 711 & 643e (619 and 630 available with 98 Series only)
Fasteners and sex bolts (SNB):
- Includes screw pack for 1 3⁄4" (44mm) and 2 1⁄4" (57mm) thick metal or wood doors (Optional 425 SNB available)
