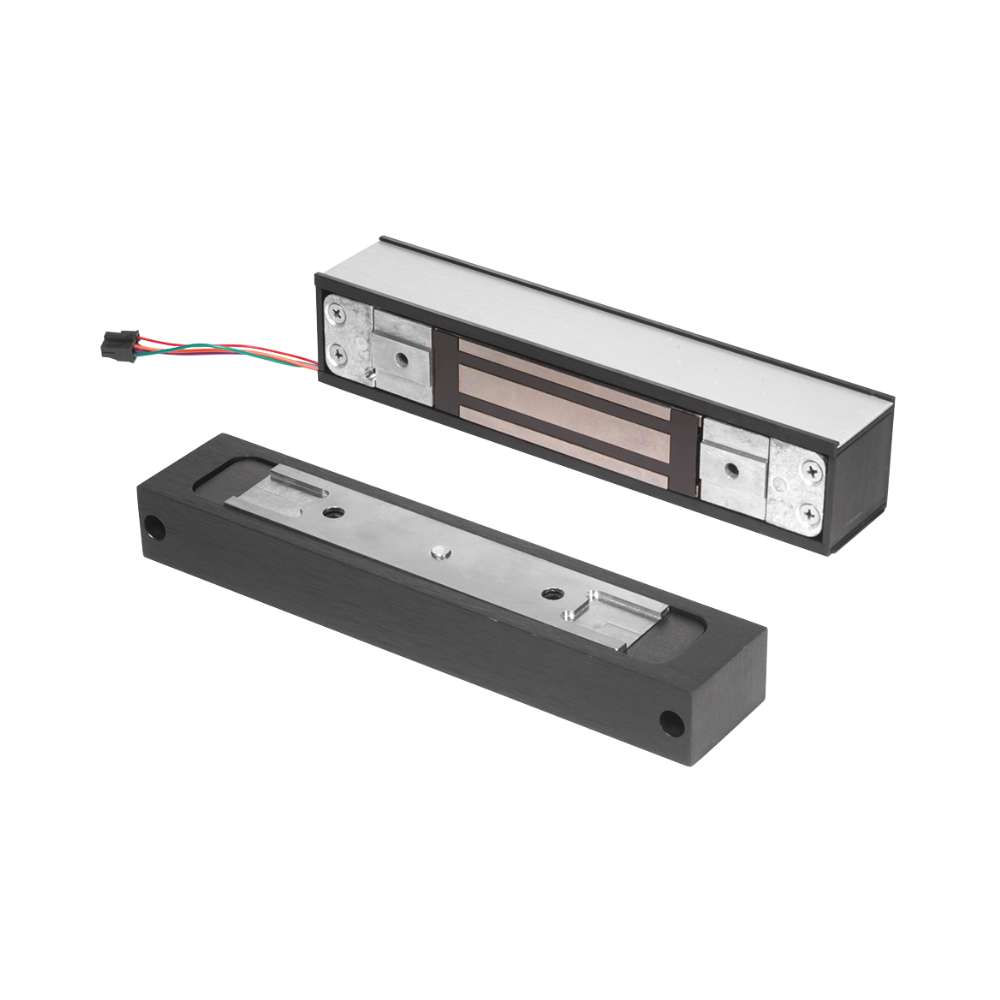

Schlage Electronics GF3000BRD-DSM/MBS Mortise Shear Lock
The Schlage Electronics GF3000BRD-DSM/MBS Mortise Shear Lock is a high-security electromagnetic lock designed for bottom rail mounting, ideal for commercial-grade doors. Here are its key features and specifications:
- Key Features:
High Holding Force: The GF3000BRD offers a holding force of 3000 lbs, ensuring robust security for high-risk areas.
- Advanced Electronics: Features a microprocessor-based control module that automatically senses and adjusts input voltage (12/24 VDC), supports auto-relocking, and includes an adjustable relock time delay (0-30 seconds).
- Concealed Locking Mechanism: The lock is designed to be mortised into the bottom rail of the door, providing a concealed and secure installation that is aesthetically pleasing and secure.
- Door Status Monitoring: Includes a Door Status Monitor (DSM) to sense the open/closed position of the door, and a Magnetic Bond Sensor (MBS) to monitor the secure/not secure condition of the lock.
- Compliance and Certification: Meets UL 10C for positive pressure fire tests, ANSI/BHMA A156.23 Grade 1, cUL, and CSFM standards, making it suitable for fire-rated door assemblies.
Specifications:
- Power Requirements: Operates at 0.90 amp at 12VDC and 0.45 amp at 24VDC.
Dimensions: Lock length of 9.5 inches, height of 1.5 inches, and depth of 1.5 inches.
- Materials: Anodized aluminum housing for durability and compatibility with various door materials.
Temperature Range: Suitable for low-temperature operations, enhancing its application in diverse environments.
The GF3000BRD-DSM/MBS is particularly suited for installations where aesthetic and security considerations are paramount, such as commercial buildings and high-security facilities. Its bottom rail mounting option makes it ideal for doors without a top rail, providing a versatile solution for various door types.
