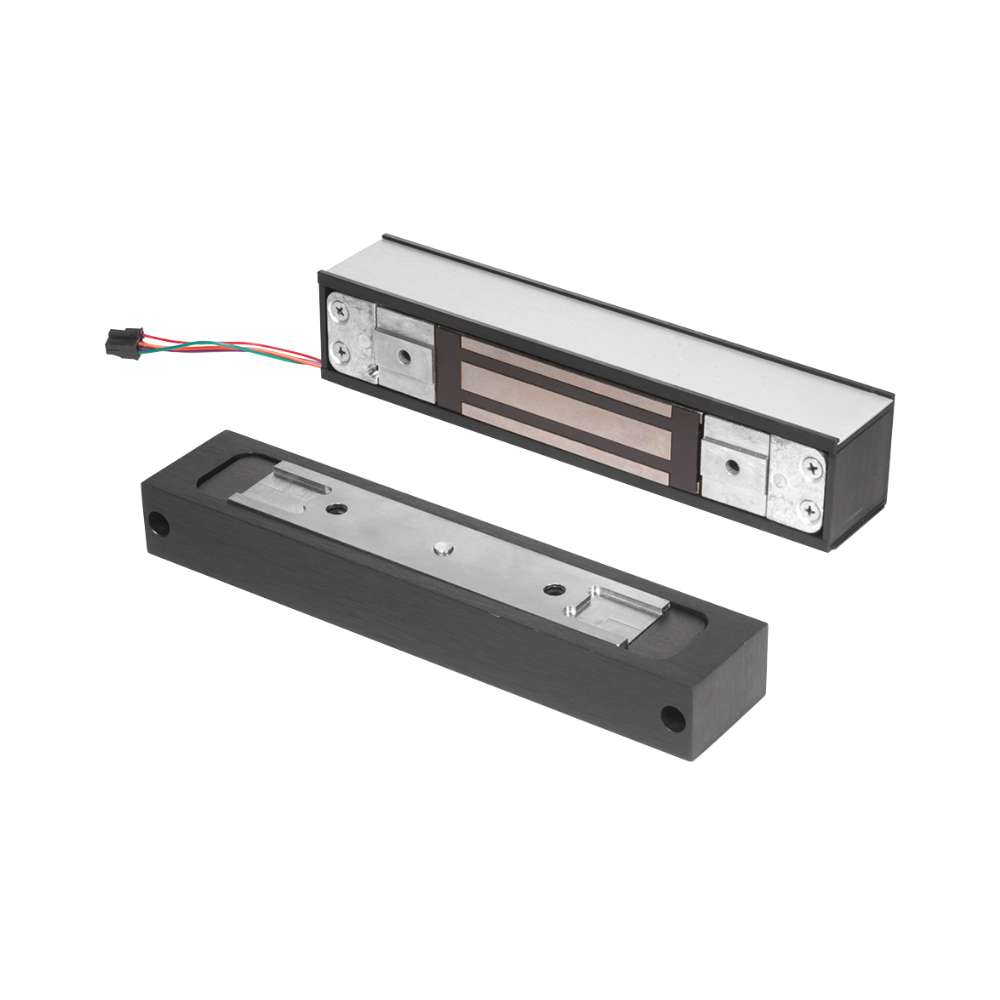

Schlage Electronics GF3000 Mortise Mounted Shear Lock
The Schlage Electronics GF3000 Mortise Mounted Shear Lock is a high-security electromagnetic lock designed for maximum security applications. Here are its key features and specifications:
Key Features:
- High Holding Force: The GF3000 provides a holding force of 3000 lbs, ensuring robust security.
- Advanced Electronics: Equipped with a microprocessor-based control module that offers advanced electronic features such as auto-sensing voltage (12/24 VDC), auto-relocking, and adjustable relock time delay (0-30 seconds).
- Flexible Mounting: Features a patented design with locking tabs on the magnet assembly and mating grooves in the armature plate, allowing for some movement and accommodating door and frame shifts.
- Optional Features: Includes options for a Magnetic Bond Sensor (MBS) and Door Status Monitor (DSM) to monitor the secure/not secure condition and door open/closed position.
- Compliance and Certification: Meets UL 10C positive pressure fire tests, ANSI/BHMA A156.23 Grade 1, cUL, and CSFM standards, ensuring it is suitable for use on fire-labeled openings.
Specifications:
- Current Draw: 0.90 amp at 12VDC and 0.45 amp at 24VDC.
- Dimensions: Lock length of 9.5 inches, lock height of 1.5 inches, and lock depth of 1.5 inches.
- Materials: Anodized aluminum housing for durability and aesthetic compatibility.
- Operating Temperature: Designed for low-temperature operation, making it suitable for various environmental conditions.
The GF3000 is ideal for use on commercial-grade hollow metal doors, frames, and glass doors with top rails, providing a concealed locking mechanism that enhances both security and appearance. This lock is particularly beneficial in applications where aesthetic and security considerations are paramount, such as in high-security facilities and commercial buildings
