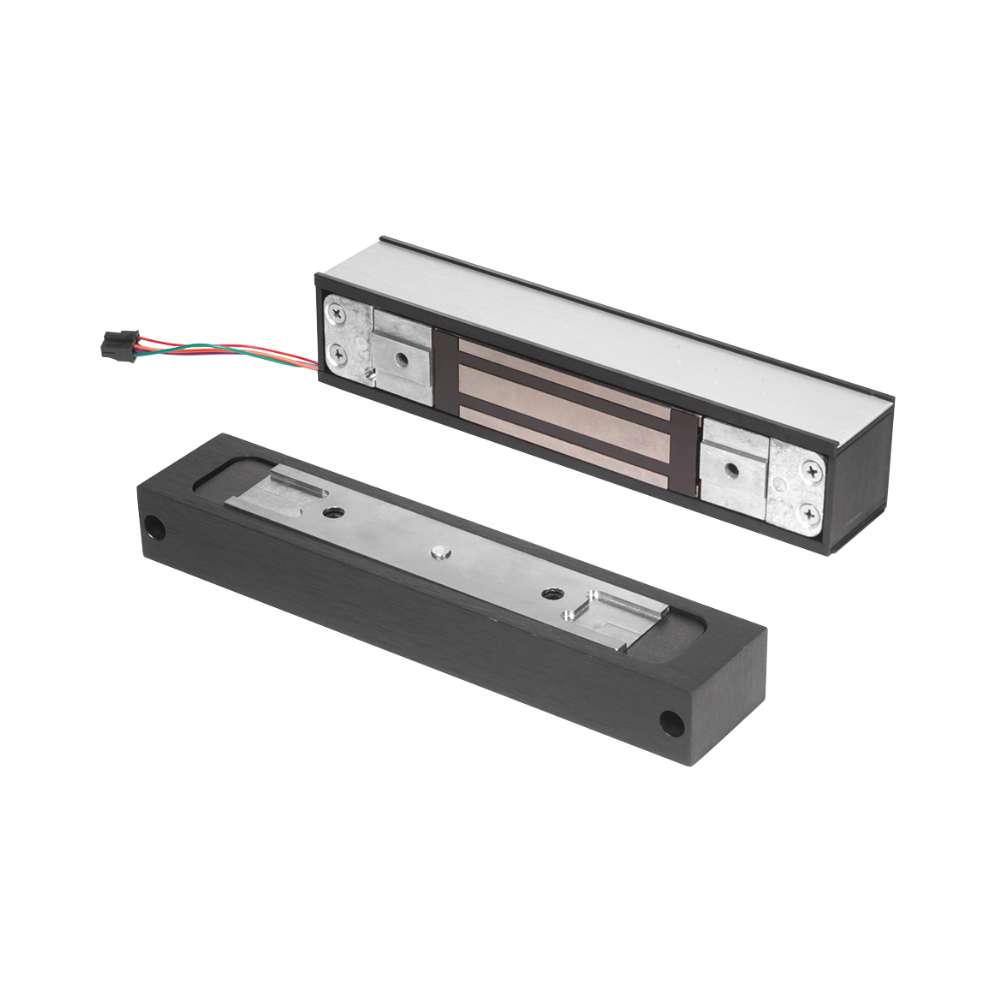

The Schlage Electronics GF3000SM Surface Mounted Shear Lock is a highly secure electromagnetic lock designed for maximum security applications. Here are the key features and specifications:
Key Features:
- High Holding Force: Provides a holding force of 3000 lbs, ensuring robust security for high-risk areas.
- Advanced Electronics: Includes a microprocessor-based control module that automatically senses and adjusts input voltage (12/24 VDC). It features an adjustable relock time delay and automatic relocking.
- Monitoring Capabilities: Optional Door Status Monitor (DSM) and Magnetic Bond Sensor (MBS) allow monitoring of the door's open/closed status and the lock's secure/not secure condition.
- Surface Mount Design: Suitable for surface mounting, which simplifies installation, particularly for outswinging doors. The low-profile design enhances the aesthetic appeal while providing maximum security.
- Compliance and Certification: Meets UL 10C positive pressure fire tests, ANSI/BHMA A156.23 Grade 1, cUL, and CSFM standards. It also features the ability to jump a 1/4" gap without in-rush current.
Specifications:
- Power Requirements: 0.90 amp at 12VDC and 0.45 amp at 24VDC.
- Dimensions: Lock length of 9.5 inches, height of 1.5 inches, and depth of 1.5 inches.
- Operating Temperature: Designed for low-temperature operation, suitable for various environmental conditions.
The GF3000SM is ideal for commercial-grade doors, providing a combination of security, advanced monitoring, and ease of installation. Its concealed locking mechanism and robust construction make it a top choice for high-security facilities.
