Schlage Electronics GF3000TJ

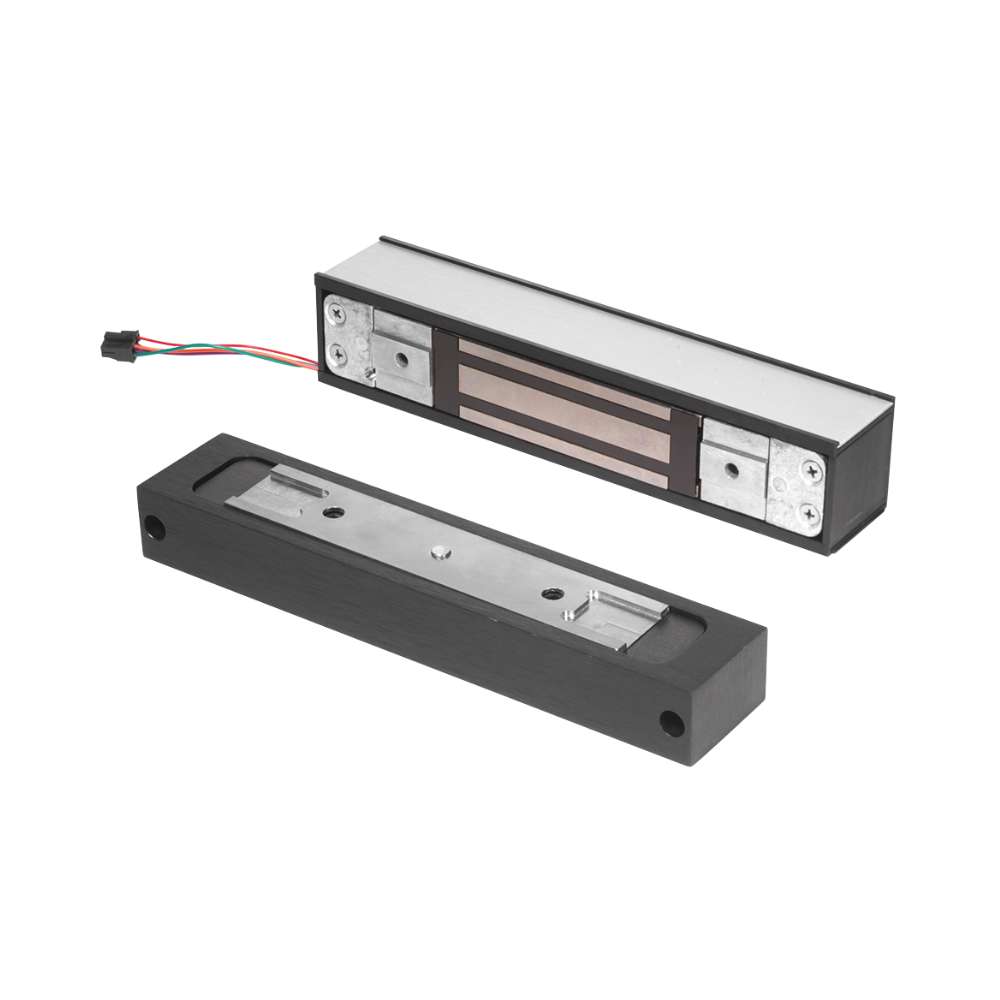

The Schlage Electronics GF3000TJ Surface Mounted Shear Lock is designed for top jamb mounting and provides robust security with advanced features suitable for high-risk environments. Here are the key features and specifications:
Key Features:
- High Holding Force: The GF3000TJ offers a substantial holding force of 3000 lbs, ensuring maximum security.
- Advanced Electronics: The lock features a microprocessor-controlled module that automatically senses and adjusts input voltage (12/24 VDC). It includes an automatic relock switch and adjustable relock time delay (0-30 seconds).
- Monitoring Capabilities: Optional Door Status Monitor (DSM) and Magnetic Bond Sensor (MBS) allow for monitoring the door's open/closed status and the lock's secure/not secure condition.
Surface Mount Design: The low-profile surface mount design is ideal for inswinging doors, providing a sleek and secure locking solution without the need for brackets.
- Compliance and Certification: Meets UL 10C for positive pressure fire tests, ANSI/BHMA A156.23 Grade 1, cUL, and CSFM standards, making it suitable for fire-rated door assemblies.
Specifications:
- Power Requirements: 0.90 amp at 12VDC and 0.45 amp at 24VDC.
- Dimensions: The lock measures 9.81 inches in length, 1.25 inches in height, and 1.5 inches in depth for the magnet housing, with an armature plate measuring 8.38 inches in length, 1.38 inches in width, and 0.5 inches in depth.
- Operating Temperature: Designed for low-temperature operation, ensuring versatility across different environmental conditions.
The GF3000TJ is particularly suitable for commercial-grade quality hollow metal doors and frames, as well as glass doors with top rails. It provides a combination of robust security, advanced monitoring, and ease of installation, making it an excellent choice for enhancing access control in high-security facilities.
