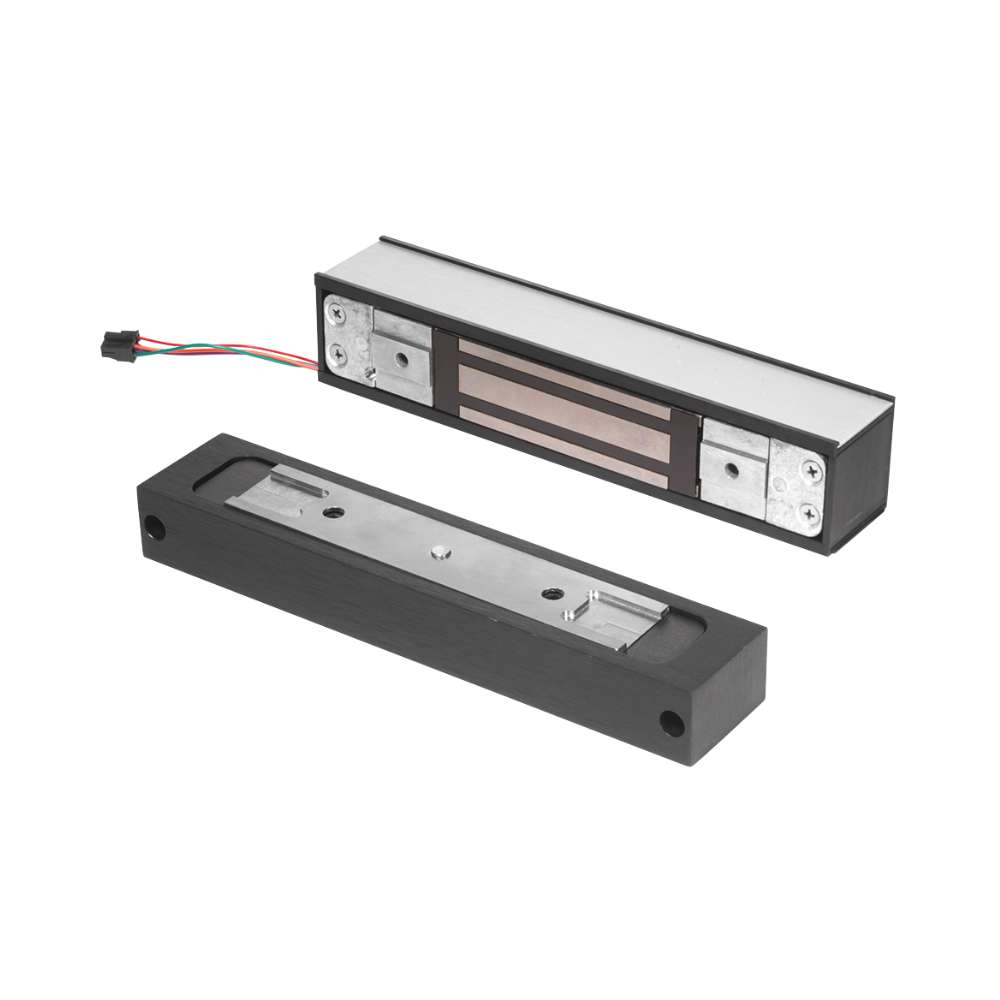

Schlage Electronics GF3000TRD Mortise Mounted Shear Lock
The Schlage Electronics GF3000TRD Mortise Mounted Shear Lock is designed to provide high security with advanced electronic features, making it suitable for commercial-grade applications. Here are the key features and specifications:
Key Features:
- High Holding Force: The GF3000TRD offers a holding force of 3000 lbs, ensuring robust security for high-risk areas.
- Advanced Electronics: It features a microprocessor-based control module that automatically senses and adjusts input voltage (12/24 VDC). It includes an automatic relock switch and an adjustable relock time delay (0-30 seconds).
- Monitoring Capabilities: The lock includes optional Door Status Monitor (DSM) and Magnetic Bond Sensor (MBS) to monitor the door's open/closed status and the lock's secure/not secure condition.
- Concealed Installation: The mortise design allows for a fully concealed locking mechanism, enhancing both security and aesthetics.
- Top Rail Mounting: Specifically designed for installation on the top rail of doors, which is beneficial in situations where the top of the door is not accessible for air gap adjustment after installation. The armature mounts into the top of the door or top rail, and the magnet mounts into the header or frame.
- Compliance and Certification: The GF3000TRD meets UL 10C for positive pressure fire tests, ANSI/BHMA A156.23 Grade 1, cUL, and CSFM standards, making it suitable for use on fire-rated door assemblies.
Specifications:
- Power Requirements: 0.90 amp at 12VDC and 0.45 amp at 24VDC.
- Dimensions: The lock measures 9.5 inches in length, 1.5 inches in height, and 1.5 inches in depth.
- Operating Temperature: Designed for low-temperature operation, making it suitable for various environmental conditions.
The GF3000TRD is ideal for commercial-grade quality hollow metal doors and frames, as well as herculite doors with top rails. It provides a combination of high security, advanced electronic features, and comprehensive monitoring capabilities.
