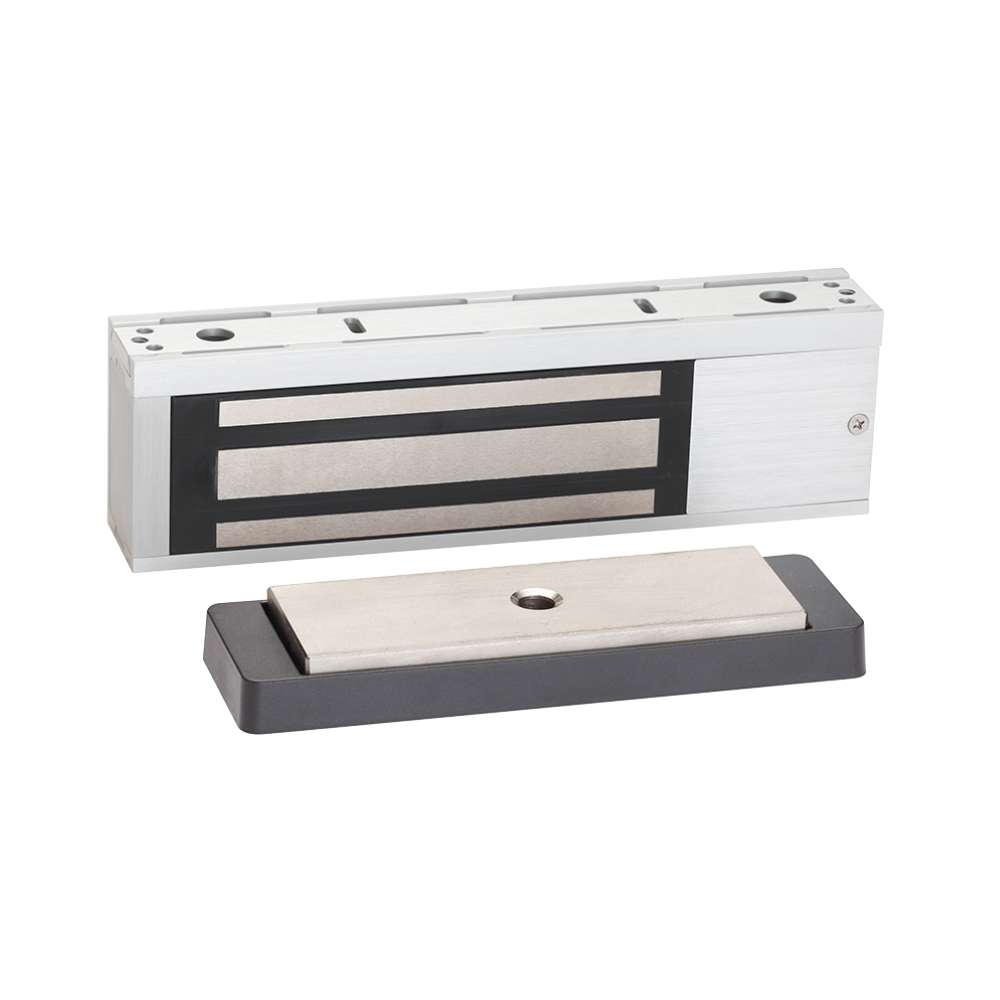

Schlage Electronics M420 Electromagnetic Lock
The Schlage Electronics M420 Electromagnetic Lock is a robust, easy-to-install security solution designed for high-traffic applications. This lock is part of the M400 Series, known for their reliability and enhanced security features.
All Schlage electromagnetic locks come with a limited lifetime warranty on the magnetic coil assembly for added confidence in the longevity of these robust products.
Key Features and Specifications
- Holding Force: The M420 offers a holding force of 500 pounds, ensuring a high level of security.
- Voltage: It features automatic voltage selection (AVS) and operates on both 12VDC and 24VDC, with a current draw of 750 mA at 12VDC and 380 mA at 24VDC.
- Bayonet Mounting: This unique feature allows for hands-free installation, making the setup process simpler and more efficient.
- Non-Handed and Symmetrical Design: This design allows the lock to be installed in any orientation without the need for door handing adjustments, providing versatility in placement.
- Integrated Features in M420P Model: The M420P includes a Magnetic Bond Sensor (MBS) for monitoring the strength of the magnetic bond, a Door Position Switch (DPS) to monitor door status, and a Relock Time Delay (RTD) adjustable from 0.5 to 30 seconds.
- Certifications: The lock is certified to meet UL1034 burglary-resistant standards, UL10C for positive pressure fire tests, and ANSI/BHMA A156.23 Grade 1 requirements, ensuring it meets high security and safety standards.
- Dimensions: The lock measures 9 inches in length, 2-1/2 inches in height, and 1-3/8 inches in depth.
Applications
The M420 is suitable for securing single outswinging doors in various environments such as commercial buildings, healthcare facilities, educational institutions, and government buildings. It integrates seamlessly with access control systems, enhancing security in high-traffic areas.
