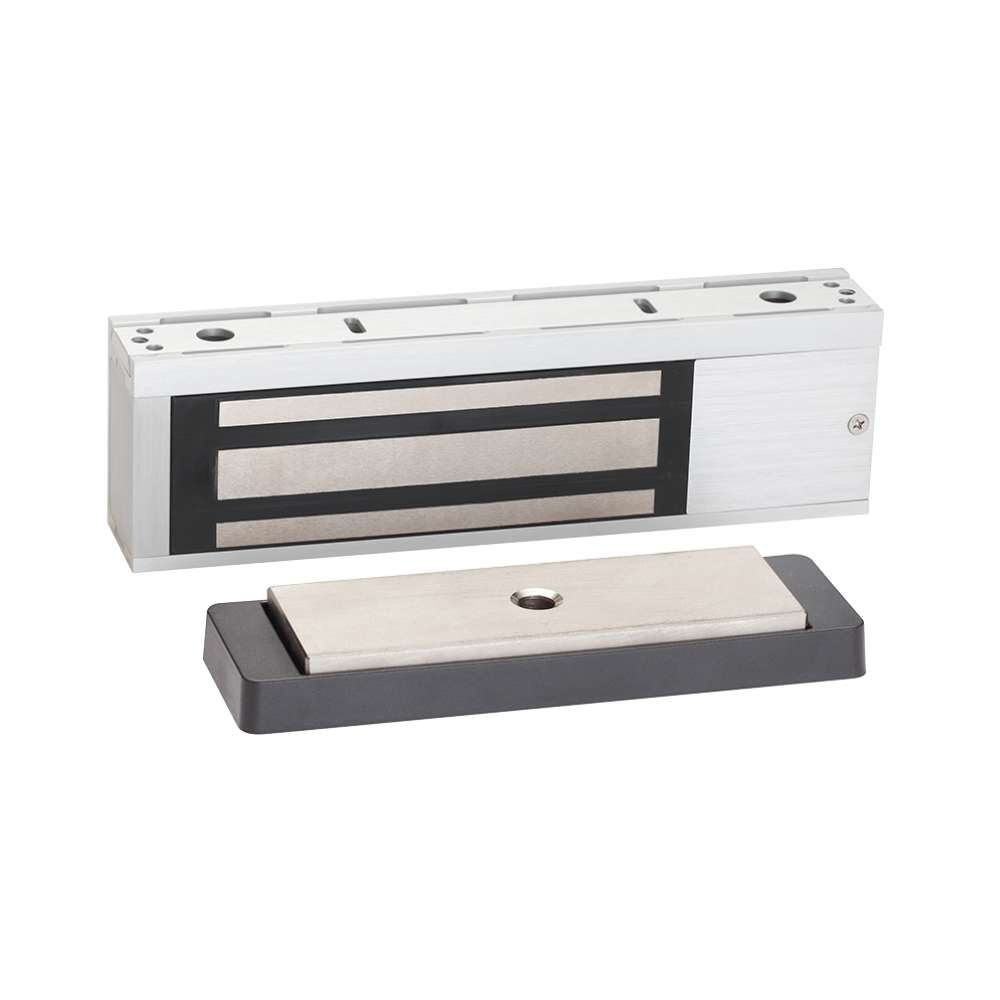

Schlage Electronics M420P Electromagnetic Lock

SKU # LN/M420P

Read Review(s) | Log in to Review

The Schlage Electronics M420P Electromagnetic Lock is an Electromagnetic Lock. The M400 Series electromagnetic locks from Schlage are designed with the customer in mind to be robust, easy-to-install, and secure. The unique bayonet mounting feature makes installation easier, allowing the installer to have their hands free during the mounting process. All M400 Series electromagnetic locks are symmetrical with field-selectable handing, allowing optimum placement of the magnet, no matter the application. They are designed to provide automatic voltage sensing for 12 and 24 volts along with polarity protection to make wiring less complex.

Features include:

  • Height - 2 1⁄2"
  • Length - 9"
  • Depth - 1 3⁄8"
  • Weight (approximate) - 6 lbs
  • 500 lb. hold force rating for traffic control applications
  • P ="Plus" models offer magnetic bond sensor (MBS), adjustable relock time delay (RTD) and door position switch (DPS)
  • Automatic voltage selection (AVS)
  • Symmetrical design with field-selectable handing for optimum placement
  • Bayonet mount simplifies installation by eliminating the need to hold lock overhead while securing
  • Armature mount pivot feature compensates for slight opening imperfections

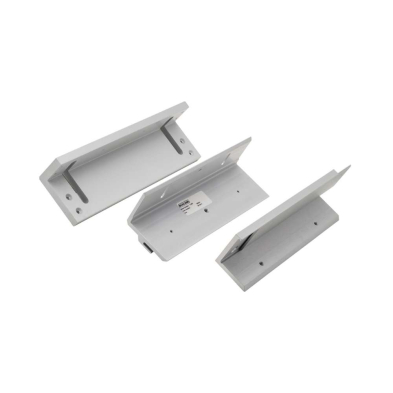

  • Optional mounting kits available for top jamb mount, double door and Herculite glass doors
  • Aluminum housing in 628 satin finish
  • ANSI/BHMA 156.23 Grade 1, UL 1034, UL 10C, UL 294, cUL, CFSM certifications
US$682.08

Description:

Description:

Schlage Electronics M420P Electromagnetic Lock


The Schlage Electronics M420P Electromagnetic Lock is a robust and versatile security solution designed to meet the demands of high-traffic applications. It is part of Schlage's M400 Series, which is renowned for its reliability and ease of installation.

Key Features and Specifications

  • Holding Force: The M420P provides a holding force of 500 pounds, ensuring high security for single outswinging doors.
  • Automatic Voltage Selection: This lock features automatic voltage sensing, allowing it to operate on both 12VDC and 24VDC, with a current draw of 750 mA at 12VDC and 380 mA at 24VDC.
  • Integrated Features: The M420P model includes several advanced features:
    • Magnetic Bond Sensor (MBS): Monitors the strength of the magnetic bond between the lock and armature, ensuring the door is securely locked.
    • Door Position Switch (DPS): Monitors whether the door is open or closed, providing real-time status updates.
    • Relocking Time Delay (RTD): Adjustable from 0.5 to 30 seconds, allowing customized security settings for various applications.
  • Bayonet Mounting: This unique feature simplifies the installation process by allowing hands-free mounting, which is especially beneficial for installers.
  • Non-Handed and Symmetrical Design: The lock can be installed in any orientation without the need for door handing adjustments, providing versatility and ease of installation.
  • Certifications: The M420P meets or exceeds several industry standards, including UL1034 burglary-resistant standards, UL10C positive pressure fire tests, and ANSI/BHMA A156.23 Grade 1 requirements.
  • Dimensions: The lock measures 9 inches in length, 2-1/2 inches in height, and 1-3/8 inches in depth.

Applications

The M420P is ideal for securing single outswinging doors in a variety of environments, such as commercial buildings, healthcare facilities, educational institutions, and government buildings. It integrates seamlessly with electronic access control systems, enhancing overall security and monitoring capabilities.
