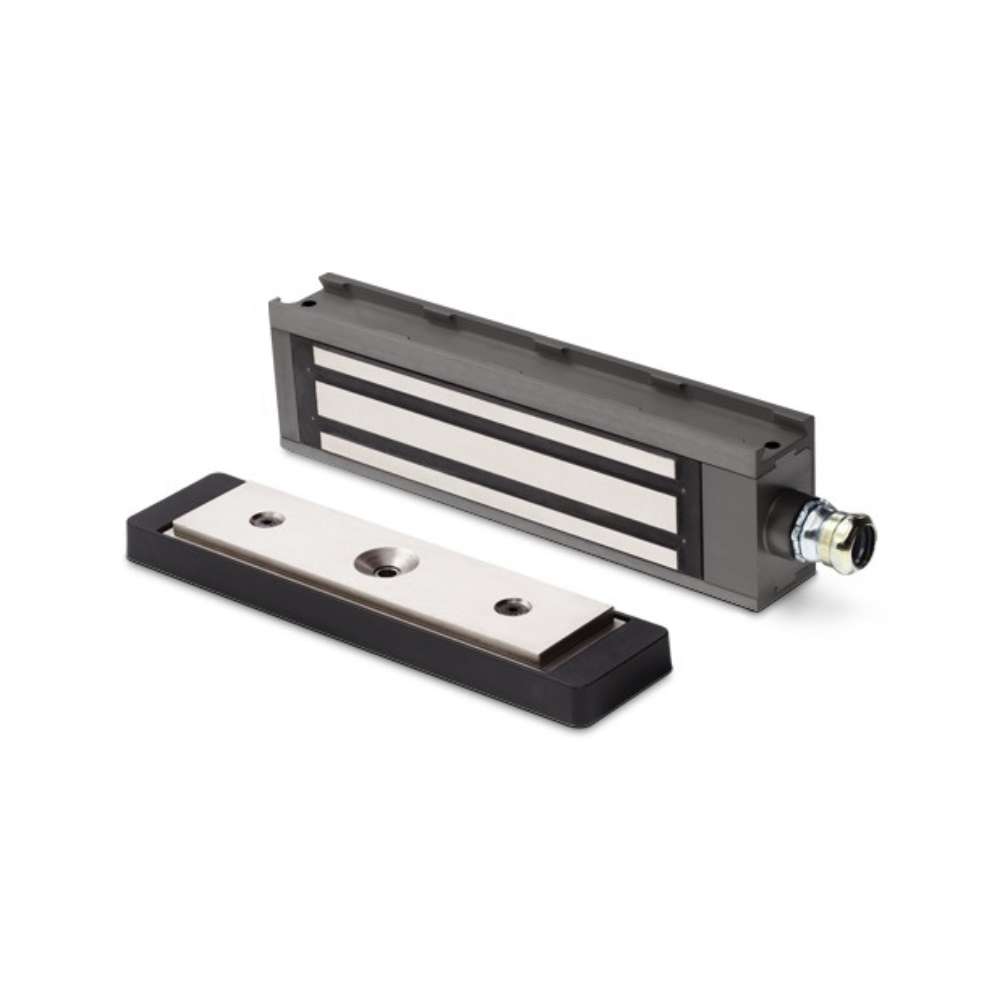

Schlage Electronics M490G Gate Electromagnetic Lock

SKU # LN/M490G

Read Review(s) | Log in to Review

The Schlage Electronics M490G Gate Electromagnetic Lock is an Electromagnetic Lock for gates. The Schlage M490G is a weather resistant electromagnetic gate lock with 1500 lbs of holding force designed for use on all types of sliding and swinging gates. As a high security magnetic lock, it can accommodate misalignment problems while supplying superior holding force.A 1⁄2" compression connector is provided for installation of 1⁄2" EMT conduit, ensuring protection of hook-up wiring from weather and vandalism. Heavy-duty plating resists corrosion of mating surfaces, providing a low maintenance locking device. A modified top jamb mounting bracket allows a single M490G to be mounted in a variety of positions. The M490G gate lock may be mounted to any gate frame or post. Special brackets may be required to adapt the lock to a particular frame or post. It is important that the lock is mounted so that the armature pulls straight back from the magnet face.

Features include:

  • Height - 3"
  • Length - 11"
  • Depth - 1 3⁄4"
  • Weight (approximate) - 14 lbs
  • 1500 lb. hold force rating
  • Gate
  • Magnetic bond sensor (MBS) and gate status monitor (DPS)
  • Field selectable 12 or 24VDC operation
  • Built-in voltage spike suppressor
  • Electroless nickel plated finish
  • Corrosion and weather resistant for exterior use
  • Universal mounting brackets for swinging or sliding gate applications
  • 1⁄2" EMT compression fitting protects hookup wires from weather and vandalism
  • Two foot wire leads
  • Accommodates gate misalignment
  • No moving parts - low maintenance
  • ANSI/BHMA 156.23 Outdoor rated
US$626.40

Description:

Description:

Schlage Electronics M490G Gate Electromagnetic Lock


The Schlage Electronics M490G Gate Electromagnetic Lock is designed for high-security applications on both sliding and swinging gates. It is part of the M400 Series, known for its robust construction and advanced security features, making it ideal for demanding outdoor environments.

Key Features and Specifications

  • Holding Force: The M490G provides a substantial holding force of 1500 pounds, ensuring strong security for gates.
  • Voltage and Power: The lock features automatic voltage selection, operating on both 12VDC and 24VDC. The current draw is 0.65A at 12VDC and 0.35A at 24VDC, making it adaptable to various power systems.
  • Weather Resistance: Designed to withstand outdoor conditions, the M490G is weather-resistant, making it suitable for use in various climates.
  • Magnetic Bond Sensor (MBS): Monitors the strength of the magnetic bond between the lock and the armature, ensuring the gate is securely locked.
  • Gate Status Monitor (DPS): Provides real-time status updates on whether the gate is open or closed.
  • Installation Features:
    • Includes a 1/2-inch compression connector for installation of 1/2-inch EMT conduit, protecting wiring from weather and vandalism.
    • Equipped with universal mounting brackets, making it suitable for various gate types and accommodating gate misalignment issues.
    • Dimensions: The lock measures 11 inches in length, 3 inches in height, and 1-3/4 inches in width, with an approximate weight of 14 pounds.
  • Durability: The lock features heavy-duty plating to resist corrosion, providing a low-maintenance, long-lasting solution.
  • Certifications: The M490G meets ANSI/BHMA A156.23 outdoor-rated standards, ensuring it meets high-security and durability requirements.

Applications

The M490G is ideal for securing both sliding and swinging gates in a variety of settings, including commercial buildings, industrial sites, and other outdoor facilities. Its robust design and weather resistance make it a reliable choice for enhancing security in demanding environments.
