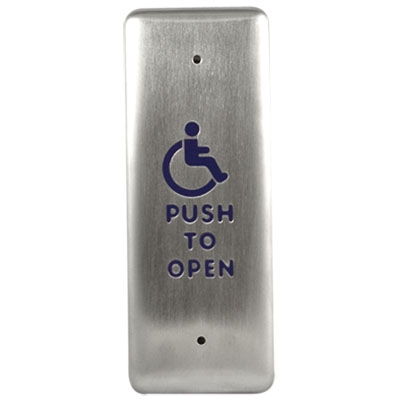

BEA 10PBJMS1 Stainless Steel Push Plate

These narrow jamb style push plates are specifically designed for guide rail applications and jamb style push plate boxes. 10PBJMS1 is 1.75" x 4.5" with blue Handicap logo and "Push to Open" text. Includes Microswitch and 4-stud touch points. Hardwired solution only when used with the corresponding Jamb Surface Mount Box 10BOXJAMBST from BEA. These compact push plates maximize accessibility while providing a sturdy, practical and effective solution for improving access to a building. They can be mounted directly to a jamb or on guide rails where wheelchair access is desired.

Made of scratch and scuff resistant, highly durable stainless steel that will not deteriorate or rust where it is touched. Features a weather boot between plate and back plate for all weather applications. Text and logo are baked onto the surface for maximum durability. Beveled edges provide a tamper and vandal proof solution. Universal touch area at any "push" location.

Product Highlights:

• Jamb style push plate designed for guide rail applications and jamb style push plate boxes
• 1.75" x 4.5" with blue Handicap logo & "Push to Open" text
• Compact design maximizes accessibility
• Can be mounted directly to a jamb or on guide rails where wheelchair access is desired
• Scratch and scuff resistant stainless steel
• Will not deteriorate or rust where it is touched
• Weather boot between plate and back plate for all weather applications
• Tamper/vandal resistant beveled edges
• Universal touch area at any "push" location
• Baked on graphics to maximize durability
• Hardwired Microswitch with 4-Stud touch points
• Hardwired solution only when used with the corresponding Jamb Surface Mount Box 10BOXJAMBST from BEA (will not accommodate a transmitter)

Technical Information:

• Faceplate Material: 16 gauge, 304 2B Stainless Steel
• Backplate Material: 1/8-inch-thick, Aluminum
• Mounting Screws: Stainless Steel
• 6-32 x 1 in & 8-32 x 1 in
• Allen Head Size: 5/64
• Microswitch: Hardwired Only
