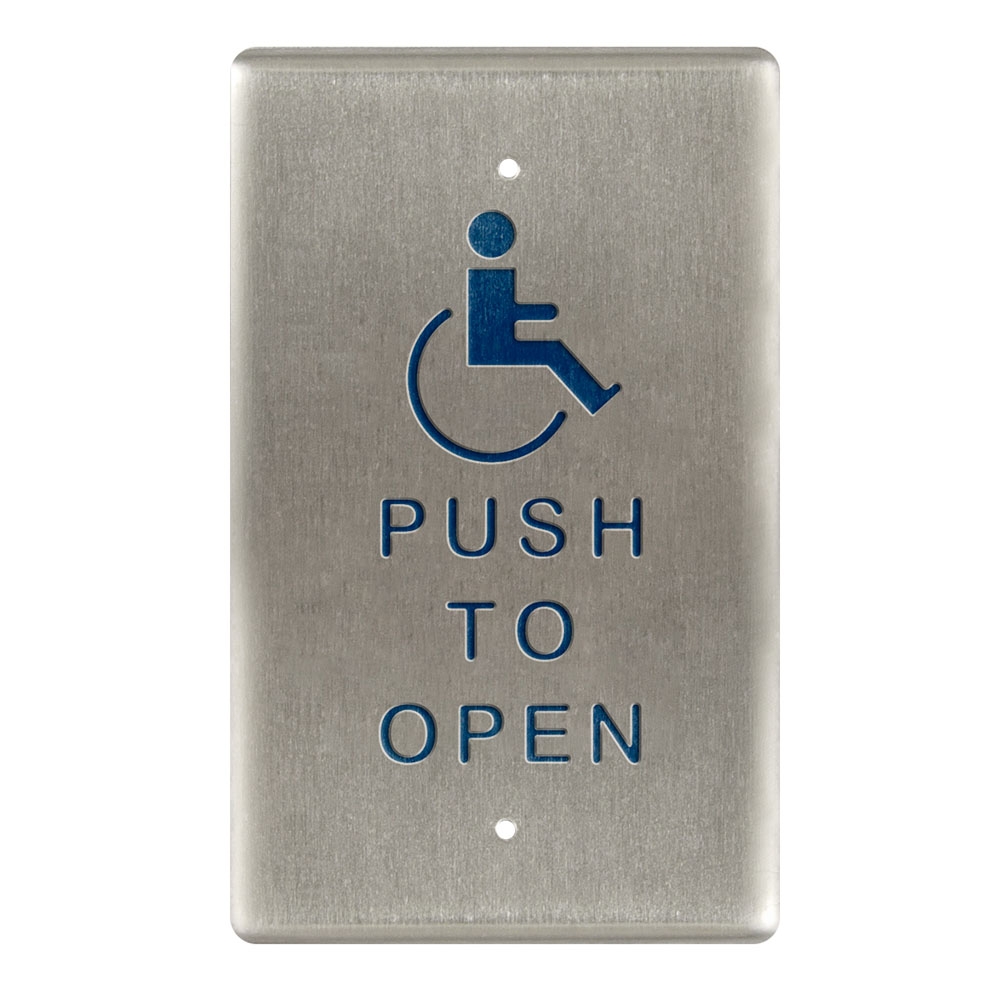

BEA 10PBO241 Stainless Steel Push Plate

The PBO24 series can be mounted with BEA's standard single gang surface mount box 10BOX24SGSM and is compatible with most standard single gang electrical boxes. Grade 304 stainless steel maximizes corrosion resistance and reduces rusting. Resistant to scratches and scuffing. Stainless steel materials are 100% recyclable and environmentally friendly. Available in hard wired and wireless options (RF 433, 390 and 300 MHz). Beveled edges provide a tamper and vandal resistant solution. Activation across the entire surface area of the push plate. Graphics are abrasive etched onto the surface to maximize durability. Standard weather boot protects the cherry switch from harsh environments.

Product Highlights:

• 2.75" x 4.5" single gang stainless steel push plate
• Blue Handicap logo & "Push to Open" text only
• Durable design and embossed graphics
• Ideal for applications that are too close to a door frame for a full size square or round push plate
• Easy installation for both new jobs and existing applications
• Can be mounted with BEA's standard single gang surface mount box 10BOX24SGSM
• Also compatible with most standard single gang electrical boxes
• Grade 304 stainless steel reduces rust and resistant to corrosion, scratches and scuffs
• Stainless steel materials are 100% recyclable and environmentally friendly
• Hardwired or wireless options include 433, 390 or 300 MHz frequencies
• Tamper/vandal resistant beveled edges
• Activation across the entire surface area of the push plate
• Abrasive etched graphics for maximum durability
• Standard weather boot protects cherry switch from harsh environments

Technical Information:

• Faceplate Material: 16 gauge, 304 2B Stainless Steel
• Backplate Material: 1/8-inch-thick, Aluminum
• Mounting Screws: Stainless Steel
• 6-32 x 1 in & 8-32 x 1 in
• Allen Head Size: 5/64
• Cherry Switch: Single-pole, 15A, COM/NO/NC, UL Recognized
• Compatible Wireless Frequencies: 900, 433 or 300 MHz
