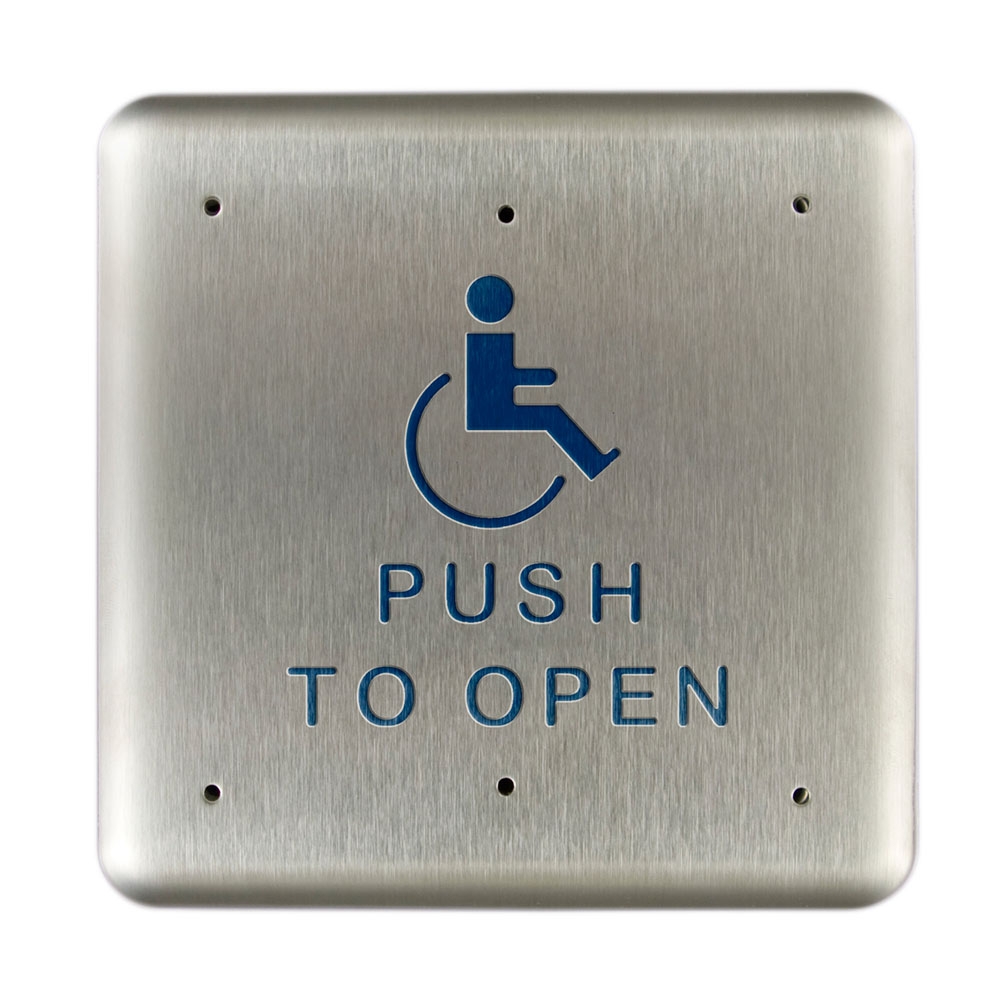

BEA 10PBS1 Stainless Steel Push Plate, 4.75 Square

The PBS series is a standard 4.75" square push plate with a premium design for wall applications. Designed to fit into standard electrical gang boxes, and/or BEA's line of plastic enclosures. Concealed fasteners to minimize vandalism. It is a functional and aesthetically pleasing plate. Durable grade 304 stainless steel for maximum resistance to corrosion and rust. Stainless steel materials are 100% recyclable and environmentally friendly. May be hard wired to the door operator or connected to BEA's line of radio controlled transmitters for wireless mounting. Compatible with 433, 390 or 300 MHz wireless frequencies. Beveled edges are less susceptible to damage by deflecting harsh impacts from any side. Stainless steel finish is scratch/scuff resistant and will not deteriorate or rust from exposure to liquids or other cleaning agents. Compatible with both surface and flush mount boxes. Graphics are abrasive etched onto the faceplate for maximum durability.

Product Highlights:

• 4.75" square push plate with blue Handicap logo & "Push to Open" text
• Grade 304 durable 1/16-inch-thick stainless steel for maximum resistance to corrosion and rust
• Stainless steel materials are 100% RECYCLABLE
• Hard wired and wireless mounting options included
• Compatible with 433, 390 or 300 MHz wireless frequencies
• Surface area is optimal for bollard and wall mount applications while not detracting from the surrounding architecture
• Activation across the entire surface area of the push plate
• Beveled edges are less susceptible to damage by deflecting harsh impacts from any side
• Scratch/scuff resistant stainless steel finish that will not deteriorate or rust from exposure to liquids or cleaning agents
• Text and graphics abrasive etched onto the faceplate for maximum durability
• ADA-compliant push plates to improve access for those with disabilities
• Seamlessly integrates with an automatic door's activation and security features
• Designed to fit into standard electrical gang boxes, and/or BEA's line of plastic enclosures
• Concealed fasteners to minimize vandalism
• Compatible with both surface and flush mount boxes
• A standard weather boot protects the cherry switch from harsh environments

Technical Information:

• Faceplate Material: 16 gauge, 304 2B Stainless Steel
• Backplate Material: 1/8-inch-thick, Aluminum
• Mounting Screws:
• Stainless Steel: 6-32 x 1 in & 8-32 x 1 in
• Allen Head Size: 5/64
• Cherry Switch: Single-pole, 15A, COM/NO/NC, UL Recognized
• Compatible Wireless Frequencies: 900, 433 or 300 MHz
