Technical Information:
Frequency: 433 MHz
Emitted Radio Power: -28.7 dBm (TX)
Power Consumption: 3mA (TX) 30mA (RX)
Input Voltage: 12 to 24 VAC/DC (RX)
Contact Rating:
1.0 A @ 30 VDC
0.5 A @ 125 VAC
0.3 A @60 VDC
Operating Temperature: 14˚F to 131˚F (-10˚C to 55˚C)
Max No. of Programmed Units Per Receiver: 100 Transmitters
Receiver Learn: RED
Relay Activation: BLUE
Range:
Clear Line Of Sight: 100 feet
Outside To Inside (Through A Building): 10-20 feet
Dimensions:
Transmitter: 2 3/4" x 1 3/8" x 9/16 (70mm x 35mm x 14mm)

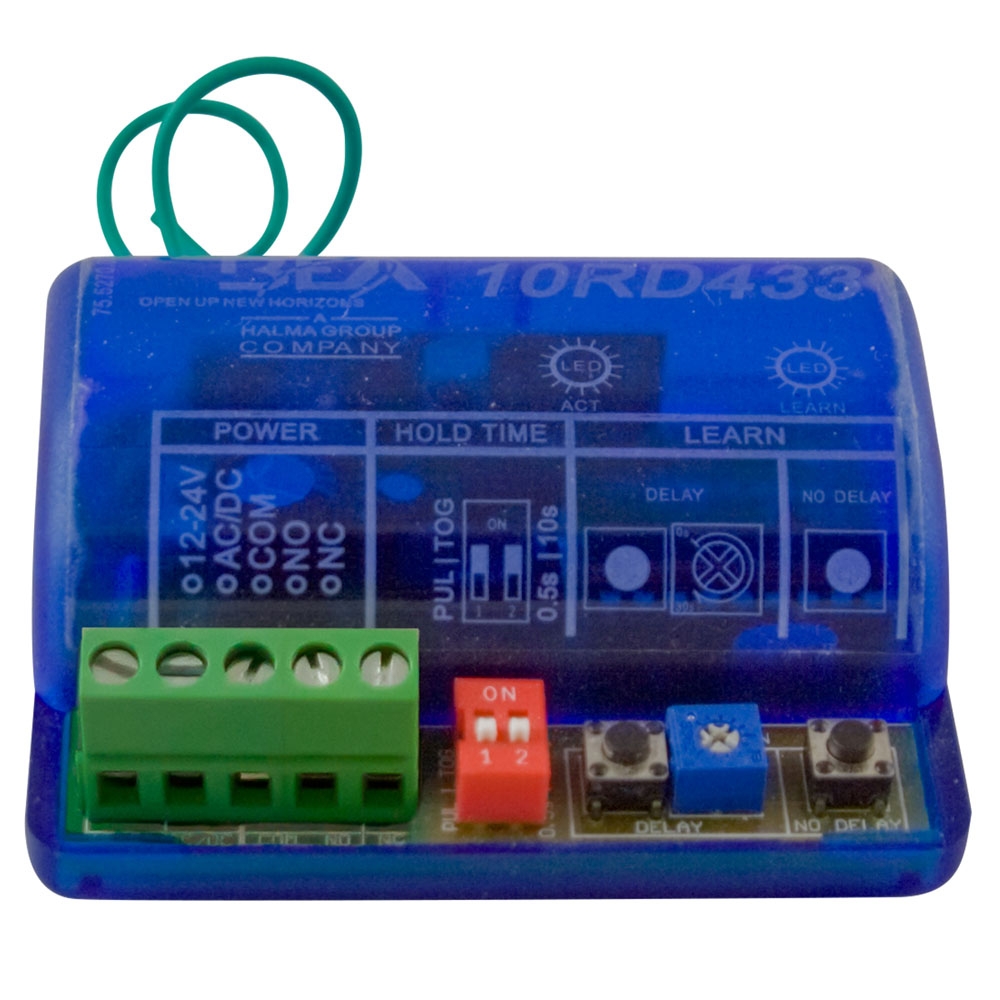

Receiver: 2 3/4" x 2 1/8" x 1" (70mm x 55mm x 25mm)
Certifications: FCC, IC,
