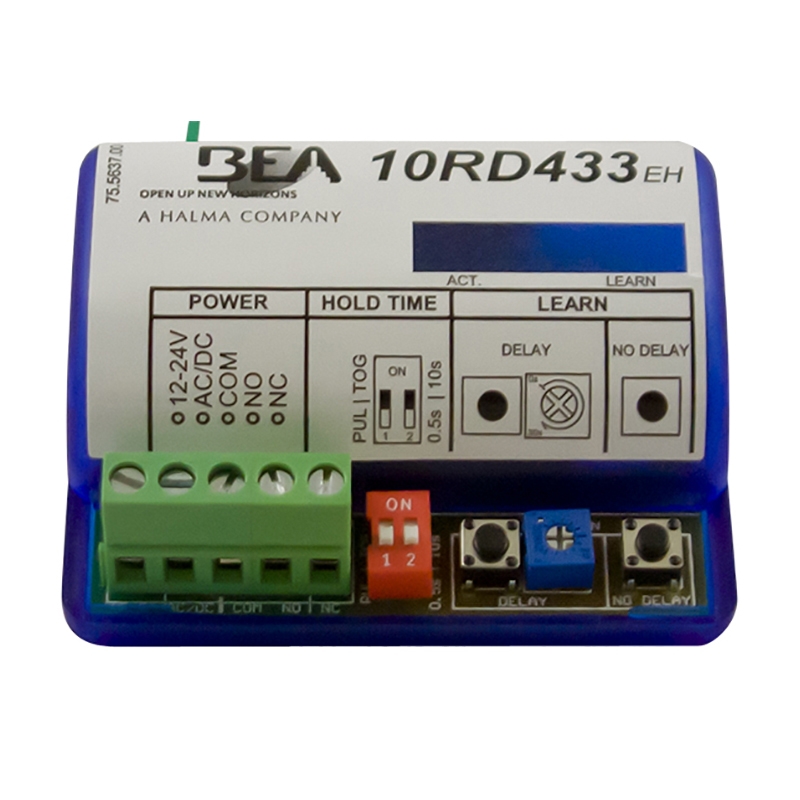

BEA 10RD433EH 433 Mhz Digital Receiver

SKU # BI/10RD433EH

Read Review(s) | Log in to Review

BEA 10RD433EH 433 Mhz Digital Receiver

The BEA 10RD433EH 433 Mhz Digital Receiver, 12 To 24 V Ac/Dc is a 433 MHz receiver module with extended hold time. Up to 100 transmitters can be programmed into a single receiver.

This item includes:

  • Extended hold time receiver will hold door open for as long as button is pressed
  • 100 transmitters per each receiver
  • 433 MHz receiver module
  • 12 To 24 V Ac/Dc
US$47.84

Description:

Description:

Technical Information:

Frequency: 433 MHz
Emitted Radio Power: -28.7 dBm (TX)
Power Consumption: 3mA (TX) 30mA (RX)
Input Voltage: 12 to 24 VAC/DC (RX)

Contact Rating:
1.0 A @ 30 VDC
0.5 A @ 125 VAC
0.3 A @ 60 VDC
Operating Temperature: 14˚ F to 131˚ F (-10˚ C to 55˚ C)
Max No. of Programmed Units Per Receiver: 100 Transmitters

Receiver Learn: RED
Relay Activation: BLUE

Dimensions:

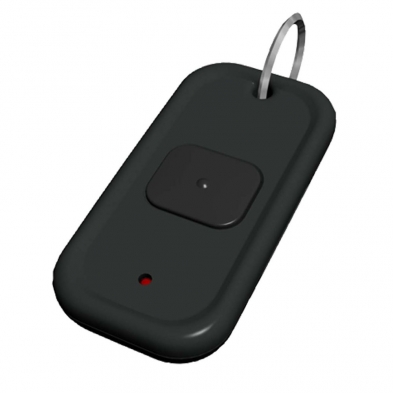

Transmitter: 2 3/4" x 1 3/8" x 9/16" (70mm x 35mm x 14mm)
Receiver: 2 3/4" x 2 1/8" x 1" (70mm x 55mm x 25mm)
Certifications: FCC, IC
