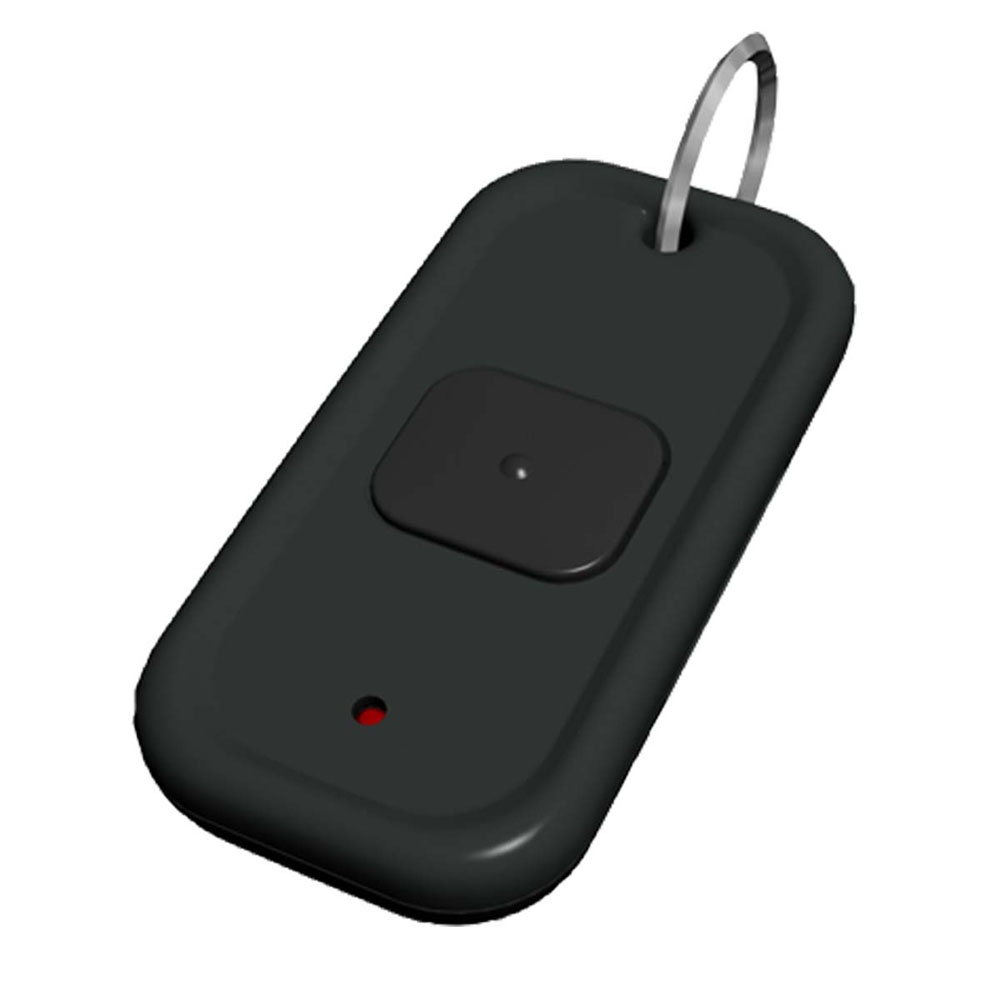

Get the BEA 433 MHz Series of transmitters/receivers from North Shore Commercial Door. The 10TD433HH1 is a 1-button, hand-held wireless transmitter that transmits a unique rolling code each time the switch is closed to provide a secure door opening signal. The 10TD433HH1 transmitter is compatible with the 10RD433 and 10RD433EH receivers by BEA.
The 433 MHz Series is ideal for wireless activation and/or sequencing of automatic doors. These digital, radio-controlled transmitters and receivers are universally compatible with any type of automatic door application. Program up to 100 transmitters into a single receiver. Transmitter codes can be removed individually or all at once. The 433 MHz series features delay or no delay programming options for vestibule applications. Toggle or pulse mode is selectable by DIP switch. Choose 0.5 or 10 second relay hold time. The 433 MHz series is reliable and efficient.
Technical Information:
- Frequency: 433 MHz
- Emitted Radio Power: -28.7 dBm (TX)
- Power Consumption: 3mA (TX) 30mA (RX)
- Input Voltage: 12 to 24 VAC/DC (RX)
Contact Rating:
1.0 A @ 30 VDC
0.5 A @ 125 VAC
0.3 A @ 60 VDC
Operating Temperature: 14˚ F to 131˚ F (-10˚ C to 55˚ C)
Max No. of Programmed Units Per Receiver: 100 Transmitters
LEDs:
Receiver Learn: RED
Relay Activation: BLUE
Dimensions:
Transmitter: 2 3/4" x 1 3/8" x 9/16" (70mm x 35mm x 14mm)
Receiver: 2 3/4" x 2 1/8" x 1" (70mm x 55mm x 25mm)
Certifications: FCC, IC
