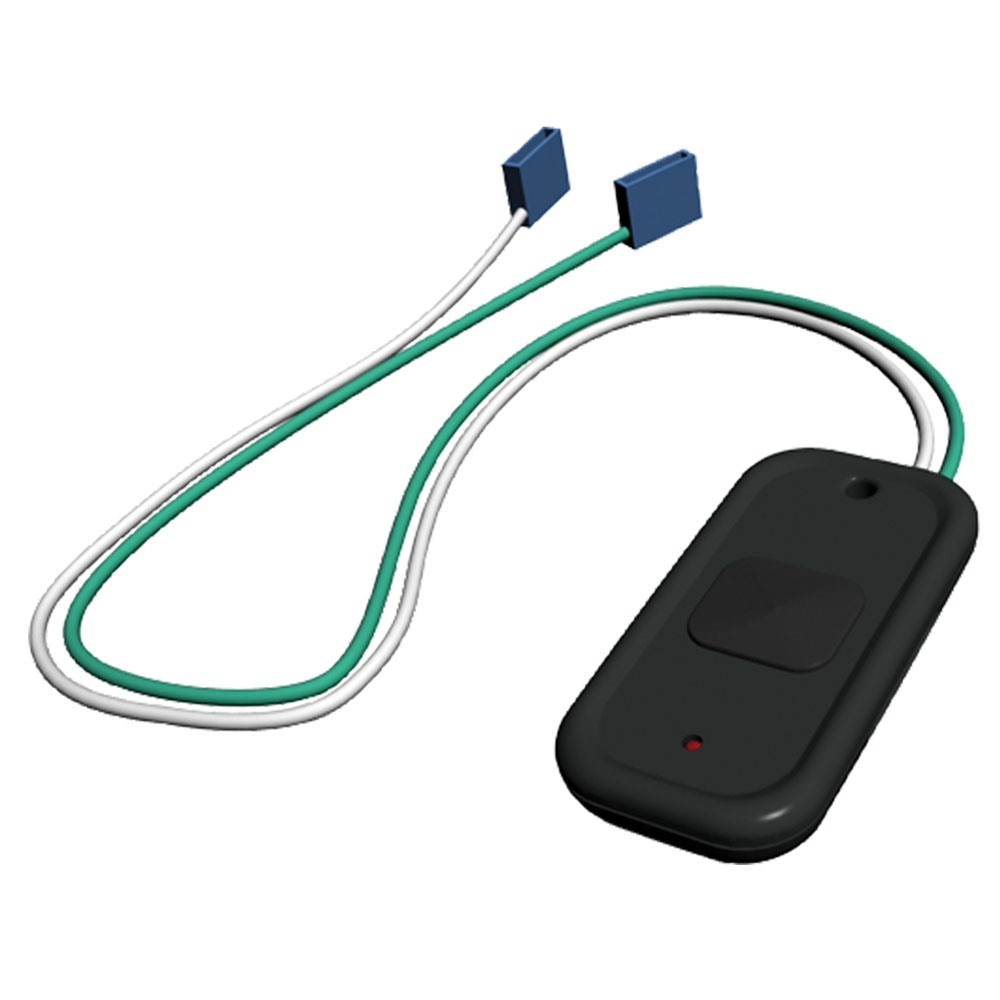

The BEA 433 MHz Series of transmitters/receivers is ready to ship from North Shore Commercial Door. The 10TD433PB3V transmitter is a 1-button, hard-wired, digital transmitter w/flag connectors that is powered by a 3-volt lithium "button" battery. 10TD433PB3V transmits a unique rolling code each time the transmitter is activated to ensure a secure signal. Internal LED light signals activation. the 10TD433PB3V transmitter replaces the model 10TD43312V transmitter. Compatible with all automatic door 'remote' applications.
This transmitter is recommended for use with the BEA Dual Vestibule Push Plates model 10PBDGP1. Two 10TD433PB3V transmitters required for use with 10PBDGP1. Model 10TD433PB3V transmitter is compatible with the 10RD433 Digital Receiver by BEA.
The 433 MHz Series is ideal for wireless activation and/or sequencing of automatic doors. These digital, radio-controlled transmitters and receivers are universally compatible with any type of automatic door application. Program up to 100 transmitters into a single receiver. Transmitter codes can be removed individually or all at once. The 433 MHz series features delay or no delay programming options for vestibule applications. Toggle or pulse mode is selectable by DIP switch. Choose 0.5 or 10 second relay hold time. The 433 MHz series is reliable and efficient.
***Please note: This transmitter is not compatible with 10BOXJAMBST Jamb Style Surface Mount Box by BEA.
- Recommended for use with BEA 10PBDGP1 Dual Vestibule Push Plates
- Two 10TD433PB3V transmitters required for use with 10PBDGP1
- Compatible with the 10RD433 Digital Receiver by BEA
- Not compatible with 10BOXJAMBST Jamb Style Surface Mount Box by BEA
- Ideal for wireless activation and/or sequencing of automatic doors
- Program up to 100 transmitters into a single receiver
- Transmitter codes can be removed individually or all at once
- Delay or no delay programming options for vestibule applications
- Select toggle or pulse mode by DIP switch
- 0.5 or 10 second relay hold time
Technical Information:
Frequency: 433 MHz
Emitted Radio Power: -28.7 dBm (TX)
Power Consumption: 3mA (TX) 30mA (RX)
Input Voltage: 12 to 24 VAC/DC (RX)
Contact Rating:
- 1.0 A @ 30 VDC
- 0.5 A @ 125 VAC
- 0.3 A @ 60 VDC
Operating Temperature: 14˚ F to 131˚ F (-10˚ C to 55˚ C)
Max No. of Programmed Units Per Receiver: 100 Transmitters
Receiver Learn: RED
Relay Activation: BLUE
Dimensions:
Transmitter: 2 3/4" x 1 3/8" x 9/16" (70mm x 35mm x 14mm)
Receiver: 2 3/4" x 2 1/8" x 1" (70mm x 55mm x 25mm)
Certifications: FCC, IC
