BEA’s 900 MHZ FAMILY compact transmitters and receiver allow wireless activation of any door control. FCC Part 15 certification ensures proper compliance with federal radio frequency regulations.
900 MHz wireless technology provides greater line-of-sight transmission distance than legacy wireless frequencies. It also provides better penetration of obstacles such as walls, partitions, doors or low-emissivity glass.
BEA’s 900 MHZ FAMILY series of wireless devices includes the touchless retrofit transmitter for easy upgrade of touch push plates to touchless solutions, which typically require additional wires to be run for installation.
The 900 MHZ FAMILY industrial series offers a line of IP65 rated hand-held transmitters, ideal for industrial environments. This family also has a convenient beltclip accessory.
TECH
- Frequency 908-918 MHz
- Emitted radio power: -25 dBm (TX)
- Radio Control Type Emitted Radio Power Digital
- Power Consumption: Standard 30mA (TX) 40mA (RX); Industrial 13mA (TX) 40 mA (RX);
- Retrofit 22mA; Universal 30mA
- Supply Voltage 12 – 24 VAC / VDC
- Contact Rating 1.0 A @ 30 VDC 0.3 A @ 60 VDC 0.5 A @ 125 VAC
- Operating Temperature
- Transmitter Capacity (per receiver)|| Programmable (standard): 75 | Universal: unlimited
Dimensions

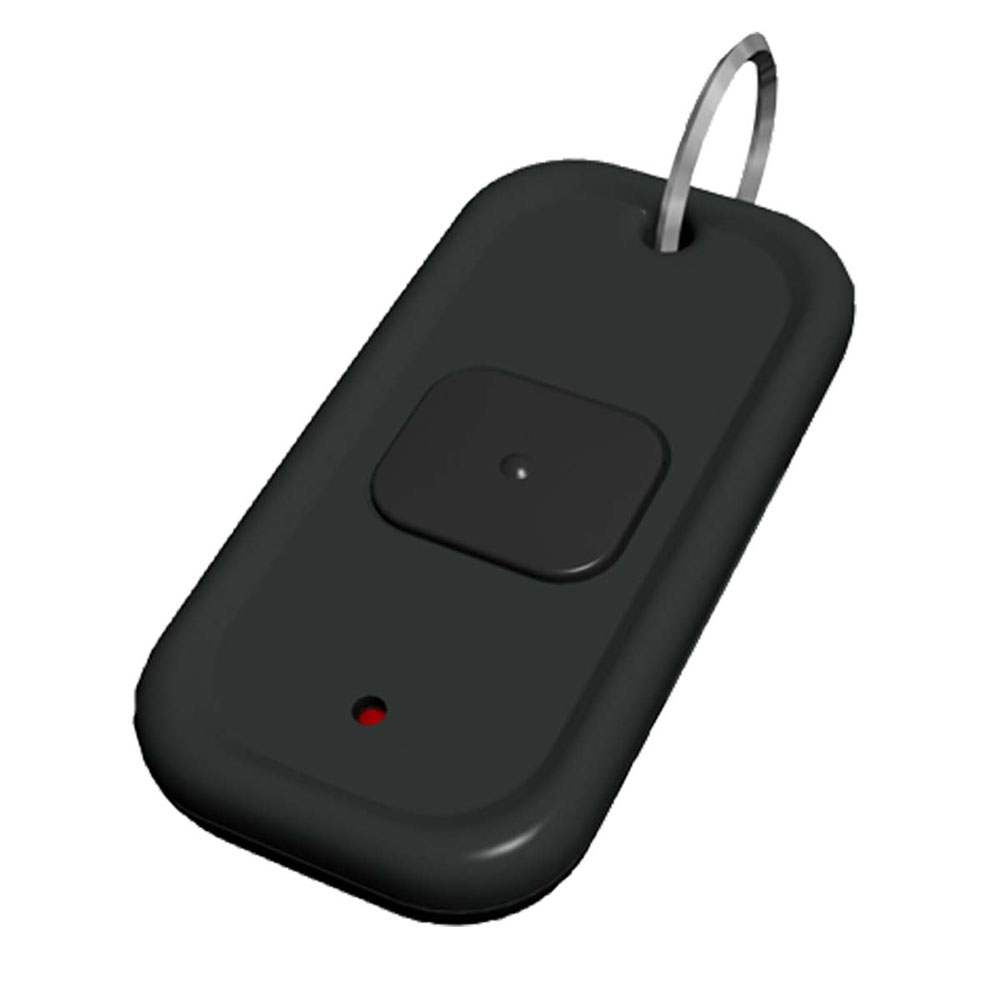

- Standard Hand-Held: 2.75” (W) x 1.38” (D) x 0.56”
- (H) Standard Push-Plate Transmitter: 1.75” (W) x 1.0” (D) x 0.3” (H)
- Industrial Hand-Held: 1.5” (W) x 3.0” (D) x 0.5” (H)
- Retrofit: 1.72” (W) x 1.06” (D) x 0.32” (H)
Signal Strength Indicator
Multi-color LEDs on receiver provide installer with visual notification of signal strength and activation status
Consistent Transmission
Frequency hopping allows consistent transmission in areas with other 900 MHz devices
Enhances Accessibility
Offers a means of activation for those with limited mobility or disabilities
Variety Of Accessories
1, 2, 3, and 4 button handheld transmitters provide flexibility where multiple receivers are used
Extended Hold Functionality
Extended hold and toggle/pulse functionality is integrated for various application needs
Learn Modes
Delay and no-delay learn modes provide either instant or delayed activation for the sequencing of doors
