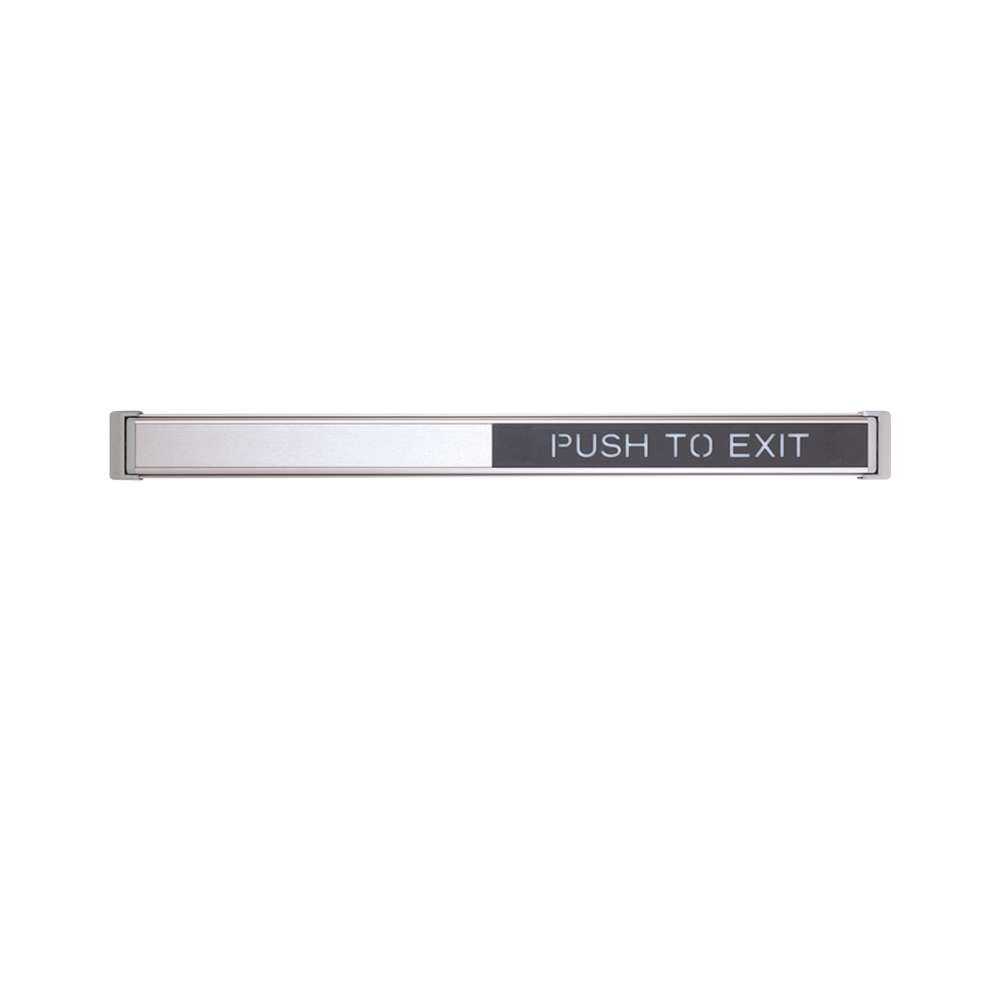

Schlage Electronics 672-36-628-RD Touch Bar Request-to-Exit (REX) Device
The Schlage Electronics 672-36-628-RD Touch Bar Request-to-Exit (REX) Device is an efficient and durable solution for secure egress in various commercial settings. This device is specifically designed to release electromagnetic or electronic locks when the bar is depressed, making it an ideal choice for controlled exits.
Key Features:
- Design and Functionality: The 672 Touch Bar features a clear "PUSH TO EXIT" signage with red lettering, providing an obvious exit indication for building occupants. The signage is also field-reversible, allowing for flexible installation configurations.
- Durable Construction: It is constructed with a heavy-duty aluminum extrusion and powder-coated cast metal end caps, ensuring maximum durability and resistance to wear and tear. The device also features a low profile (2 1/4 inches), providing ample clearance through the door.
- Activation Mechanism: The new pivoting bar design allows for a 1/4" bar movement to activate the release mechanism immediately, enhancing the responsiveness and safety of the exit.
- Electrical Specifications: The device operates on an input voltage of 12 or 24 VDC with a maximum current draw of 0.25 amps. It includes SPDT contacts rated at 3 amps at 30 VDC and 6 amps at 125-250 VAC.
- Ease of Installation: Designed for straightforward installation, the 672 Touch Bar includes quick-install brackets and a universal mounting system that works with aluminum, hollow metal, and wood doors. It comes with a 3-conductor cable (20 AWG, 6 ft. long) for easy wiring.
- Finish: The model 672-36-628-RD comes in a satin aluminum clear anodized finish, ensuring both aesthetic appeal and durability.
