Schlage Electronics 7764 Magnetic Door Position Switch

Schlage Electronics 7764 Magnetic Door Position Switch

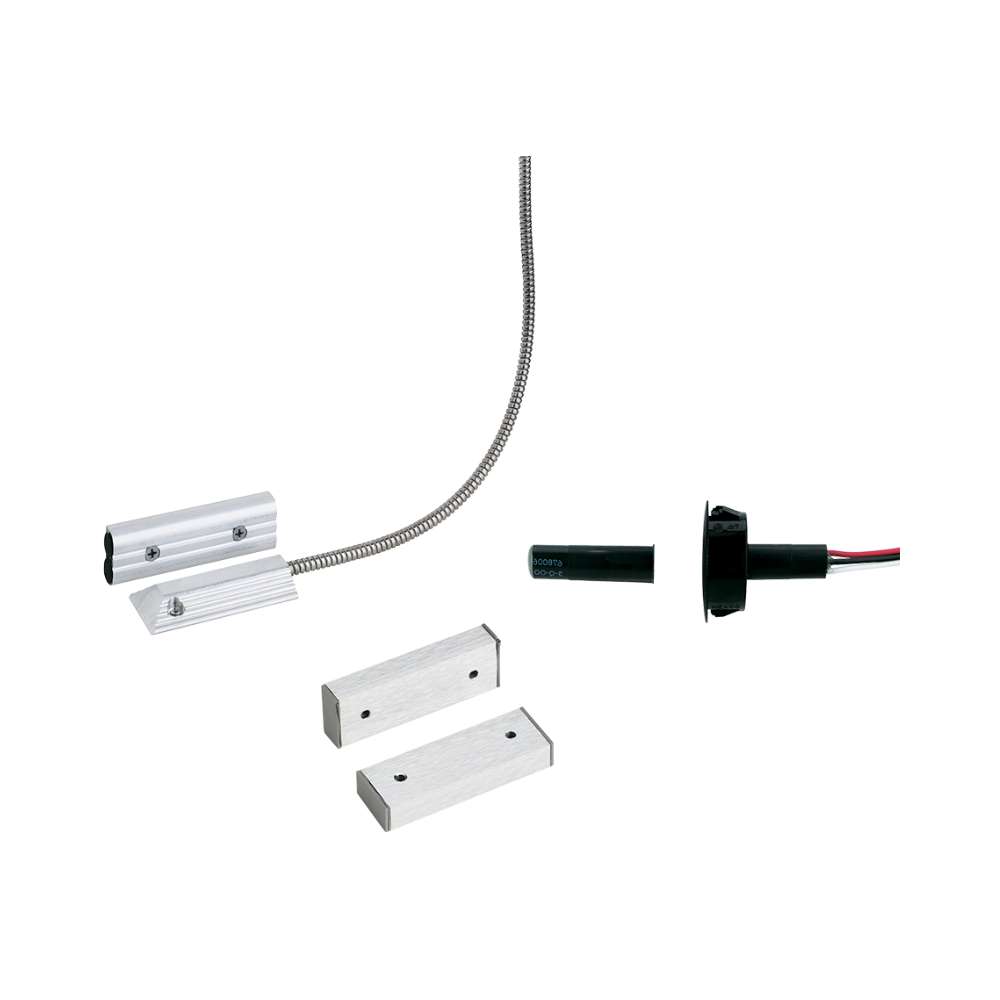

The Schlage Electronics 7764 Magnetic Door Position Switch is a robust and versatile solution for monitoring the status of doors. Here are the key features and specifications:

1. Concealed Flush Mount Design: The 7764 switch is designed to be concealed within the door frame, providing a clean and unobtrusive appearance. This makes it suitable for high-security applications where tampering needs to be minimized.

2. SPDT Contacts: It features Single Pole Double Throw (SPDT) contacts, which can reliably detect the open or closed status of doors and transmit this information to a control panel. This ensures accurate monitoring and control in access management systems.

3. Compatibility: The switch is compatible with aluminum, wood, and hollow metal doors, offering flexibility for various installation environments.

4. Electrical Specifications: It operates at a maximum current of 0.25 amps at 30 VDC, making it suitable for low-voltage applications.

5. Standards Compliance: The 7764 is UL10C and CAN-ULC-S104 listed, ensuring it meets stringent safety and performance standards.

6. Application: Ideal for use in monitoring door positions, roof hatches, gates, and other openings. It is designed to send the status of these openings to a control panel, providing vital information for security systems.

Downloadable Resources:

• Allegion Electronic Access Catalog

• Schlage 7764 Installation Sheet
